I Safe Mobile Is-mcth1.1 Multi Charger For Is-th1xx.1 User Manual

Document No. 1040MM03REV00
Version: 2021-11-26
(c) 2021 i.safe MOBILE GmbH
i.safe MOBILE GmbH
i_Park Tauberfranken 10
97922 Lauda-Koenigshofen
Germany
Tel. +49 9343 60148-0
[email protected]
www.isafe-mobile.com

INTRODUCTION

This document contains information and safety regulations that are to be observed without fail for the safe operation of the device IS-MCTH1.1 under the described conditions. Non-observance of this information and instructions can have serious consequences and/or may violate regulations.
Please read the manual and these safety instructions before using the device. In case of any doubt, the German version shall apply.
The current EU declaration of conformity, certificates, safety instructions, and manuals can be found at www.isafe-mobile.com or requested from i.safe MOBILE GmbH.

RESERVATION

The content of this document is presented as it currently exists. i.safe MOBILE GmbH does not provide any explicit or tacit guarantee for the accuracy or completeness of the content of this document, including, but not restricted to, the tacit guarantee of market suitability or fitness for a specific purpose unless applicable laws or court decisions make liability mandatory.
i.safe MOBILE GmbH reserves the right to make changes to this document or to withdraw it any time without prior notice. Technical Data is subject to change without notice. Changes, errors, and misprints may not be used as a basis for any claim for damages. All rights reserved.
i.safe MOBILE GmbH cannot be held responsible for any data or other loss and direct or indirect damages caused by any improper use of this device.

EU-DECLARATION OF CONFORMITY

The EU declaration of conformity can be found at the end of this manual.

FAULTS AND DAMAGES

If there is any reason to suspect that the safety of the device has been compromised, it must be withdrawn from use immediately. Measures must be taken to prevent any accidental restarting of the device. The safety of the device may be compromised, if, for example:
Malfunctions occur.
The housing of the device shows damage.
The device has been exposed to excessive loads.
The device has been stored improperly.
Markings or labels on the device are illegible.
We recommend that a device displaying errors or in which an error is suspected be sent back to i.safe MOBILE GmbH to be checked.

EX-RELEVANT SAFETY REGULATIONS

Use of this Multi-Charger assumes that the operator observes the conventional safety regulations and has read and understood manual and safety instructions. The following safety regulations must also be complied with:
The Multi-Charger may only be used outside ex-hazardous areas.
The Multi-Charger may only be used to charge the i.safe MOBILE IS530.x series connected
with the IS-TH1xx.x.
The Multi-Charger may be used only at temperatures between +5 °C to +35 °C.
Only accessories approved by i.safe MOBILE GmbH may be used.
Allowed Multi-Charger/IS-TH1xx.x combinations

FURTHER SAFETY ADVICE

Use the device under dry indoor conditions only.
Do not put the device in environments with excessive temperatures.
Do not use the device near any flammable or explosive substances.
Do not use the device in environments with much dust or humidity.
The device may only be used at ambient temperatures between +5 °C to +35 °C.
Do not use the device in areas where regulations or legislation prohibit the use.
Do not expose the device or charger to strong magnetic fields, such as are emitted from induction ovens or microwaves.
Do not attempt to open or repair the device.
Improper repair or opening can lead to the destruction of the device, fire, or explosion.
Only authorized personnel are allowed to repair the device.
Only use accessories approved by i.safe MOBILE GmbH.
Please power off the device and disconnect the power cable before cleaning the device.
Do not use any chemical cleaning agents to clean the device or the charger. Use a damp and anti-static soft cloth for cleaning.

MAINTENANCE/REPAIR

Please note any legal requirements for periodic inspection.
The device itself has no user-serviceable parts. It is recommended to perform inspections according to the safety regulations and advice. If there is a problem with the device,  please contact your vendor or consult the service center. If your device is in need of repair, you can either contact the service center or your vendor.

 CHARGING

Connect the delivered power cable with the Multi-Charger IS-MCTH1.1.
Insert the power cable into an AC power socket.
The Multi-Charger IS-MCTH1.1 is equipped with an indicator LED.
The following colors are used:
GREENStandby or end of charge
RED Charging

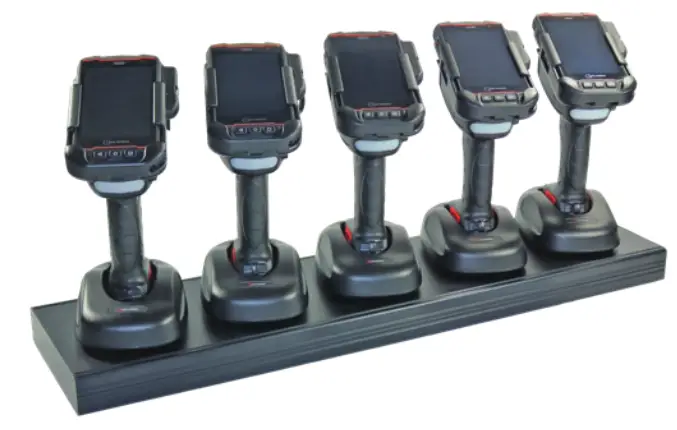

To charge the IS530.x, put the IS-TH1xx.x connected with the smartphone into the Multi-Charger IS-MCTH1.1.
When the battery is fully charged, the indicator LED of the Multi-Charger IS-MCTH1.1 is switching to green.

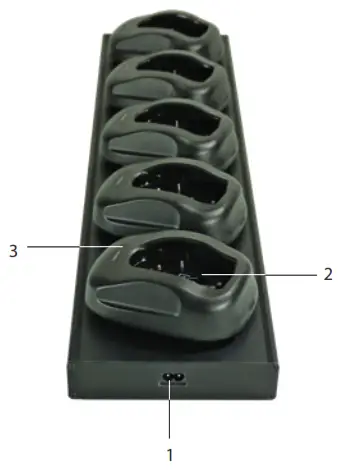

PRODUCT DESCRIPTION

1 Power cable connection
2 Charging slot
3Indicator LED

TROUBLESHOOTING

If problems occur, please contact your vendor or i.safe MOBILE GmbH directly.

RECYCLING

The crossed-out wheeled bin symbol on your product, battery, literature, or packaging reminds you that all electrical and electronic products, batteries, and accumulators must be taken to separate collection at the end of their working life. This requirement applies to the European Union. Do not dispose of these products as unsorted municipal waste.
Always return your used electronic products, batteries, and packaging materials to dedicated collection points. This way you help prevent uncontrolled waste disposal and promote the recycling of materials.
More detailed information is available from the product retailer, local waste authorities, national producer responsibility organizations, or your local i.safe MOBILE GmbH representative.

EU-DECLARATION OF CONFORMITY

EU – Declaration of Conformity

according to directive 2014/35/EU, 2014/30/EU, and 2011/65/EU (2015/863/EU)

The company i.safe MOBILE GmbH declares under its sole responsibility that the product to which this declaration relates is in accordance with the provisions of the following  data, directives, and standards:

Name & address of the manufacturer in the EU	i.safe MOBILE GmbH i_Park Tauberfranken 10 97922 Lauda – Koenigshofen, Germany
Description of the device	Multicharger type : IS-MCTH1.1 model : MCTHA01
Conformity statement 2014/35/EU Applied harmonized standards	EN 62368-1:2014+A11:2017
Conformity statement 2014/30/EU Applied harmonized standards	EN 55032: 2012 EN 55024: 2010 + A1:2015 EN61000-3-2:2014; EN61000-3-3:2013
Conformity statement 2011/65/EU amending 2015/863/EUApplied harmonized standards	IEC 62321-1:2008
CE Marking

Lauda – Koenigshofen 18.11.2020

Dirk Amann
Managing Director

CONTACT/SERVICE CENTRE

FOR FURTHER QUESTIONS PLEASE CONTACT OUR SERVICE CENTRE:
i.safe MOBILE GmbH, i_Park Tauberfranken 10, 97922 Lauda-Koenigshofen, Germany
[email protected]
https://support.isafe-mobile.com

TRADEMARKS

i.safe MOBILE and the i.safe MOBILE logo are registered trademarks of the i.safe MOBILE GmbH.
All other trademarks and copyrights are the properties of their respective owners.

WWW.ISAFE-MOBILE.COM
