Light Wireless Speaker
User Manual
What’s included
- Speaker*1
- USB charging cable*1
- Manual*1

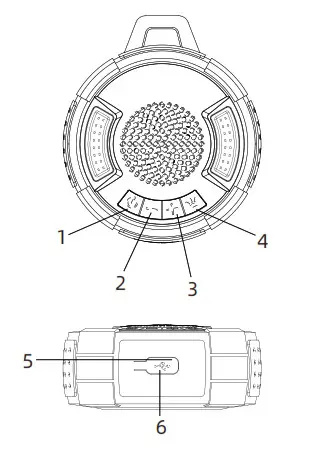

Product overview
- Power bu on
- Volume -/ Previous track
- Volume + / Next track
- Light bu on
- LED Indicator
- Micro USB input
Specifications
| Model | Sl469 |
| Item No | 20581 |
| Input | DC 5V/1A |
| Bluetooth range | 10m |
| Playtime | 5 hours in max. volume |
| Battery Capacity | 3.7V/1800mAh |
| Charging time | 2.5 hours |
| Speaker power | 5W |
Function instruction
| Power ON/OFF | Long press the power button |
| Light ON/OFF | Short press Light button sequentially to enable the “High lightness” “Low lightness” Flash”“ Lantern off” |
| Next/Previous track | Short press the Next/Previous button |
| Volume up/down | Long press the Volume -/+ button |
| LED indicator | |
| Charging | Red |
| Fully charged | Red off |
| Pairing | Flash blue |
| Paired | Solid blue |
Operation instruction
- Charging the speaker: Charge the speaker with a Micro USB cable The LED indicator will light red during charging and turned off in fully charged. Do not charge overnight
- Pairing *Long press the power button to turn on the speaker, the Bluetooth LED indicator will flash blue *Turn on the Bluetooth function on a mobile device, select “25081” pairing name, the blue LED will light solid if it is successfully paired *Speaker will automatically pair if the mobile device has been paired before *Long press the Power button to turn off the speaker
- Light: Short press the Light button sequentially to enable the High lightness, Low lightness, Flash, Light off
Warning
- Don’t wash the speaker with water, only use a cloth to clean it
- Don’t disassemble the repair the speaker by yourself
- Don’t put the speaker in the disinfection cabinet for sterilizing
- Don’t through it away randomly since it has a battery, please put it into battery recycling trash can
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment.
This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement:
The device has been evaluated to meet general RF exposure requirements.
The device can be used in the portable exposure condition with restriction
FCC ID: 2ABHA0091
Made in China
220*90mm 105g
