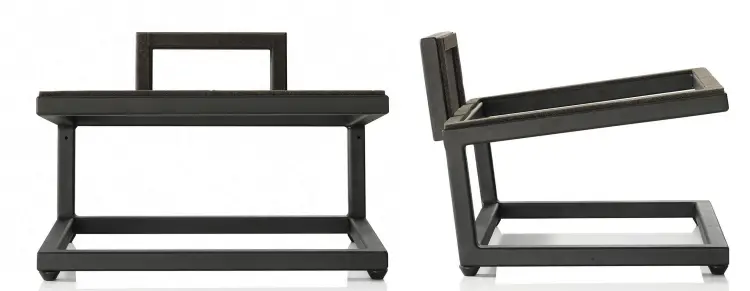

JBL JS-120 Loudspeaker Stand

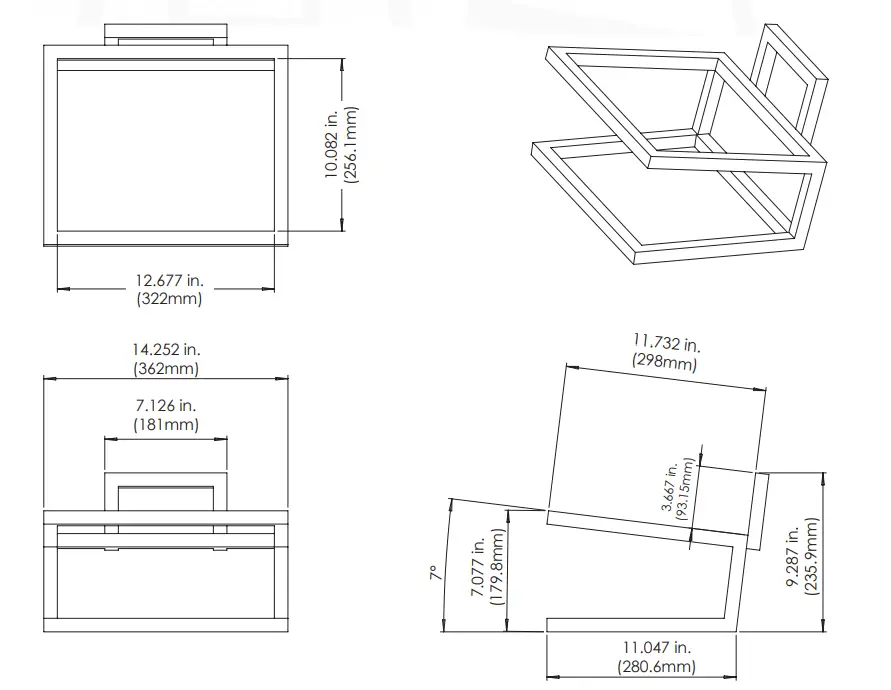

DIMISIONFeatures

• Designed for the L100 Classic
• Also supports the original L100, L100A, L100 Century, 4312E, 4312SE, 4312G and 4319
• 4 rubber-tipped floor feet are included
• Packed and sold in pairs
• Metal construction with black finish

Specifications

• Rear Height (bottom of speaker): 5.65″ (143.4mm)
• Rear Riser Height: 9.29″ (235.9mm)
• Rear Height (including riser): 9.29″
• Front Height (bottom of speaker): 7.075″ (179.7mm)
• Tilt-back angle: 7 degrees
  NOTE: Feet are adjustable in height

JS-120 LOUDSPEAKER STAND ASSEMBLY INSTRUCTIONS

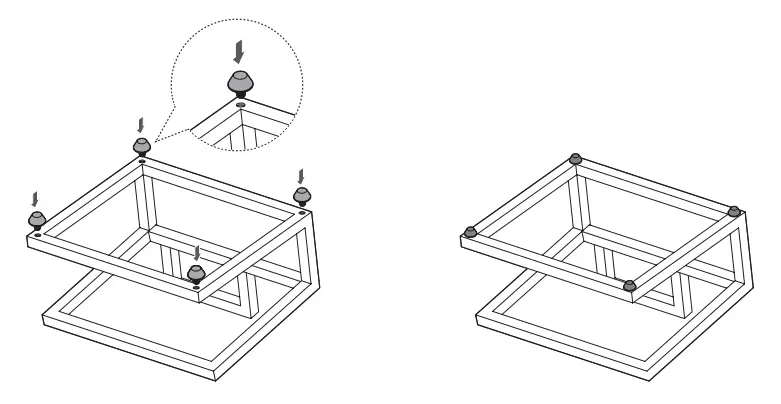

1.  Locate the parts (packed with the stand) that contains 4 pieces of rubber feet. Place the stand upside down and install the bottom base with rubber feet as shown below. Tighten the rubber feet in clockwise direction.

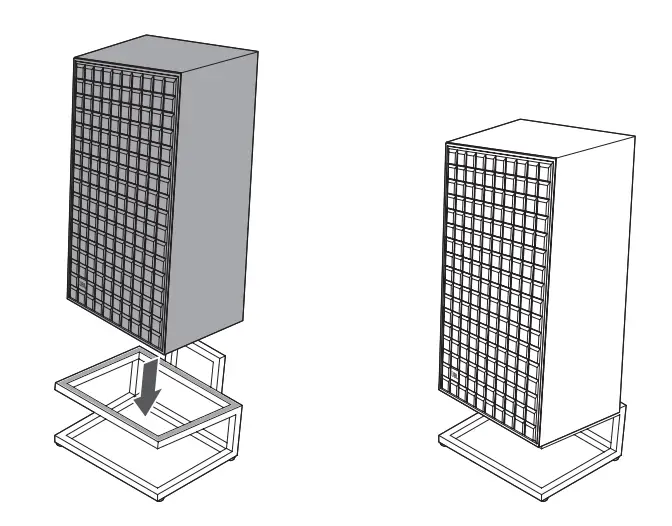

2. Place your loudspeaker as shown.

HARMAN International Industries, Incorporated 8500 Balboa Boulevard, Northridge, CA 91329 USA www.jblsynthesis.com
© 2018 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are subject to change without notice.
