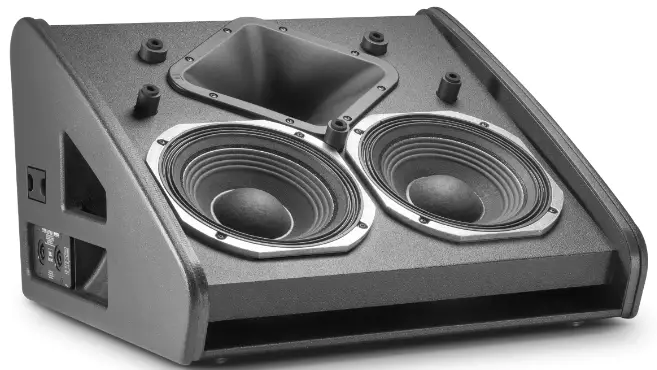

VTX M20 | SPARE PARTS
INTRODUCTION
This document is a quick reference guide for the most commonly needed VTX M20 spare parts. For the complete list of parts, assembly drawings, and torque values, refer to the VTX M20 SBOM (Service Bill of Materials), available for download from the JBL Professional Service Portal.
TRANSDUCERS
| PART NUMBER | TYPE | DESCRIPTION |
| 5061586X | HF Driver | D2430H, dual diaphragm, dual 3 in diameter voice coil, 8 ohms, complete driver |
| D32RD2430 | Diaphragm Kit | Replacement diaphragms for the D2430H compression driver |
| 354964-005X | LF Woofer | 2261H, 10 in diameter, dual 3 in voice coil, 8 ohms, complete woofer |
| C8R2261 | Recone Kit | Recone kit for the 2261H woofer |
OTHER
| PART NUMBER | TYPE | DESCRIPTION |
| 5058278 | Grille | Grill, does not include JBL logo |
| 446375-001 | Logo | JBL logo, 50 mm x 40 mm |
| 5060406 | Network | Network assembly, includes switch |
| 5059093 | Input Assembly | Input panel assembly, includes both sides, product label and wire harness |
