SERIES Loud Speakers
Owner’s Manual

HDI SERIES Loud Speakers

THANK YOU FOR CHOOSING THIS JBL® PRODUCT
For more than 60 years, JBL ® engineers have been involved in every aspect of music and film recording and reproduction, from live performances to the recordings you play  n the go and in your home, car or office. We’re confident that the JBL system you have chosen will provide every note of enjoyment you expect – and that when you  hink about purchasing additional audio equipment for your home, car or office, you will once again choose JBL products.
Please take a moment to register your new product on our Web site, www.jblsynthesis.com. Registering enables us to keep you posted on our latest advancements and helps us  o understand our customers and build products that meet their needs.

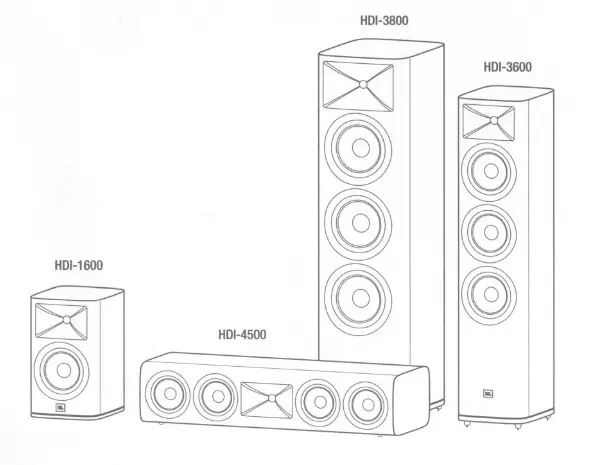

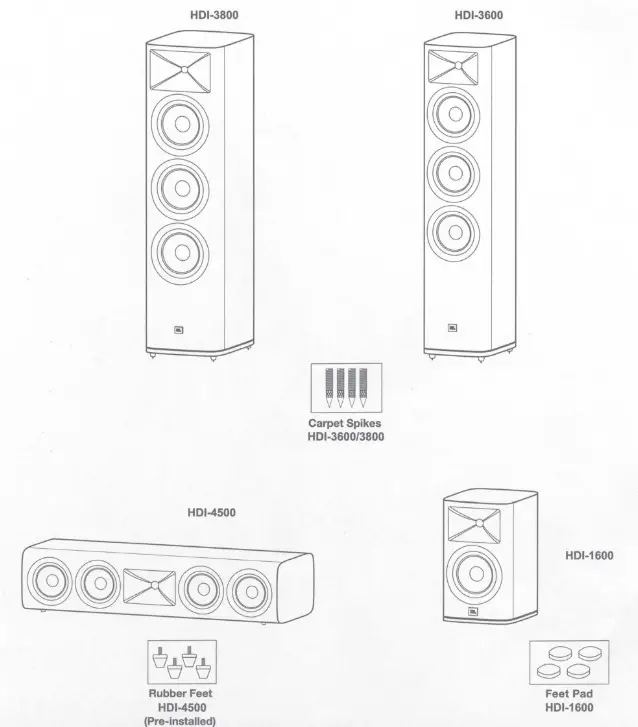

INCLUDED ITEMS

PLACEMENT

HDl-3600/3800 FLOORSTANDING LOUDSPEAKER, HDl-1600 BOOKSHELF LOUDSPEAKER

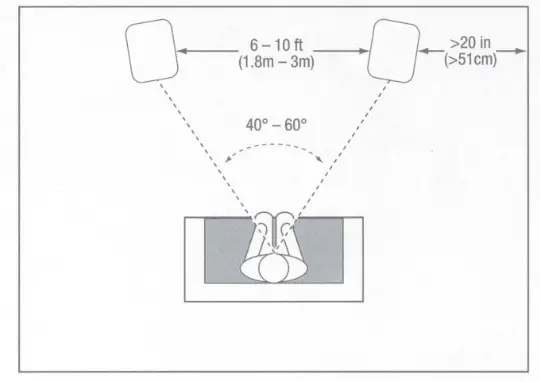

For the best results, place the speakers 6 – 10 feet (1 .Sm – 3m) apart. Angling the speakers toward the listening position can improve the stereo imaging. The speakers will  roduce the most accurate stereo soundstage when the angle between the listener and the speakers is between 40 and 60 degrees.

Generally, bass output will increase as the speaker is moved closer to a wall or corner.
For the best performance, we recommend that you place the speakers at least 20 inches (51 cm) away from the side walls.

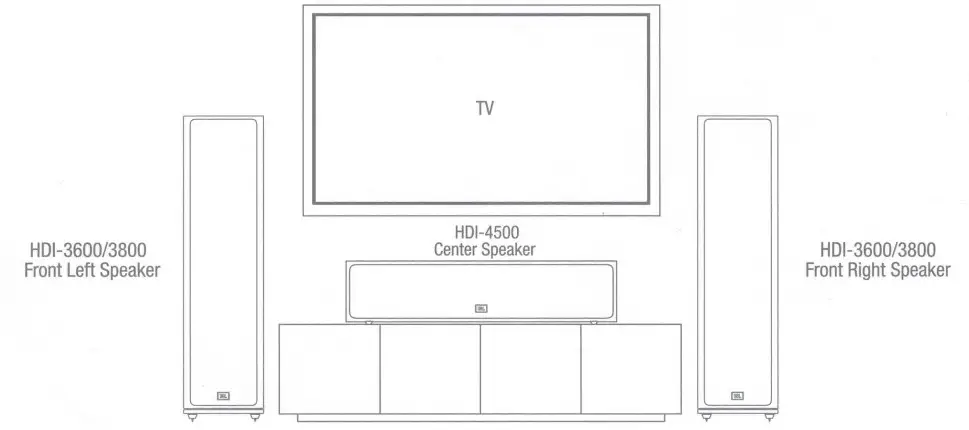

HDl-4500 CENTER CHANNEL SPEAKER
You should place the HDl-4500 center speaker directly above or below the center of your TV screen. The center of the speaker’s horn should be no more than 2 feet (61 cm)  bove or below the centers of the front left and front right speakers’ horns. If your TV set is deep enough, you can set the center speaker on top of the TV, with the speaker’s front edge even with the TV’s front edge.

Note: You can place HDl-4500 below or above the TV.
Note: For better audio listening performance, please align the center speaker towards your head level position.

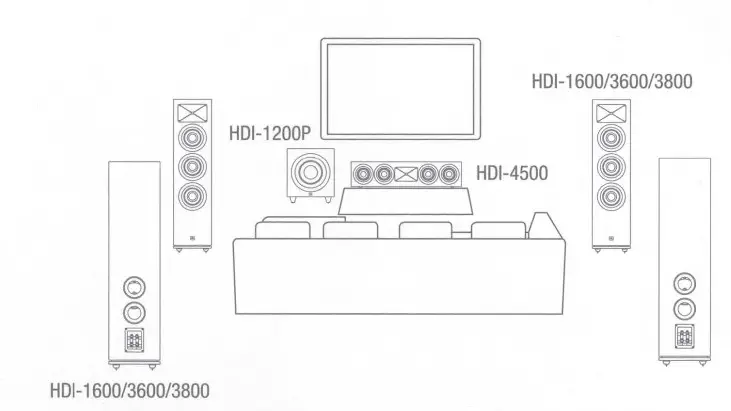

JBL HDI SERIES LOUDSPEAKER – HOME THEATER SPEAKERS 5.1 PLACEMENT SUGGESTION LAYOUT DIAGRAM
When you use HDl-1600/3600/3800/4500 speakers as surround-channel speakers in a 5.1-channel system, place them slightly behind the listening position, facing each  ther.  deally, they should be 3 – 4 feet (0.9m – 1.2m) above the floor. An alternate location would be on a wall behind the listening position, facing forward. The surround   peakers should not call attention to themselves while they’re playing. Experiment with their placement until you hear a diffuse, ambient sound accompanying the sounds that  ou hear from the front left, front right and center speakers.

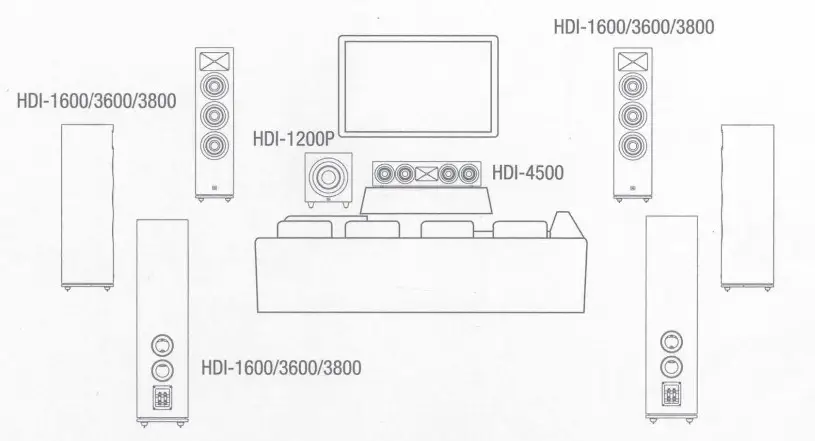

JBL HDI SERIES LOUDSPEAKER – HOME THEATER SPEAKERS 7.1 PLACEMENT SUGGESTION LAYOUT DIAGRAM
When you use HDl-1600/3600/3800/4500 speakers as surround-channel speakers in a 7 .1-channel system, place the surround side speakers directly to the sides of the  istening position, at least 3 – 4 feet (0.9m – 1.2m) above the floor. Place the surround back speakers on the wall behind the listening position, also at least 3 – 4 feet (0.9m –  .2m) above the floor and 3 – 6 feet (0 .9m – 1.8m) apart.

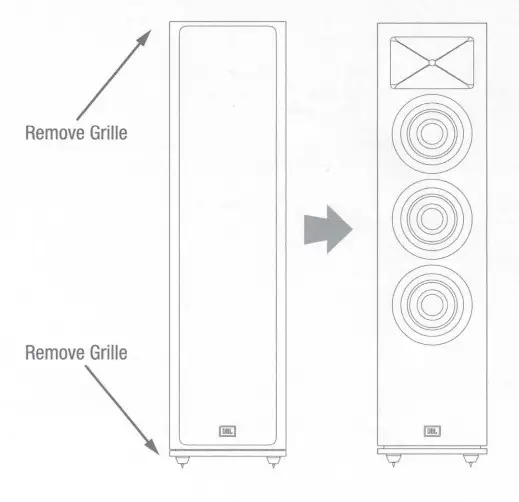

REMOVING THE GRILLES

You can remove the HDI series loudspeaker grilles by pulling them away from the enclosure.

CONNECTIONS

CAUTION: Make sure that all of the system’s electrical components are turned OFF (and preferably unplugged from their AC outlets) before making any connections.
Speakers and amplifiers have corresponding positive and negative(“+” and “-“)connectors.All HDI series speakers have connectors that are marked”+” and”-” on the  erminal-cup assembly. Additionally, the”+” connectors have red markings, while the “-” connectors have black markings.
To ensure proper polarity, connect each”+” connector on the back of the amplifier or receiver to the respective”+”(red) connector on each speaker. Connect the”-”  onnectors in a similar way. Do not reverse polarities (i.e.,”+” to”-” or”-” to”+”) when making connections. Doing so will cause poor stereo imaging and diminished bass performance.
IMPORTANT: Make sure the”+” and 11 11 wires or connectors do not touch each other or the other terminal. Touching wires can cause a short circuit that can damage  our  eceiver or amplifier.  The HDI series speakers ‘ gold-plated speaker connectors can accept a variety of wire connector types· bare wire pin connectors, spade connectors and banana connectors.

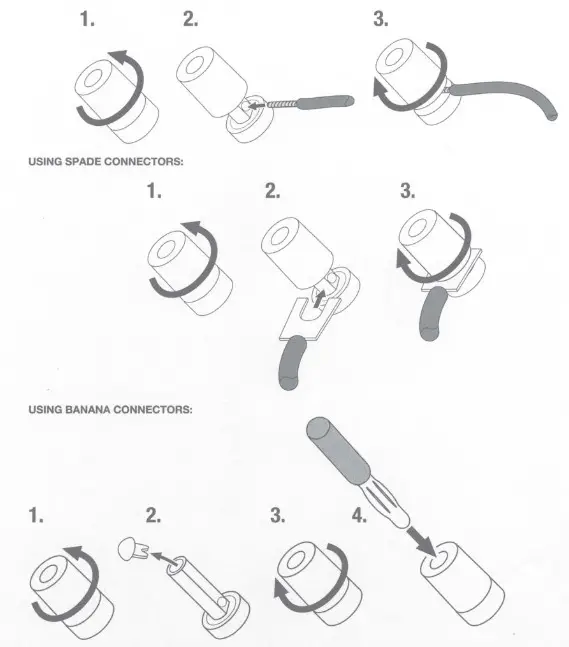

USING BARE WIRE OR PIN CONNECTORS:

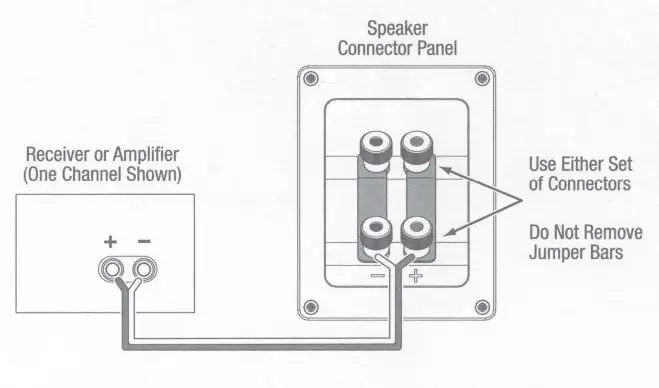

BASIC SINGLE-WIRE CONNECTION
To connect the speakers using a single wire, connect the amplifier to each speaker as shown in the illustration below. You can use either set of connectors on the connector panel.
IMPORTANT: Do not remove the metal jumper bars from between the two sets of connectors when connecting the speaker wires.

Bl-WIRE CONNECTION

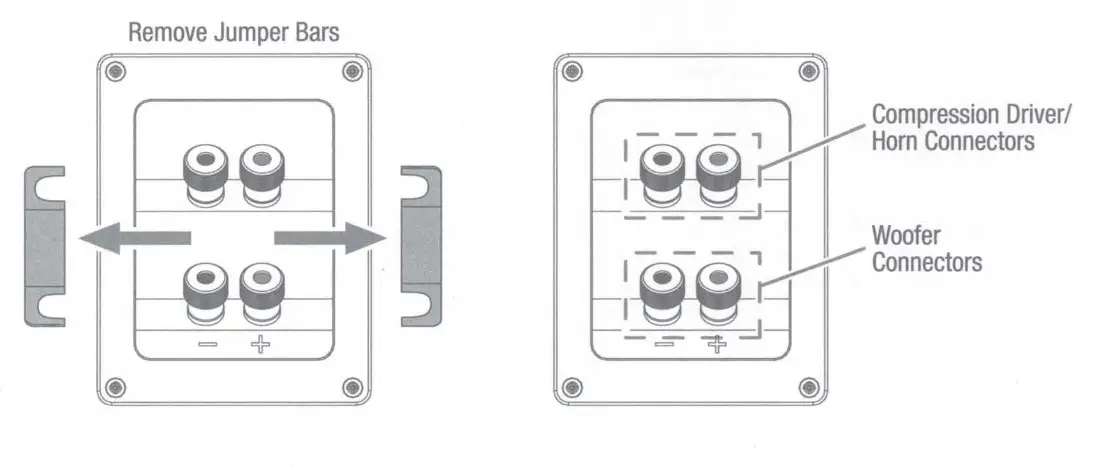

HDI series loudspeakers connector panels that have two sets of input connectors are joined by metal jumper bars.  The upper set of connectors is for the compression-  river/horn assembly, and the lower set of connectors is for the woofer(s). This arrangement allows you to bi-wire the speakers using a single stereo amplifier or using two stereo amplifiers. Bi-wiring can offer performance advantages and more flexibility in power-amplifier selection over a conventional single-wire connection.
Before bi-wiring  the speakers, remove the jumper bars.

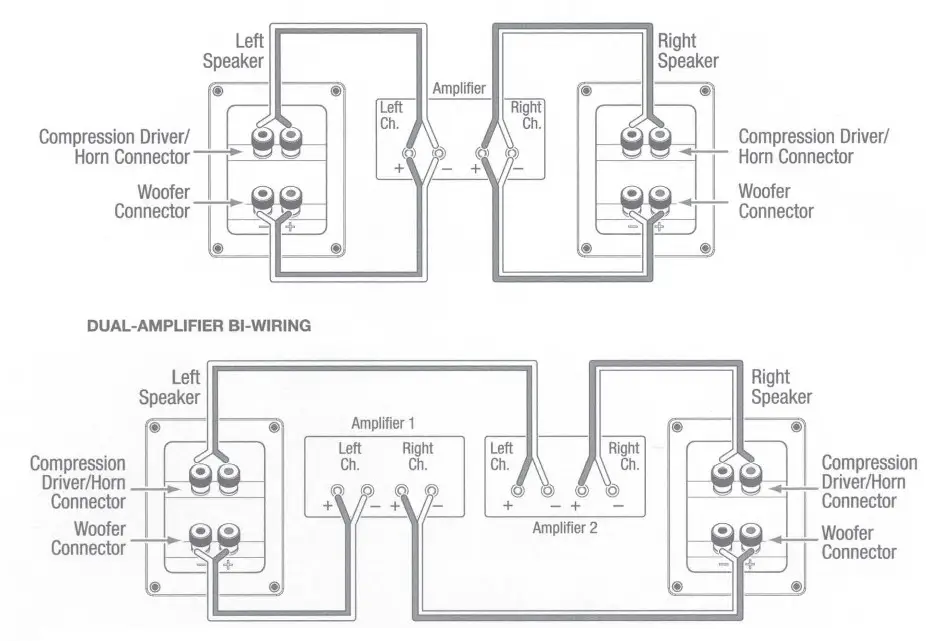

SINGLE-AMPLIFIER Bl-WIRING

For more information about various speaker-wire and connection options, contact your local JBL dealer.
CARING FOR YOUR SPEAKERS

• Wipe the cabinet with a clean, dry cloth to remove dust. Damp cloth may dull the cabinet’s finish. Do not use volatile liquids such as benzene, paint thinner or alcohol on the cabinet.
• Do not spray insecticide near the cabinet.
• To remove dust from the grille fabric, use a vacuum cleaner set to low suction.
• Never apply suction or pressurized air to the horn opening.
• Do not wash the grilles in water, as it may fade the color or make it uneven.
• If the surfaces of the woofer cones become dusty, you can carefully sweep them clean with a soft, dry calligraphy brush or paint brush. Do not use a damp cloth.

SPECIFICATIONS

HARMAN International Industries, Inc.
8500 Balboa Boulevard, Northridge, CA 91329 USA.
www.jblsynthesis.com
© 2020 HARMAN International Industries, Incorporated. All rights reserved.
JBL and HDI (High Definition Imaging) are trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. PolyPlas and Symmetrical Field Geometry are trademarks of HARMAN International Industries, Incorporated.
Features, specifications and appearance are subject to change without notice. Part No. 950-0563-001.

www.jblsynthesis.com
