Kasco 840306 3-Piece Sectional Float Kit
Instructions for Installation on 3-Piece Sectional Float Kit 840306
NOTE
This kit includes supplementary hardware required to mount LED6C11, RGB6C5, or LED6S19 light kits to Kasco units with three-piece sectional floats. The LEDC11 is pictured for reference: use the same method to secure the hardware to the mounting brackets on RGBC5 and LEDS19 lights.

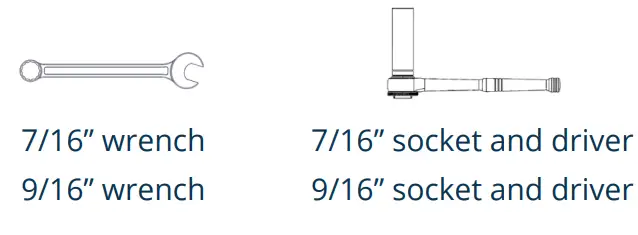

TOOLS REQUIRED

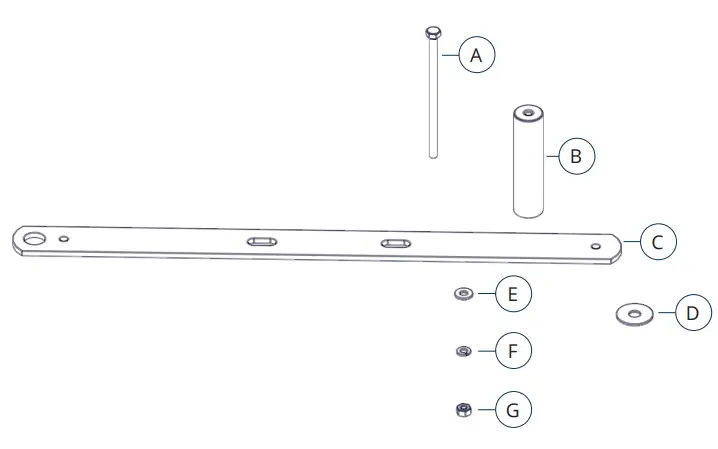

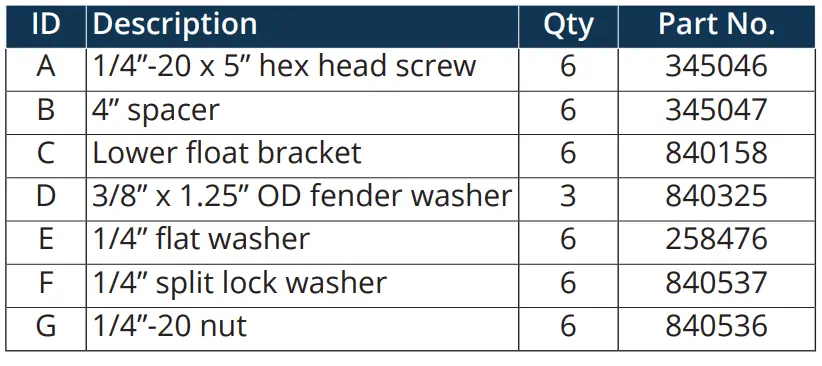

PARTS INCLUDED
INSTALLATION INSTRUCTIONS

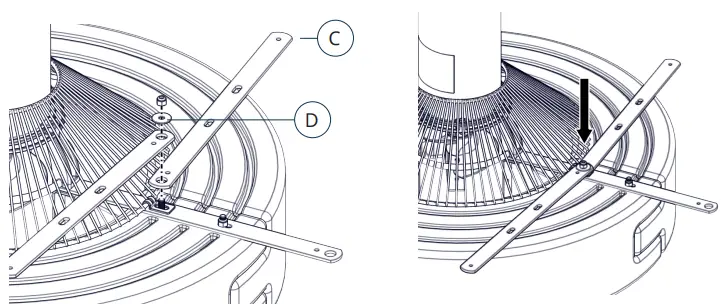

- Turn the unit upside down. Loosen and remove the 3/8” nut on the 9” bolts that are closest to the motor unit. 9/16” socket and wrench required. Place (2) lower float brackets (C) and one 3/8” fender washer (D) on the 9” bolt on the bottom screen clips and replace the 3/8” nut, threading on lightly.

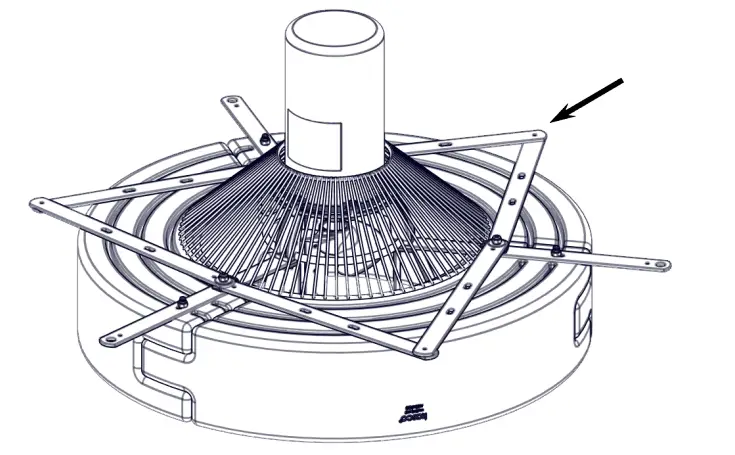

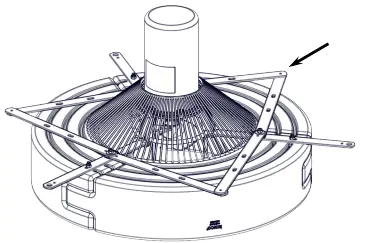

- Repeat for the other two sides of the unit, overlapping the free ends of the brackets and aligning the holes. Tighten the 3/8” nuts until secure.

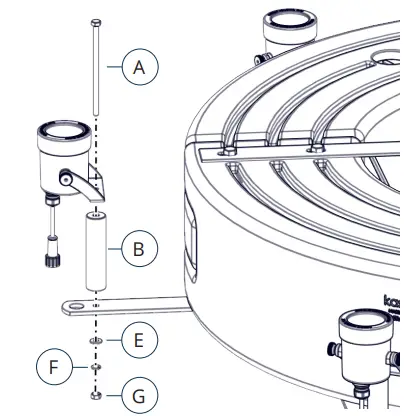

- Flip unit back over to upright position. Secure the light fixtures to the lower float bracket using the 1/4”-20 x 5” hex screw (A), 4” spacer (B), 1/4” flat washer (E), 1/4” split lock washer (F), and 1/4”-20 nut (G). 7/16” socket and wrench required. Repeat for all six fixtures and continue with standard installation instructions included with light kit.
- Turn the unit upside down. Loosen and remove the 3/8” nut on the 9” bolts that are closest to the motor unit. 9/16” socket and wrench required. Place (2) lower float brackets (C) and one 3/8” fender washer (D) on the 9” bolt on the bottom screen clips and replace the 3/8” nut, threading on lightly.
