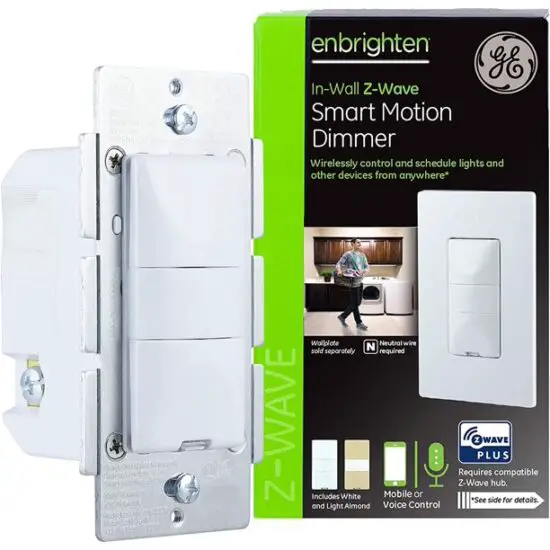

z-wave ZC10 In-Wall Smart Motion Dimmer User Manual
General Information
- Product Identifier: 26933
- Brand Name: Jasco Products Company
- Product Version: HW: 255 FW: 5.50
- Z-Wave Certification #: ZC10-16125342
Product Features
- Firmware Updatable: Updatable by Consumer by RF
- Neutral Wire Required: Yes
- Sensors: Motion/No Motion (Binary)
Z-Wave Product Information
- Supports Z-Wave Beaming Technology? Yes
- Supports Z-Wave Network Security? Yes
- Supports Z-Wave AES-128 Security S0? No
- Supports Security S2? No
- SmartStart Compatible? No
Z-Wave Technical Information
- Z-Wave Frequency: U.S. / Canada / Mexico
- Z-Wave Product ID: 0x3034
- Z-Wave Product Type: 0x494D
- Z-Wave Hardware Platform: ZM5101
- Z-Wave Development Kit Version: 6.51.08
- Z-Wave Library Type: Enhanced 232 Slave
- Z-Wave Device Type / Role Type: Light Dimmer Switch / Always On Slave
Association Group Information
Group # / Max Description
Nodes
1 / 5 Z-Wave Plus Lifeline, Multi-Level Report
2 / 5 Supports Basic Set and is controlled by pressing On/Off button with local load
3 / 5 Supports Basic Set and is controlled by pressing On/Off button with local load
Supported Command Classes (18):
- Association Group Info: Association V2
- Basic: Configuration
- CRC16 Encapsulation: Device Reset Locally
- Firmware Update Meta-Data V2: Manufacturer Specific V2
- Multi-Channel Association V3; Multi-Channel V4
- Notification V4: Powerlevel
- Scene Activation: Scene Actuator Conf
- Switch All Switch: Multilevel V2
- Version V2: Z-Wave Plus Info V2
Controlled Command Classes (1): Basic
