Sonoff Dw2-wifi Wi-fi Wireless Door User Manual

SONOFF DW2-WIFI Wi-Fi Wireless Door

Operation instruction

1. Download the “eWeLink”APP

2. Install batteries

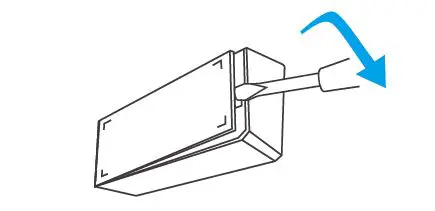

2- 1. Remove the back cover of the transmitter.

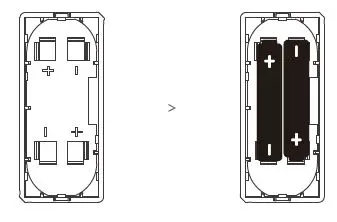

2-2. Insert batteries into the battery compartment based on identifiers of positive and negative poles.

2-3. Close the back cover.  The battery is not included, please purchase it separately.

3. Enter pairing mode

Long press the pairing button on the transmitter for 5s with the eject pin until the LED indicator flashes, then the device enters the pairing mode.

4. Add the device

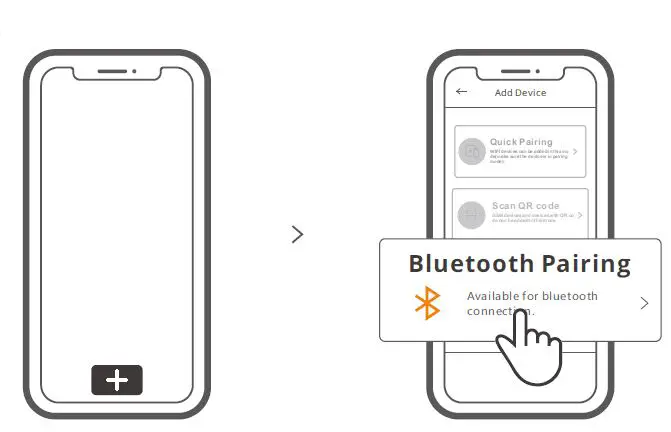

Tap “+” and select “Bluetooth connect”, then operate following the prompt on the APP.

Install the device

1. Tear off the protective film of the 3M adhesive.

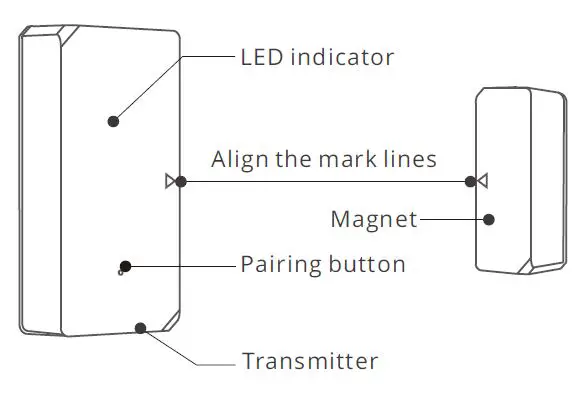

2. Try to align the mark line on the magnet with that on the transmitter during installation.

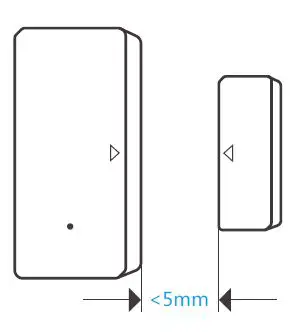

3. Install them in the opening and closing areas separately.Make sure the installation gap is less than 5mm when the door or the window is closed.

Specifications

Product Introduction

The device’s weight is less than 1 kg.
An installation height of less than 2 m is recommended.

LED indicator status instruction

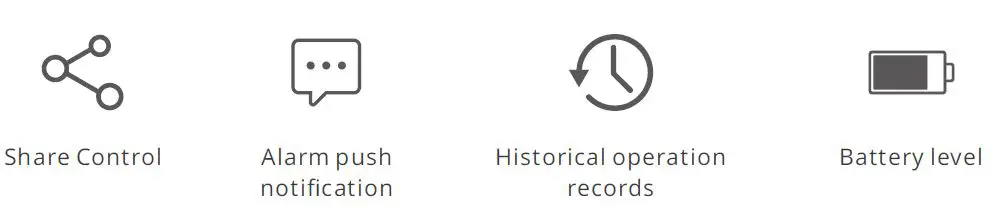

Features

DW2-Wi-Fi is a Wi-Fi wireless door/window transmitter that triggers the transmitter by separating the magnet for more than 20mm from the transmitter, then the transmitter will send an alarm message and pushes it to APP. You can share the device with your family to check the door/window status together.

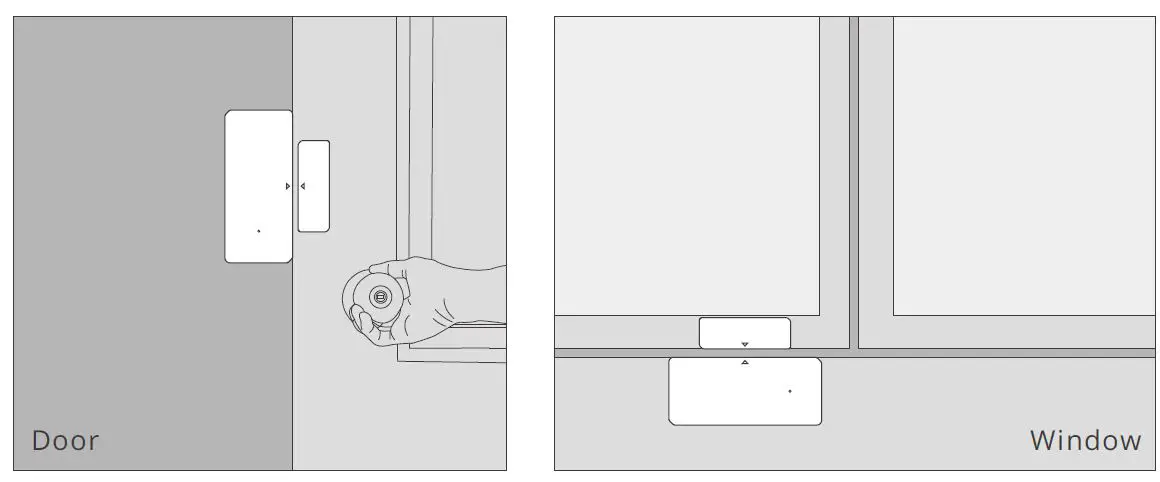

Application

Note:

•  Do not install outside the door/window.
• Do not install in the unstable position or in the place exposed to rain or moisture.
•  Do not install near wiring or magnetic object.

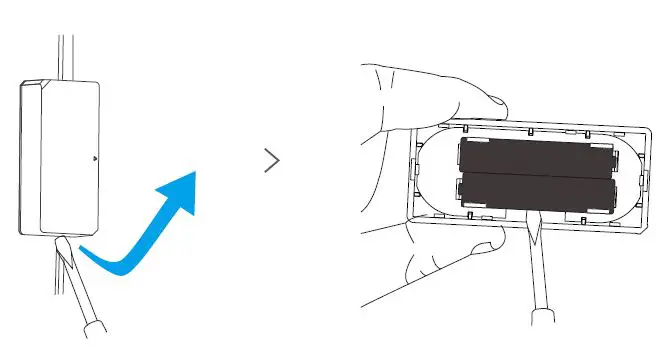

Replace batteries
