Vaporesso Luxe Ii 220w Starter Kit User Manual

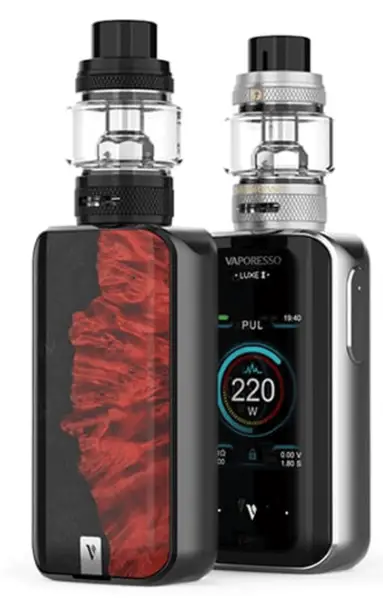

VAPORESSO Luxe II 220W Starter Kit

Thank you for choosing Vaporesso product. Please read this instruction carefully before use to ensure a perfect experience. If there is any additional requirement about this product, please consult the local agent or contact us through our website: www.vaporesso.com

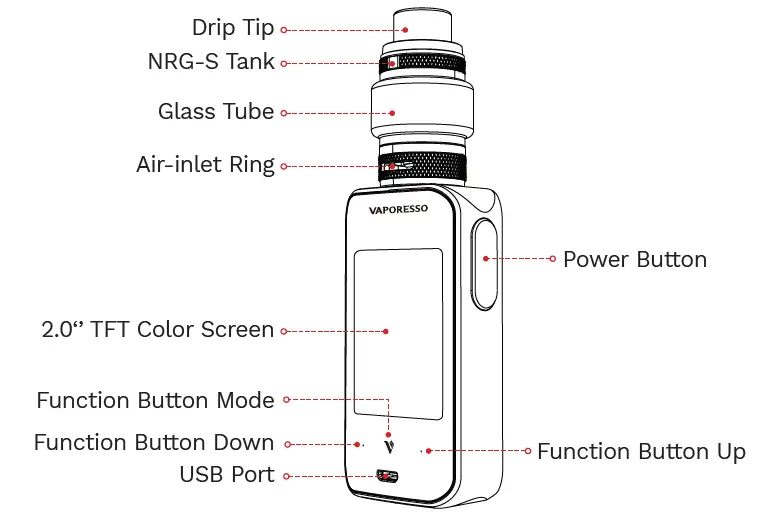

EXPLODED VIEW

SPECIFICATIONS

PACKING LIST

• 1 x Vaporesso LUXE II MOD
• 1 x Vaporesso NRG-S Tank
• 1 x GT MESHED Coil 0.18Ω (Pre-installed)
• 1 x GT4 MESHED Coil 0.15Ω (In box)
•  1 x Extra Pyrex glass tube (2ml Verison not Included)
• 4 x O-ring
•  1 x USB Cable
• 1 x User Manual
• 1 x Warranty Card

USE INSTRUCTIONS

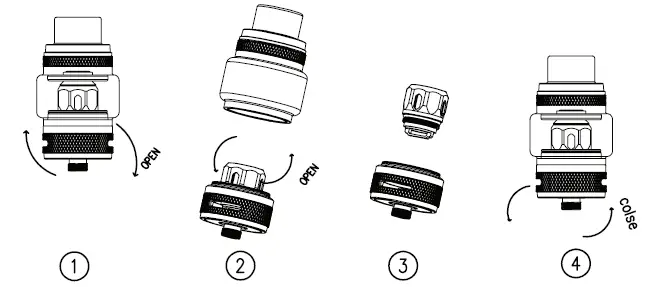

Install or Replace the Coil

• Make sure the tank is empty before installing or replacing the coil;
• Unscrew out the base of the tank and the used coil on the base. Install a new coil to the base and then reattach the base in place.

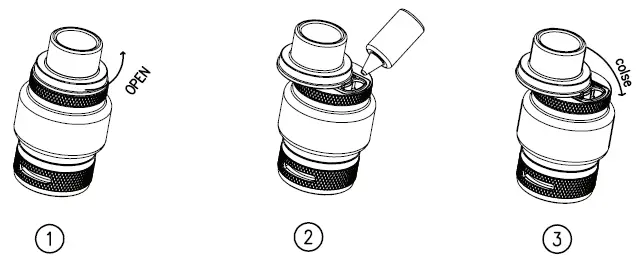

Fill E-liquid
Push the top cap according to the arrow direction and fill e-liquid through the hole, then lock the top cap in place after filling is finished.

Adjust the Airflow
Rotate the air-inlet dial to adjust the airflow volume.
Start the Device

• Before use: install two 18650 batteries to the device, the battery is not included in the kit.
• Power on/off: press the power button 5 times in 2s.

About Charging
After the Micro USB cable is connected to the battery, the charging indicator and remaining charging time will be displayed on the screen.

Lock/Unlock the Buttons
Press the power button 3 times continuously to lock or unlock the “+” button, “-” button and mode button. The power button still works.

Choose a Mode
Press the mode button 3 times continuously or long press the mode button to start mode setting.

*PUL: PULSE MODE (DEFAULT)
After the atomizer is installed, the device will enter the PULSE MODE automatically.
PULSE MODE: It’s a mode to improve vaping experience through constant voltage output, delivering optimal flavor production, nicotine satisfaction, and perfect temperature cloud continuously.
*ECO: POWER ECO MODE: AWhen the battery level is below 40% and unable to support the preset power, the device will automatically provide an option to enter the POWER ECO mode for increasing endurance.

* STC: SMART TEMPERATURE CONTROL MODE
When the temperature heating wire (SS/Ti/Ni) is detected, the device will provide an option to enter the STC (Smart TC) mode automatically.
* DIY: DIY MODE
You can choose traditional VW (H, N, S), VV, VT, CCW, BP (bypass) and SP (super player) modes in this section. When the coil resistance is extremely low, the device will provide an option to enter the SP (Super Player) mode automatically.

PROTECTIONS

CAUTIONS

1. Please turn off the device when it is not in use.
2. Do not leave the charging device unattended.
3. Do not drop, throw or abuse your device, which may cause damage.
4. Please use a standard USB output charger with proper charging current and voltage range.
5. Keep away from the water or any flammable gas, liquid.
6. Do not expose the device to direct sunlight, dust, moisture or mechanical shock.
7. Do not expose the device to extreme temperature. (Recommended temperature range: -10~60℃ /14~140 ℉ while using and -10~45℃ /14~113 ℉ while storing).
8. EEE Recycling: The product should not be treated as household waste, instead, it should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
9. Battery Recycling: The product battery should not be treated as household waste, instead, it should be handed over to the applicable used battery collection point for recycling.
10. Only have your device repaired by Vaporesso. Do not attempt to repair it by yourself as damage or personal injury may occur.

WARNINGS

This refillable electronic cigarette is intended for use with compatible e-liquid, which may contain nicotine. Nicotine is an addictive substance and it is not suitable or recommended to use in following cases:

1. This device is not suitable for:
   • Persons under the legal smoking age.
   • Persons experiencing heart disease, stomach or duodenal ulcers, liver or kidney problems, long-term throat disease or difficult breathing due to bronchitis, emphysema or asthma.
   • Persons with an overactive thyroid gland or experiencing phaeochromocytoma (a tumour of the adrenal gland that can affect blood pressure).
   • Persons taking certain medications like Theophylline, Ropinirole or Clozapine and etc..
2. This device is not recommended for:
   • Non-smokers
   • Pregnant or breastfeeding women
3. You may experience the following results if you use nicotine containing e-liquid with this product. If it happens, please consult a healthcare professional and show them this leaflet if possible:
   • Feeling faint – Nausea – Dizziness – Headache
   • Coughing – Irritation of the mouth or throat
   • Stomach discomfort – Hiccups
   • Nasal congestion – Vomition
   • Chest palpitations/pain or an irregular heart rate

This device should not be used by persons under the legal smoking age.
