VT-M2M-BTA-DE-A
User’s Manual
Chengdu Vantron Technology, Ltd.
www.vantrontech.com
Foreword
1.1 Copyright Notice
While all information contained herein has been carefully checked to assure its accuracy in technical details and printing, Vantron assumes no responsibility resulting from any error or features of this manual, or from improper uses of this manual or the software. Please contact our technical department for relevant operation solutions if there is any problem that cannot be solved according to this manual.
Vectron reserves all rights to this manual, including the right to change the content, form, product features, and specifications contained herein at any time without prior notice. The latest version of this manual is at www.vantrontech.com.cn. Please contact Vantron for further information:
Vectron Technology（Vantron）
E-mail: [email protected]
The trademarks and registered trademarks in this manual are properties of their respective owners. No part of this manual may be copied, reproduced, translated, or sold. No changes or other purposes are permitted without the prior written consent of Vantron. Vectron reserves the right of all publicly-released copies of this manual.
1.2 Notes
Applicable notes are listed in the following table
| Sign | Notice Type | Description |
 | Notice | Important information and regulations |
 | Caution | Caution for latent damage to system or harm to personnel |
1.3 Statement
It is recommended to read and comply with this manual before operating VT-M2M-BTA-DE-A which provides important guidance and helps decrease the danger of injury, electric shock, fire, or any damage to the device.
1.4 Disclaimer
Vectron assumes no legal liability for accidents resulting from the failure of conforming to the safety instructions.
1.5 Limitation of Liability/Non-warranty
For direct or indirect damage to this device or other devices of Vantron caused by failure of conforming to this manual or the safety instructions on-device label, Vantron assumes neither warranty nor legal liability even if the device is still under warranty.
The VT-M2M-BTA-DE-A should be installed, debugged, and maintained by professional people.
The outside antennas are not permitted to be installed or to be changed by non-professional people. To run the device normally, only specific antennas are approved to be assembled together by professional people. Unit shall be used with indoor-use antenna only. No antenna for this unit can be installed outdoor.
1.6 Safety Instructions
- Keep and comply with all operation instructions, warnings, and information.
- Pay attention to warnings on this device.
- Read the following precautions so as to decrease the danger of injury, electric shock, fire, or any damage to the device.
- Operations and Service instructions are provided with the equipment.
- Unit shall be used with indoor-use antenna only. No antenna for this unit can be installed outdoor.
- The maximum operating temperature is 61°C.
1.7 Precautions
- Pay attention to the product labels/safety instructions printed on silk screens.
- Do not try repairing this product unless declared in this manual.
- Keep away from the heat sources, such as heaters, heat dissipaters, or engine casing.
- Do not insert other items into the slot (if any) of this device.
- Keep the ventilation slot ventilated for cooling.
- System fault may arise if other items are inserted into this device.
- Installation: ensure correct installation according to instructions from the manufacturer with recommended installation tools.
- Ensure ventilation and smoothness according to relevant ventilation standards.
1.8 Safety Instructions for Power Cables and Accessories proper power source only Starts only with a power source that satisfies the voltage label and the voltage necessary according to this manual.
Please contact the technical support personnel of Vantron for any uncertainty about the requirements of the necessary power source. Use tested power source This product still contains a button lithium battery as a real-time clock after its external power source is removed and therefore should not be short-circuited during transportation or placed under high temperature. Place cables properly: Do not place cables at any place with extrusion danger.
1.9 Cleaning Instructions
- Please power off before cleaning the device.
- Do not use spray detergent.
- Clean with a damp cloth.
- Do not try cleaning exposed electronic components unless with a dust collector.
- Support for special fault: Power off and contact technical support personnel of Vantron in case of the following faults:
- The device is damaged.
- The temperature is excessively high.
- The fault is still not solved after the operation according to the manual.
Overview
2.1 Introduction
Thank you for choosing Vantron. It is our commitment to provide our valued customers with embedded devices equipped with state-of-the-art technology and the best product services.
Vantron’s VT-M2M-BTA-DE-A is based on the most advanced ARM and Intel Atom processors and has low power consumption and high integration. The products are designed for applications of Gateway in industrials, medicals, financial, retail, vehicle, and transportations, etc.
2.2 Product Series

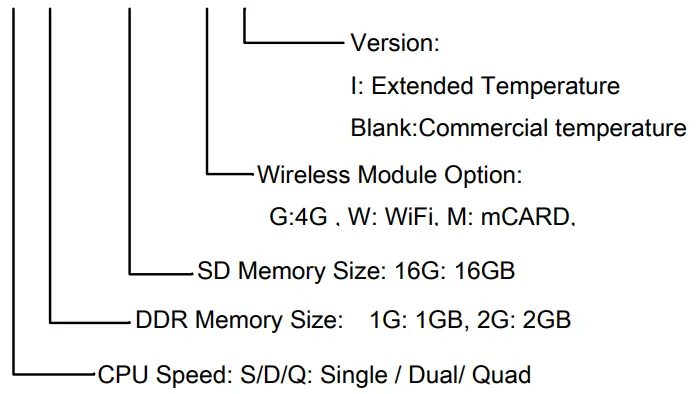

2.2.1 Product Order Coding Rule
Order Code
VT-M2M-BTA-DE-A-S-1GM-16GF-GWZ-V
2.2.2 Ordering Information
Order Examples:
| VT-M2M-BTA-DE-A-S-2GM-16GF- GWM-I | ATOM Baytrail single Processor, 2GB DDR3L, 16GB SSD, 4G, WiFi, mCARD, extended temperature |
VT-M2M-BTA-DE-A Hardware Instructions

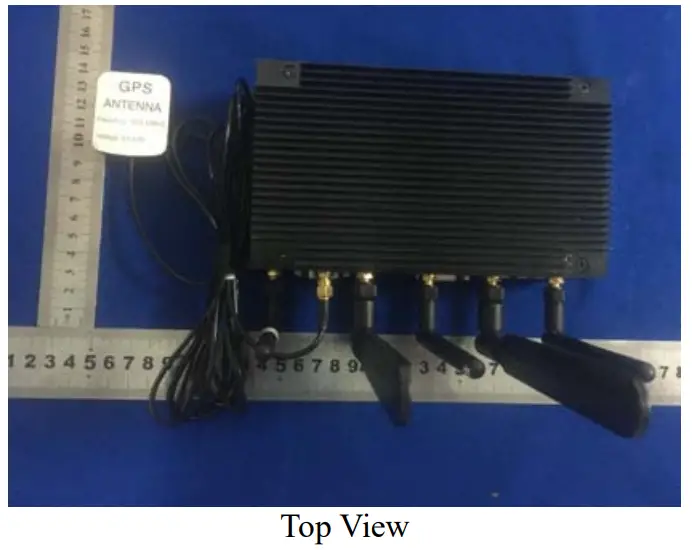

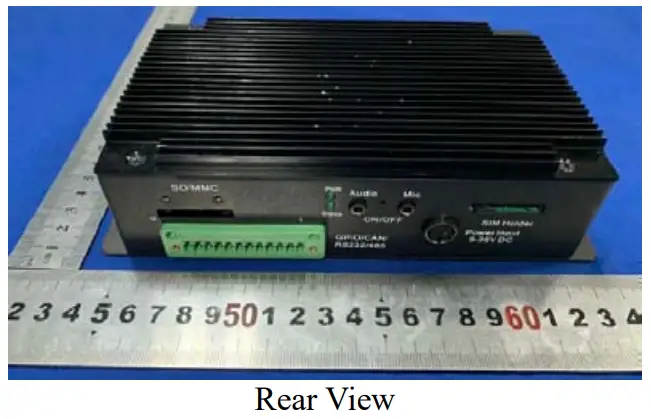

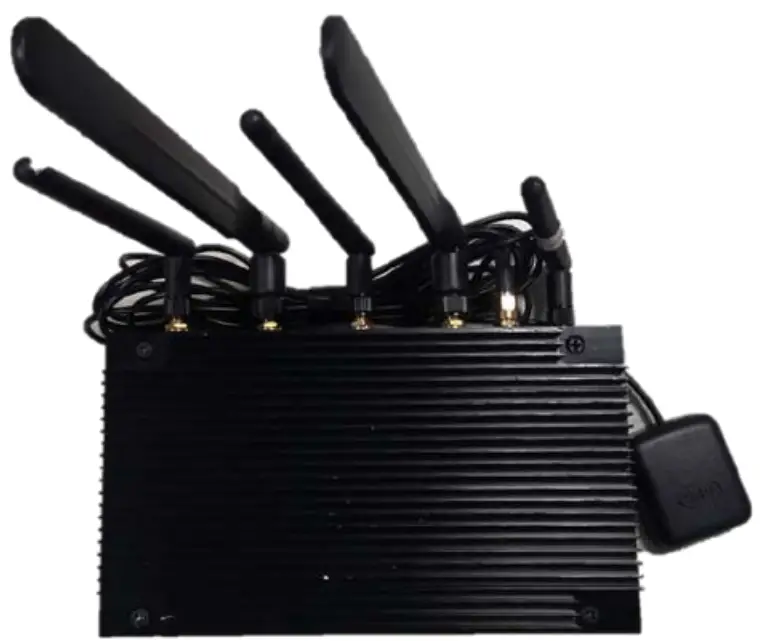

3.1 Product Appearance

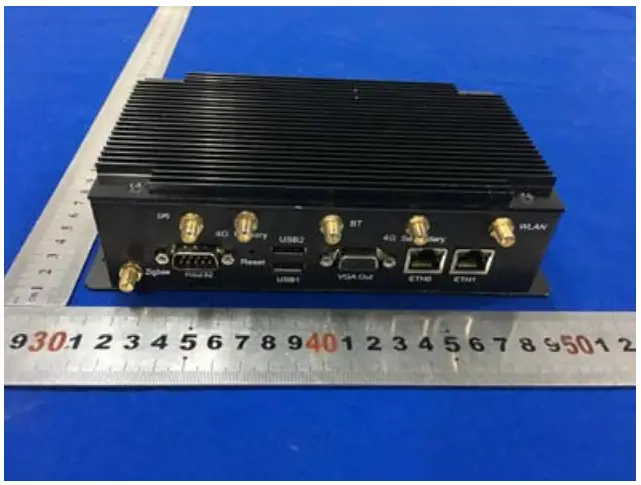

Front View
3.2 Specifications
| Specifications | ||
| CPU | Processor | Intel® ATOM™, E3815/1.46GHz, 512KB L2 cache per core |
|
Memory | On-Board RAM | On Board DDRIII 1066MT/s , up to 2GB |
| SSD Internal | Half-Slim SSD Module Internal (16GB) | |
| Display | Resolution | Up to 2560×1600@60Hz for VGA |
| Interface | 1xVGA (DB15) | |
| WLAN | Optional 802.11 b/g/n Wireless Module, external antenna, Support 1x Half PCIe Wireless card | |
| Wireless Communication | 4G Module | 1xPCIE 4G/LTE Cellular Module with SIM slot |
| RF Module | Zigbee Module with external antenna | |
| BT | BT module, external antenna | |
| Ethernet | 2×10/100/1000-BaseT(RJ45) | |
| USB | 2xUSB2.0 Host (Type A) | |
| Audio | HD Audio, 1xMIC in 3.5mm, 1xline Out 3.5mm | |
| COM Port | 1xRS232/485/422(DB9 full function), 1xRS232/485(2 wires on Green Terminal) | |
| Peripheral Interfaces | Alarm | Buzzer Out |
| SD card | 1xSD card Slot | |
| RTC | Supported | |
| Control | Reset and On/Off Button on the top | |
| GPIO | Reserved GPIO (Terminal) | |
| CAN | 1x CAN2.0b | |
| Accelerometer | On-Board Accelerometer, 3-Axis | |
| Security | security | On board Registration Serial Number, and SHA-1 Encrypt/Decrypt Chip DS28E01(Optional) Optional TPM module |
| Software | OS | Linux, XOS, Paker’s pre-program golden image |
| Applications | SDK Available | |
| Power | Input | DC12 / 24V(9-36V), Locked Power Jack |
| Consumption | 6W (Pulse10W), Sleep 2W. (without 4G, WLAN) | |
| Mechanical | Dimensions | 176x101x52mm (Box) |
| Install Brackets | 198x101x52mm | |
| Weight | 0.6Kg (1.2Kg Package Kit) | |
| Enclosure | Aluminum Alloy with Black Color | |
| Temperature | Operating:-20°C ~ +60°C ( ETR:-40°C ~ +80°C Optional) | |
| Environment Condition | Storage:-40°C ~ +85°C | |
| Humidity | 5-95%RH at 25-35 (Non-Condensation) | |
| Cooling Mode | Fanless, Heat Sink | |
| Approvals | UL, FCC, IC, CE, RoHS, and PTCRB Compliance |
3.3 Interface Description

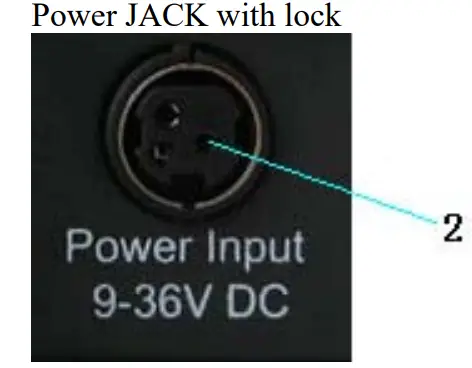

3.3.1 Wide-Range Power Interface
| Pin | Description |
| 1,3 | DGND (ground pin) |
| 2 | Power (+12 DC,UP to 36V) |
3.3.2 Ethernet Interface
Standard RJ45 interface, supporting 10M/100M/1000M self-adaptation, this is a standard RJ45 Ethernet port.

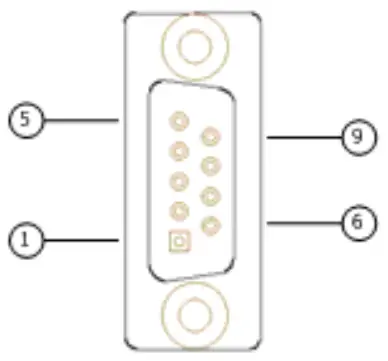

3.3.3 D Sub-9 RS232 Connector
Standard vertical DB-9 male connector
| Pin | Description | Remark s |
| 1 | DCD1/422TX+/485_A | BIOS set |
| 2 | RXD1/422TX-/485_B | BIOS set |
| 3 | TXD1/422RX+ | BIOS set |
| 4 | DTR1/422RX- | BIOS set |
| 5 | DGND (ground pin) | |
| 6 | DSR1 | |
| 7 | RTS1 | |
| 8 | CTS1 | |
| 9 | RI1 |

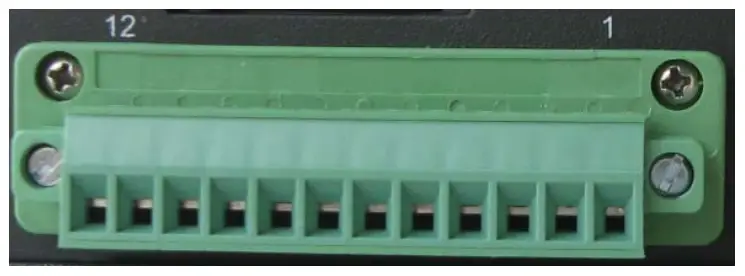

RS232/485 ,CAN,External IO Connector
12pins 3.81 pitch terminal with screw lock
Load capacity: more than 128 nodes/RS485 channel
| Pin | Description | Remarks |
| 1 | TXD2/485_2_A | BIOS set |
| 2 | RXD2/485_2_B | BIOS set |
| 3 | DGND | |
| 4 | CANH | |
| 5 | CANAL | |
| 6 | DGND | |
| 7 | EXTIO0 | 3.3V Level |
| 8 | EXTIO1 | 3.3V Level |
| 9 | EXTIO2 | 3.3V Level |
| 10 | EXTIO3 | 3.3V Level |
| 11 | EXTIO4 | 3.3V Level |
| 12 | EXTIO5 | 3.3V Level |
3.3.4 VGA Interface
Standard vertical DB-15 Female VGA connector
| Pin | Description |
| 1 | RED |
| 2 | GREEN |
| 3 | BLUE |
| 4 | N.C. |
| 5 | GND |
| 6 | GND |
| 7 | GND |
| 8 | GND |
| 9 | +5VDC |
| 10 | GND |
| 11 | N.C. |
| 12 | SD_DDC |
| 13 | HSYNC |
| 14 | VHYNC |
| 15 | SC_DDC |

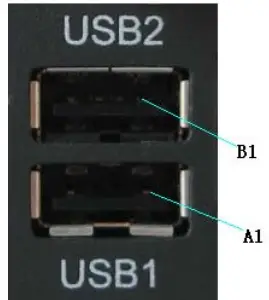

3.3.5 USB Host Connector
Dual vertical USB A-type interface, USB2.0
| Pin | Description |
| A1 | USB1_VCC(+5VDC) |
| A2 | USB1_D- |
| A3 | USB1_D+ |
| A4 | USB1_DGND(ground pin) |
| B1 | USB2_VCC(+5VDC) |
| B2 | USB2_D- |
| B3 | USB2_D+ |
| B4 | USB2_DGND(ground pin) |
Notes: Insert external device in USB1 connector should before powering up.
3.4 Operation Notice
3.4.1 Change SIM Card
Push the small button on the left of the SIM Card Holder, and install the SIM card on the holder. Then push the holder into the Slot.
3.4.2 Power Supply
Please make sure to use the adapter in the accessory, or the power is not reversed when powered by another adapter.
Tips
Waste Disposal
It is recommended to disassemble the device before abandoning it in conformity with local regulations. Please ensure that the abandoned batteries are disposed of according to local regulations on waste disposal. Do not throw batteries into the fire (explosive) or put them in a common waste canister. Products or product packages with the sign of “explosive” should not be disposed of like household waste but delivered to specialized electrical＆electronic waste recycling/disposal centers. Proper disposal of this sort of waste helps avoid harm and adverse effect upon surroundings and people’s health. Please contact local organizations or recycling/disposal centers for more recycling/disposal methods of related products.
Comply with the following safety tips:Do not use it in a combustible and explosive environment
Keep away from the combustible and explosive environments for fear of danger.
Keep away from all energized circuits.
Operators should not remove the enclosure from the device. Only the group or person with factory certification is permitted to open the enclosure to adjust and replace the structure and components of the device. Do not change components unless the power cord is removed. In some cases, the device may still have residual voltage even if the power cord is removed. Therefore, it is a must to remove and fully discharge the device before contact so as to avoid injury.
Unauthorized changes to this product or its components are prohibited.
With the aim of avoiding accidents as far as possible, it is not allowed to replace the system or change components unless with permission and certification. Please contact the technical department of Vantron or local branches for help.Pay attention to caution signs.
Caution signs in this manual remind us of possible danger. Please comply with the relevant safety tips below each sign. Meanwhile, you should strictly conform to all safety tips for the operating environment.
Notice
Considering that reasonable efforts have been made to assure the accuracy of this manual, Vantron assumes no responsibility for possible missing contents and information, errors in contents, citations, examples, and source programs.
Vectron reserves the right to make necessary changes to this manual without prior notice. No part of this manual may be reprinted or publicly released in form of a photocopy, tape, broadcast, e-document, etc. FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Any modification to the product is not permitted unless authorized by Vantron. It’s not allowed to disassemble the product. It is not allowed to replace the system or change components unless with permission and certification. Please contact the technical support department of Vantron or local branches for help.
ISED statement
This radio transmitter [IC:11152A-BTADEALP] has been approved by Innovation, Science, and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited from use with this device.
| Mode | Manufacturer | Model Number | Antenna Ga (Max) | Impedance (Ohm) | Antenna Connector | Antenna Type |
| Wi-Fi | Dongguan YiJia Electronics Communication Technology Co., Ltd. | YJ042S.100001.S02 | 2.0dBi | 50 | Reverse SMA male | Monopole |
| Bluetooth | Dongguan YiJia Electronics CommunicationTechnology Co., Ltd. | YJ042S.100001.S02 | 2.0dBi | 50 | Reverse SMA male | Monopole |
| Zigbee | FULL RISE ELECTRONIC CO., LTD | AN-AI-XOC | 2.0dBi | 50 | Reverse SMA male | Monopole |
| LTE Main | Asian Creation | AC-Q7027-YZW | 3.0 dBi (698-960MHz)5.0 dBi | 50 | SMA(Male) | Monopole |
| (1710-2700MHz) | ||||||
| LTE Diversity | Asian Creation | AC-Q7027-YZW | 3.0 dBi (698-960MHz) 5.0 dBi (1710-2700MHz) | 50 | SMA(Male) | Monopole |
| GPS | Shenzhen Normi Technology CO., LTD. | NP002 | 28dBi | 50 | SMA(Male) | Monopole |
This device complies with Innovation, Science, and Economic Development Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
- this device may not cause interference, and
- this device must accept any interference, including interference that may cause undesired operation of the device.
RF exposure warning
This equipment must be installed and operated in accordance with provided instructions and the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
US Office: Vantron Technology, Inc.
Address: 440 Boulder Court, Suite 300,
Pleasanton, CA 94566
Tel: +1 916-202-7042
Email: [email protected]
China Office: Chengdu Vantron Technology, Ltd.
Address: No.5 GaoPeng Road, Hi-Tech Zone, Chengdu, Sichuan, P.R. China 610045
Tel: 86-28-8512-3930/3931, 8515-7572/6320
Email: [email protected]
