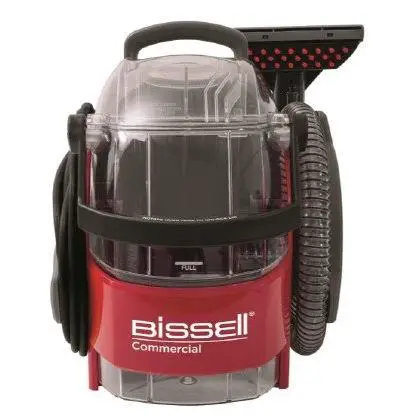

SC100 Spot Carpet Extractor
User Manual
Clemas & Co. Unit 5 Ashchurch Business Centre, Alexandra Way, Tewkesbury,
Gloucestershire, GL20 8NB.
Tel: 01684 850777 Fax: 01684 850707
Web: www.clemas.co.uk
Email: [email protected]
SpotClean Commercial – SC 100 3378
Issued: January 2022
Revised:
© 2022 BISSELL Homecare, Inc.

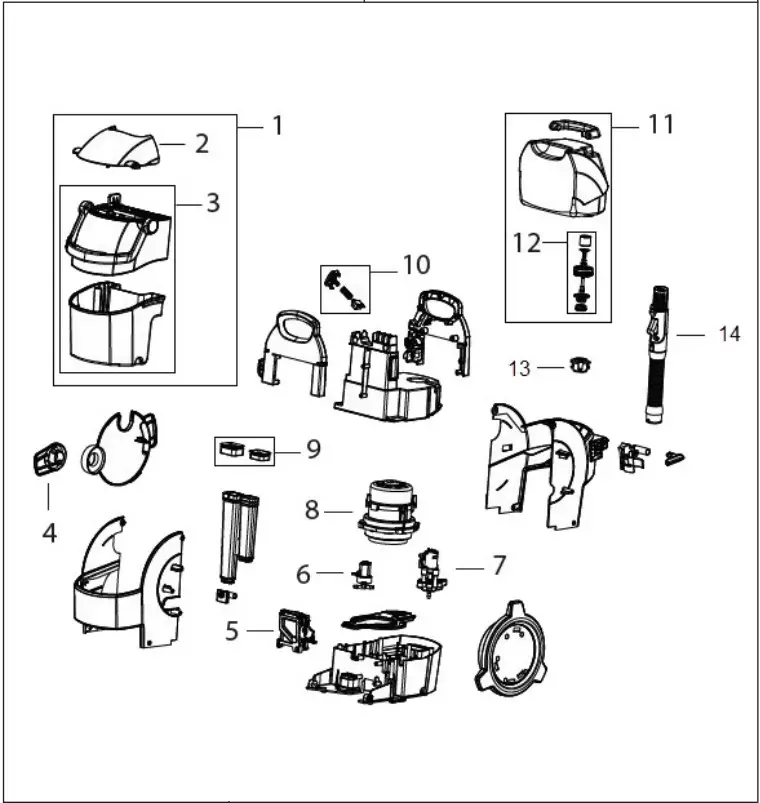

| KEY | PART NO | DESCRIPTION |
| 1 | 2037892 | Dirty Tank Assembly, Black Handle |
| 2 | 2037895 | Dirty Tank Lid |
| 3 | 2037894 | Dirty Tank Assembly without Lid, Black Handle |
| 4 | 2037904 | Cord Wrap, Gray |
| 5 | 2037917 | Diverter Cover Assy |
| 6 | 2036897 | Solenoid Valve |
| 7 | 1630905 | Pump Assy |
| 8 | 1602733 | Vac Motor Assy |
| 9 | 2037918 | Pod Duct Gasket Assy |
| 10 | 2037919 | Switch Assy, On/Off w/CVR Spring |
| 11 | 1600813 | Clean tank Assembly, Black Handle |
| 12 | 2032287 | Tank Cap & Straw |
| 13 | 2036758 | Receiver Assy – Autoload |
| 14 | 2037905 | Hose Assembly, Black |
| XX | 1630906 | Power Cord, 7.5m UK plug |
| XX | 1613828 | Hydrorinse Silver |
| XX | 2036654 | 6″ Tool |
| XX | 2036655 | Spraying Crevice Tool |
| XX | 2103040 | Tool Storage Bag |
| XX | 2036651 | 3″ Tool |
