next generation safety

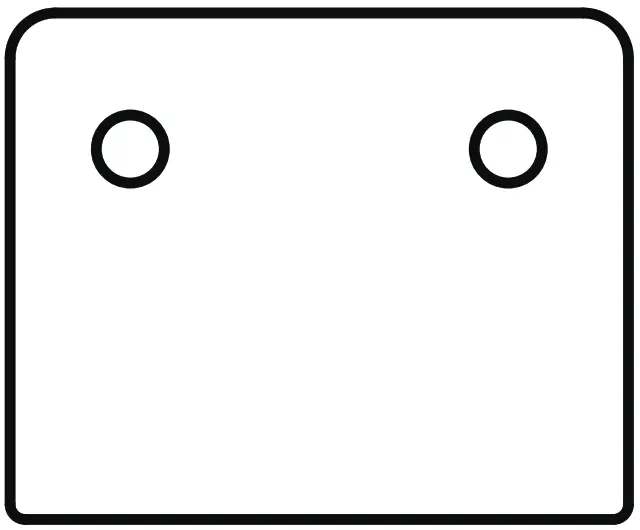

Template 1
Top
GATE SIDE
- Print at a 100% scale
- Cut out templates
- Join each section with tape
CAUTION: Check printed template against the gate to confirm correct sizing and hole positions before installing.
Template 1 Middle (Top)
Template 1 Middle (Bottom)
Template 1 Bottom

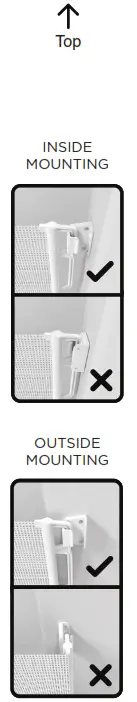

CATCH SIDE

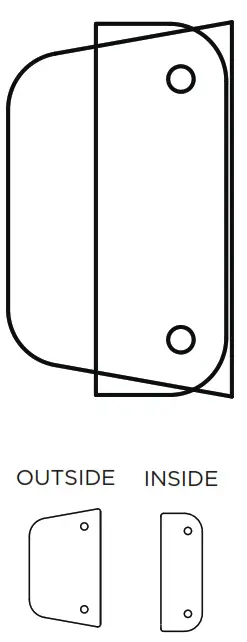

Template 2 Top
Middle
Template 2 Middle (Top)
- Print at 100% scale
- Cut out templates
- Join each section with tape
CAUTION: Check printed template against the gate to confirm correct sizing and hole positions before installing.
Template 2 Middle (Bottom)

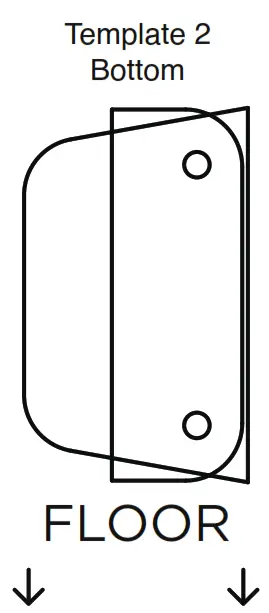

Template 2 Bottom
Ultimate Retractable Gate Template 2
Codes: #2738
Print at home – Scale 100%
