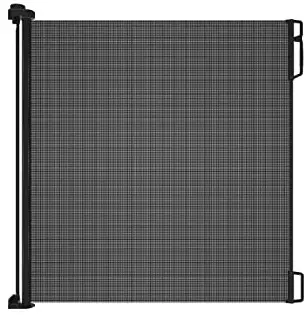

PERMA CHILD SAFETY Standard Retractable Gate User Manual
Standard Retractable Gate Template 1
Codes: #754, 755, 2725, 2739, 2741
Print at home – Scale 100%
CAUTION: Check printed template against gate to confirm correct sizing and hole positions before installing.
Top

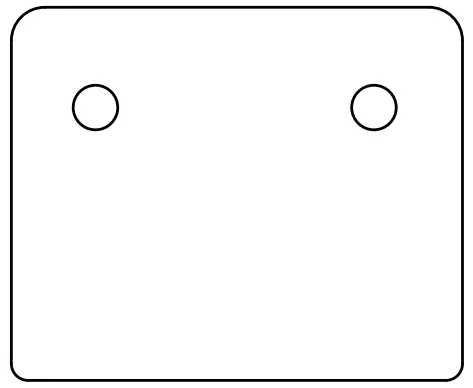

GATE SIDE
- Print at 100% scale
- Cut out templates
- Join each section with tape
CAUTION:
Check printed template against gate to confirm correct sizing and hole positions before installing.

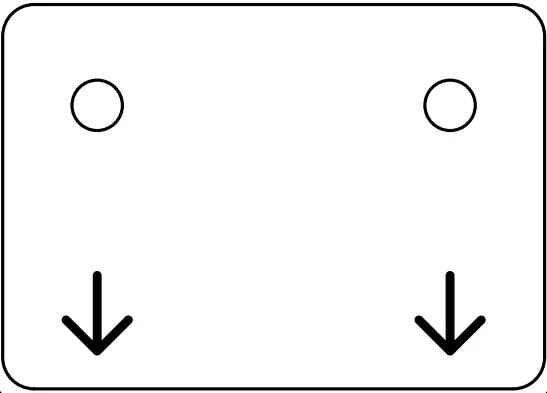

FLOOR

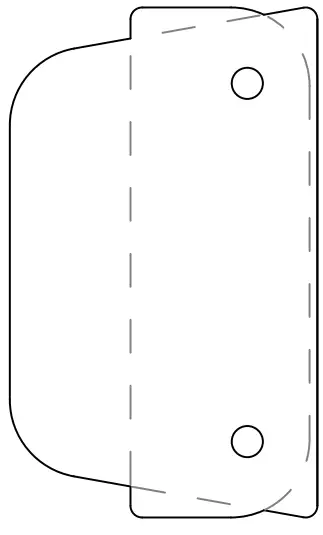

Standard Retractable Gate Template 2
Codes: #754, 755, 2725, 2739, 2741
Print at home – Scale 100%
CAUTION: Check printed template against gate to confirm correct sizing and hole positions before installing.
Top

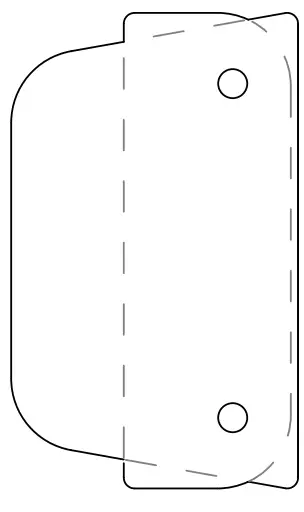

CATCH SIDE

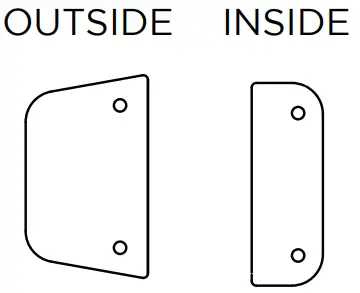

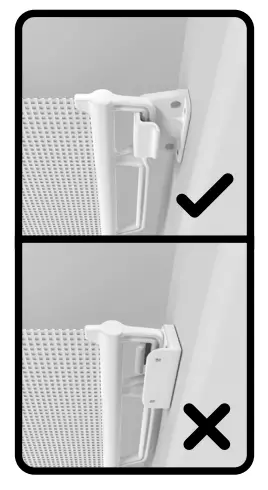

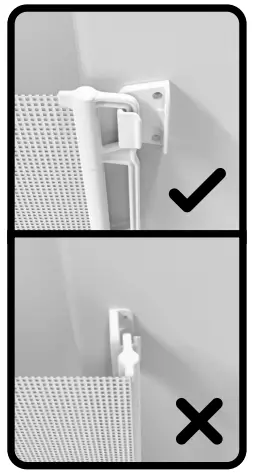

INSIDE MOUNTING
OUTSIDE MOUNTING
- Print at 100% scale
- Cut out templates
- Join each section with tape
CAUTION:
Check printed template against gate to confirm correct sizing and hole positions before installing.
Template 2 Bottom
INSTALLATION VIDEO
