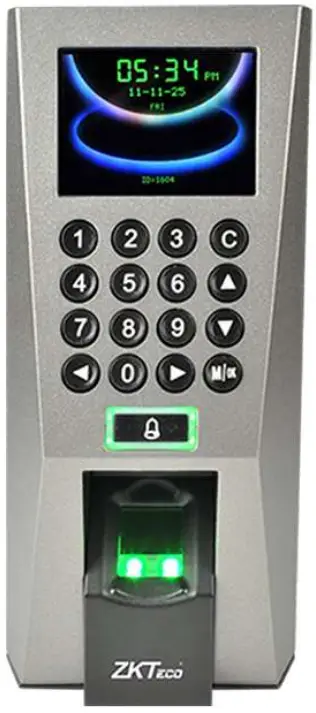

S4A K1187171537 Biometric Access Control User Guide
Introduction
Fingerprint Access Control is an intelligent management system that installs a fingerprint access control at the entrance and exits and performs operations such as release, rejection, It is used as gate access control, intelligent building system, high-security entrance, and exit management and other places, The purpose of safe access control is to effectively control the access of personnel and realize the safety management of entrances and exits.
The fingerprint access control machine uses human bio metric fingerprints for identity security identification and has the characteristics of irreplaceable, non-copying, and uniqueness.
Specification
- Screen size 2.4inch
- ID/IC card ID (IC Optional)
- User capacity 3000
- Fingerprint capacity 3000
- Password capacity 3000
- Data capacity 80000
- FAR ≤0.0001%
- FR ≤0.1%
- Power 12V1A
- Ambient temperature -10℃~45℃
- Environment humidity 20~80%
- Product Size 200*84*31mm
- Language English

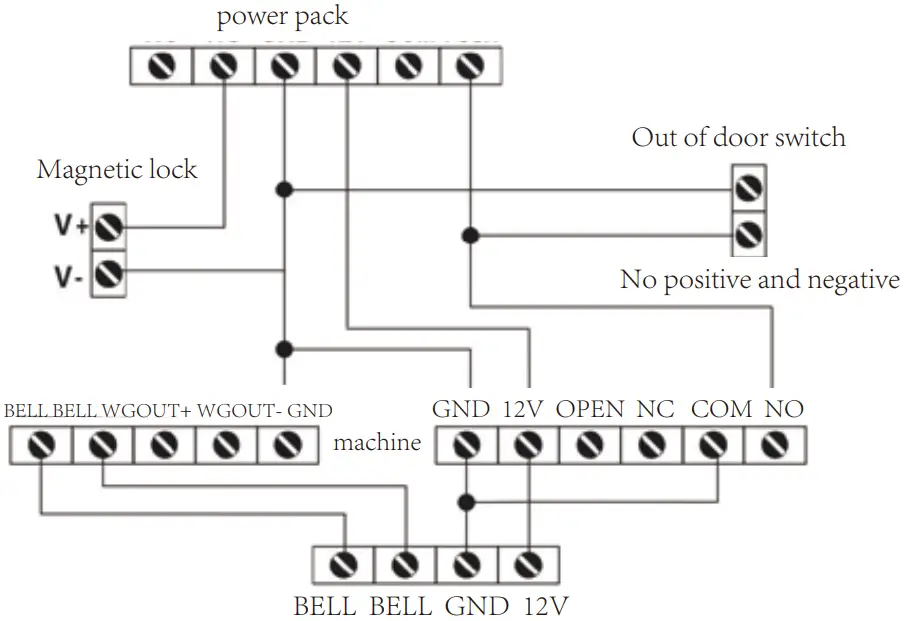

Fingerprint machine wiring instructions
