Features

Single Action
Key resettable
Terminal connectors
Gold plated SPDT contacts
High-gloss enamel in Blue and Yellow
Normally Open or Normally Closed Alarm Contacts
Meets ADA 5 lb. maximum manual-force

Description

Mircom’s MS-700U Emergency Manual Stations are high quality, die-cast metal manual stations that are designed to meet special use requirements. The MS700U are designed for indoor and outdoor use.

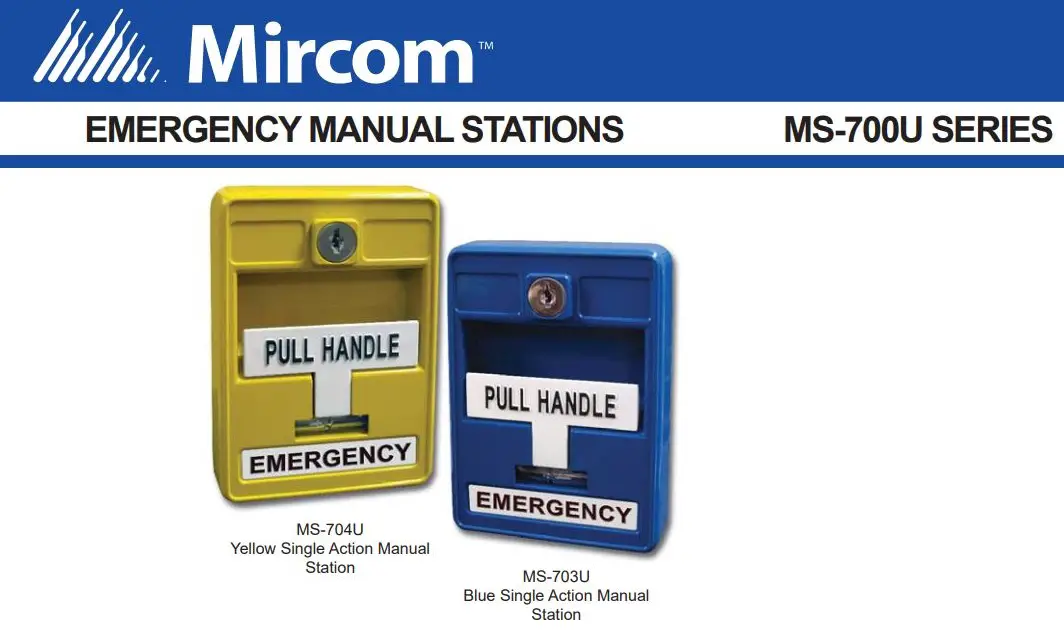

Mircom’s MS-700U Emergency Manual Stations consist of two models. The MS-703U and MS-704U are single action manual stations. The MS-703U is finished in a Blue enamel and the MS-704U is finished in a Yellow enamel.

Both models are available with key resets, CAT-30 lock and keys, SPDT contacts and terminal strip connections. The contacts are gold plated to avoid the risk of corrosion. The MS-700U Emergency Manual Stations mount on a standard single gang backbox.

Operation

The MS-700U Single Action Emergency Manual Stations are operated by pulling down the handle marked “PULL HANDLE” on the front of the station.
The MS-700U Series Emergency Manual Stations are reset by opening the station with the key, placing the handle in the normal upright position and relocking the station.

Specifications

Switch Rating: 1 Amp @ 30 VDC
0.1 Amp @ 125 VAC
Manual Station Dimensions: 4.9” H x 3.5” W x 2.0” D
Colors: Blue or Yellow with raised white letters.
White manual bar with raised black letters.

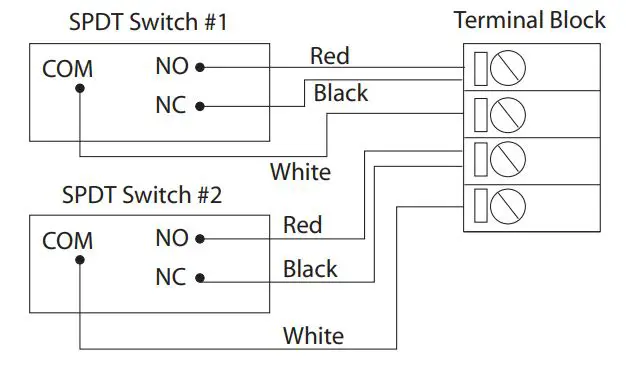

Typical Wiring Diagram

Note: For Normally Open operation, cut the NC wire. For Normally Closed operation, cut the NO wire.

Ordering Information

Model Description
MS-703U Blue Single Action Emergency Manual Station c/w 2 Form “C” Contacts
MS-704U Yellow Single Action Emergency Manual Station c/w 2 Form “C” Contacts
