Lenovo Think Station P620 Tower Workstation User Manual

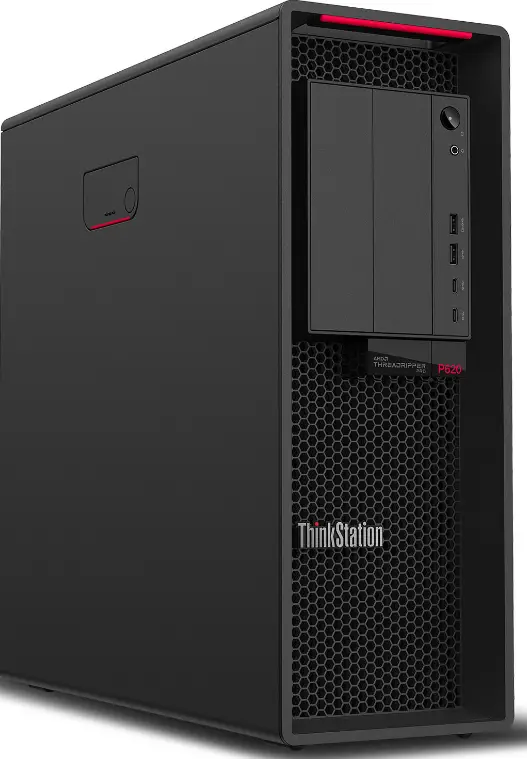

Lenovo Think Station P620 Tower Workstation

OVERVIEW

Notes: Ports are only available on selected models

PERFORMANCE

Processor Family: Up to one AMD Ryzen™ Threadripper PRO Processor
Processor

Processor Sockets: 1x Socket SP3

Operating System

• Windows 10 Pro 64
• Ubuntu Linux LTS
• No operating system

Graphics

Discrete Graphics Support: Supports up to two NVIDIA® Quadro® RTX 8000 with NVLink
Discrete Graphics Offering

Monitor Support

Monitor Support multiple displays via discrete graphics, the number of maximum monitors supported depends on the graphic card in use

Chipset

Chipset: AMD WRX80

Memory

• Max Memory[1]: Up to 1TB (8x 128GB DDR4-3200 RDIMMs)
• Memory Type: DDR4-3200 RDIMM ECC
• Memory Slots: 8 DDR4 DIMM slots, 8 channels capable
• Memory Protection: ECC

Notes: The max memory is based on the test results with current Lenovo® memory offerings. The system may support more memory as the technology develops.

Storage

Storage Support
Up to 5x 3.5″ SATA HDD + 9x M.2 SSD

• 3.5″ HDD up to 4TB each
• M.2 SSD up to 2TB each

Storage Type

Storage Controllers

Removable Storage

Optical Support: Optional one 9.0mm optical drive, DVD-ROM or DVD±RW

Card Reader

• 15-in-1 card reader
• No card reader

Multi-Media

Audio Chip
High Definition (HD) Audio, Realtek® ALC4050H codec

Power Supply

DESIGN

Mechanical

Form Factor: Tower (33L)
Dimensions (WxDxH)

Weight

Bays

• 2x 3.5″ disk bay (standard) 3x 3.5″ disk bay (optional): 2 bays come with 3rd disk or Storage Bay Upgrade Kit 1 bay via flex bay
• Flex Bays 1x flex bay, supports one of the following:
• Front Access Storage Enclosure
• 5.25″ Slim ODD and HDD cage

M.2 Slots Up to 11x M.2 SSD:

• 2 via onboard slots
• 8 via Quad M.2 to PCIe adapters (only supports PCIe 3.0 SSD)
• 1 via Single M.2 to PCIe adapter (only supports PCIe 3.0 SSD)

Expansion Slots

• Two PCIe 4.0 x8
• Four PCIe 4.0 x16

Expansion Slots Offering

• Slot 1: PCIe 4.0 x16, full height, full length, by CPU
• Slot 2: PCIe 4.0 x8, full height, full length, by CPU
• Slot 3: PCIe 4.0 x16, full height, full length, by CPU
• Slot 4: PCIe 4.0 x16, full height, full length, by CPU
• Slot 5: PCIe 4.0 x16, full height, full length, by CPU
• Slot 6: PCIe 4.0 x8, full height, full length, by IOH

CONNECTIVITY

Network: Onboard Ethernet 10GbE Ethernet, Marvell AQtion AQN-107, 1x 10GbE RJ-45
Optional Ethernet: Additional Ethernet options via PCIe adapter

WLAN + Bluetooth

• Intel® Wireless-AC 9260, 802.11ac Dual Band 2×2 Wi-Fi® + Bluetooth 5.1
• No WLAN and Bluetooth

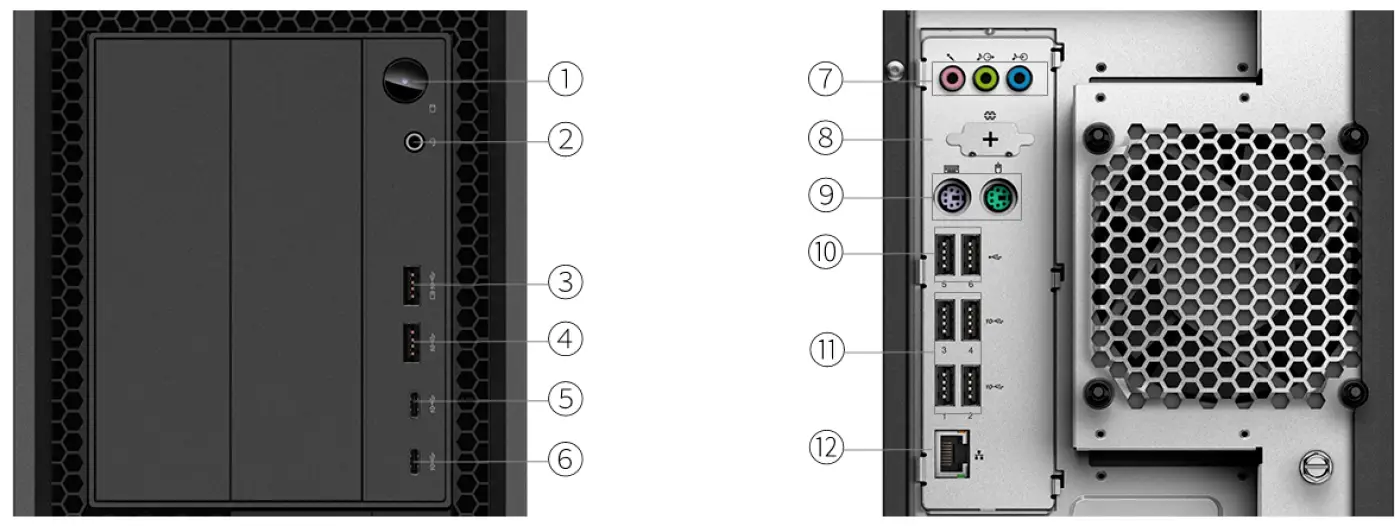

Ports

Front Ports

• 1x USB 3.2 Gen 2
• 1x USB 3.2 Gen 2 (Always On and fast charge)
• 2x USB-C 3.2 Gen 2
• 1x headphone/microphone combo jack (3.5mm)
• Rear Ports[2]
• 2x USB 2.0
• 4x USB 3.2 Gen 2
• 2x PS/2 ports (keyboard / mouse)
• 1x Ethernet (10GbE RJ-45)
• 1x line-in (3.5mm)
• 1x line-out (3.5mm)
• 1x microphone (3.5mm)

Optional Rear Ports

• 1x Thunderbolt™ 3
• 1x serial

Notes:
The transfer speed of the following ports will vary and, depending on many factors, such as the processing speed of the host device, file attributes, and other factors related to system configuration and your operating environment will be slower than the theoretical speed.

• USB 2.0: 480 Mbit/s;
• USB 3.2 Gen 1 (SuperSpeed USB 5Gbps, formerly USB 3.0 / USB 3.1 Gen 1): 5 Gbit/s;
• USB 3.2 Gen 2 (SuperSpeed USB 10Gbps, formerly USB 3.1 Gen 2): 10 Gbit/s;
• USB 3.2 Gen 2×2 (SuperSpeed USB 20Gbps): 20 Gbit/s;
• Thunderbolt 3: 40 Gbit/s;
• FireWire 400: 400 Mbit/s;
• FireWire 800: 800 Mbit/s
• For video ports on discrete graphics, please see graphics section

SECURITY & PRIVACY

Security: Chip Discrete TPM 2.0, TCG certified

Physical Locks

• (Optional) Access Panel Lock Kit with Common Key
• (Optional) Access Panel Lock Kit with Unique Key
• Kensington® Security Slot
  Chassis Intrusion Switch
  Chassis intrusion switch

BIOS Security

• Administrator password
• Power-on password

MANAGEABILITY System Management

• System Management AMD Pro Manageability

Diagnostic

• Photo-audio transfer with Lenovo PC Diagnostics for Android™ and iOS
• ThinkStation® Diagnostics for Windows
• Front 4-digit diagnostic
• Lenovo UEFI Bootable Diagnostics

SERVICE

Warranty

Base Warranty: 3-year limited onsite service with 9×5 NBD (for most models)

ENVIRONMENTAL

Operating Environment

Temperature

• Operating: 10°C (50°F) to 35°C (95°F)
• Storage: -40°C (-40°F) to 60°C (140°F)

Altitude

• Operating: -15.2 m (-50 ft) to 3048 m (10,000 ft)
• Storage: -15.2 m (-50 ft) to 12192 m (40,000 ft)

Humidity

• Operating: 20% to 80%
• Storage: 10% to 90%

CERTIFICATIONS

Green Certifications

• EPEAT™ Silver
• ENERGY STAR® 8.0 (on model 30E00006US)
• GREENGUARD®
• RoHS compliant

ISV Certifications

• Please visit: www.thinkworkstations.com/isv-certifications/
• The feature means that only one offering listed under the feature is configured on selected models.
• The feature means that one or more offerings listed under the feature could be configured on selected models.
• Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. LENOVO PROVIDES THIS

PUBLICATION “AS IS,” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

Some jurisdictions do not allow disclaimers of express or implied warranties in certain transactions, therefore this disclaimer may not apply to you. the specifications on this page may not be available in all regions and may be changed or updated without notice.
