RVCTY-71
Rear View Integration with Lip Mount Camera
for Select Toyota Vehicles
PRODUCT FEATURES:
– Automatically switches to rear-view when vehicle is in reverse gear.
– Aftermarket lip mount rear-view camera included.
– Plug & Play Installation.

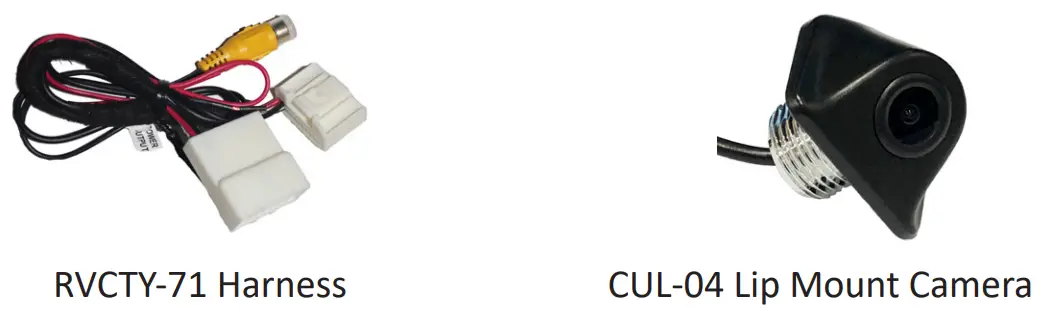

PARTS INCLUDED:
INSTALLATION DIAGRAM:
NOTE: If the camera image does not show up on the scree when the gear is put in reverse, unplug the factory radio power connector for 5 minutes then plug it back in.

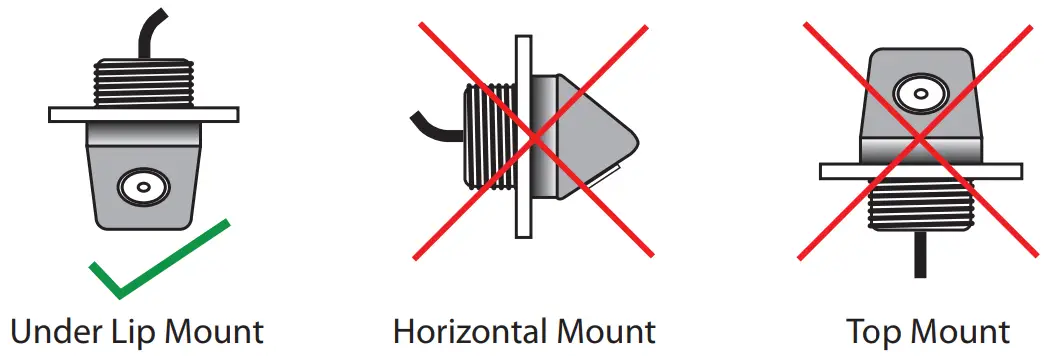

MOUNTING OPTIONS:
VEHICLE APPLICATIONS:
SCION
| 2013-2015 | FRS |
| 2013-2015 | iQ |
| 2014-2015 | tC |
| 2013-2015 | xB |
| 2013-2014 | xD |
SUBARU
| 2013-2015 | BRZ |
TOYOTA
| 2012-2014 | 4Runner |
| 2012-2014 | Camry |
| 2013 | Corolla |
| 2012-2015 | Prius |
| 2012-2014 | Prius V |
| 2012-2014 | RAV4 |
| 2013 | Sequoia |
| 2012-2014 | Venza |
