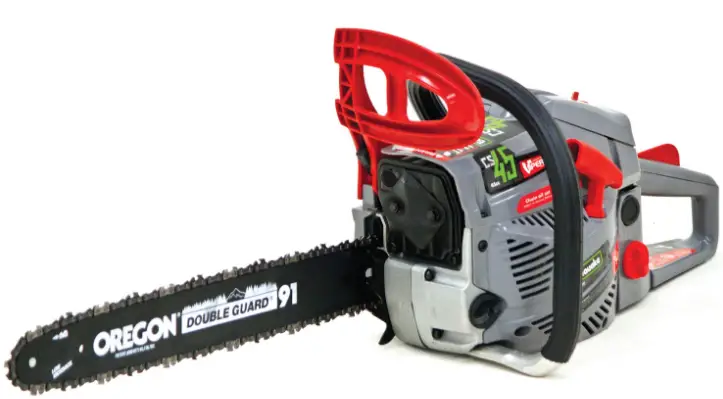

Earthquake CS4518B Chainsaw

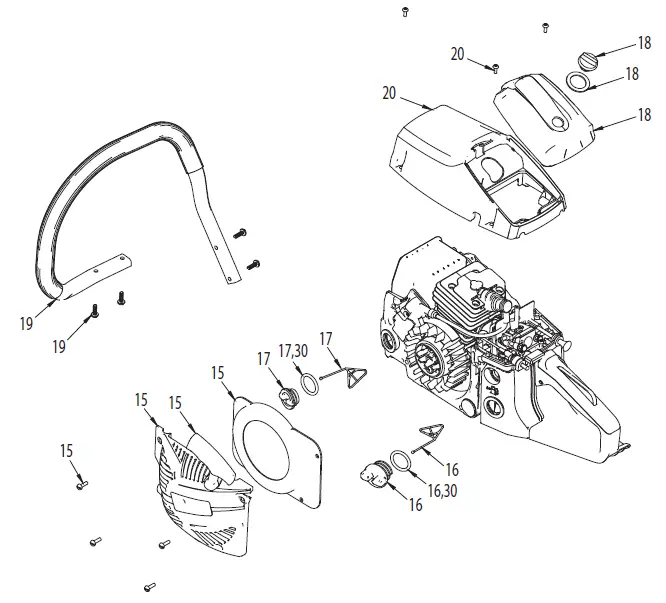

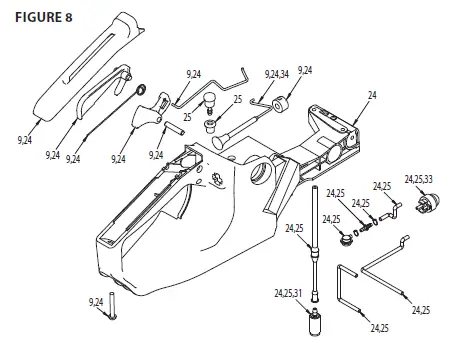

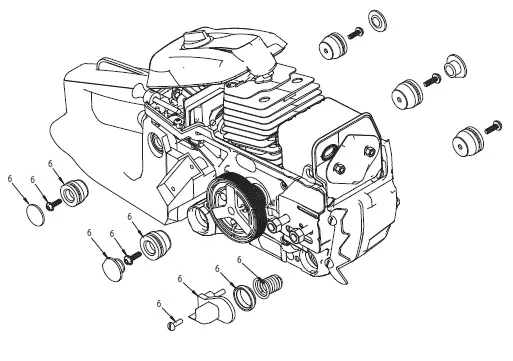

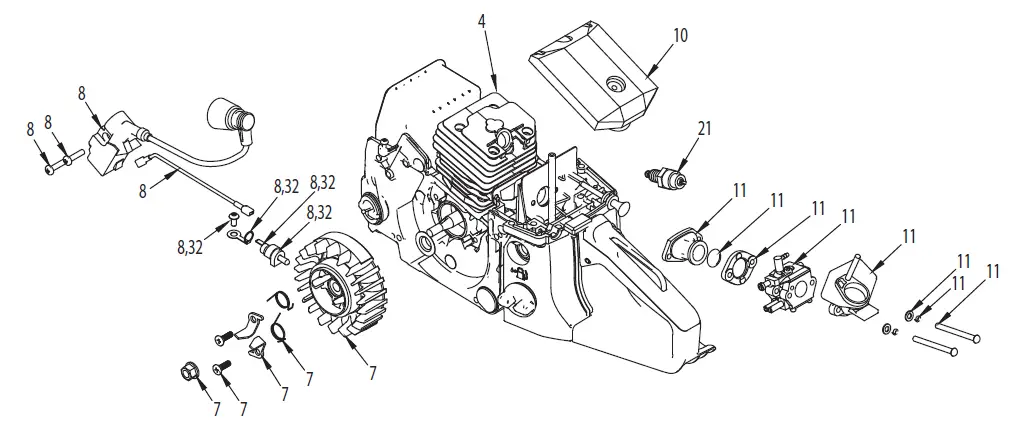

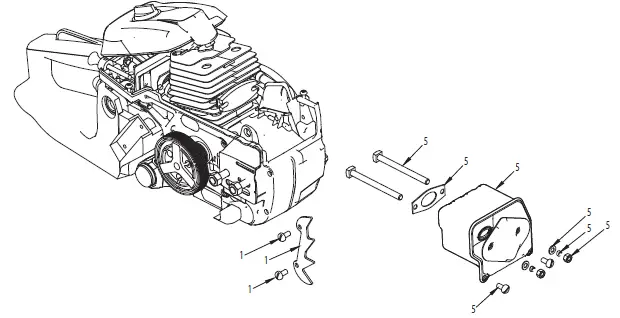

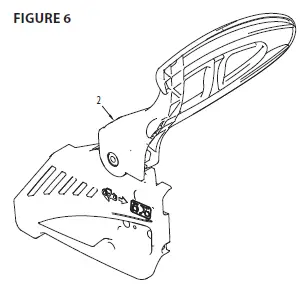

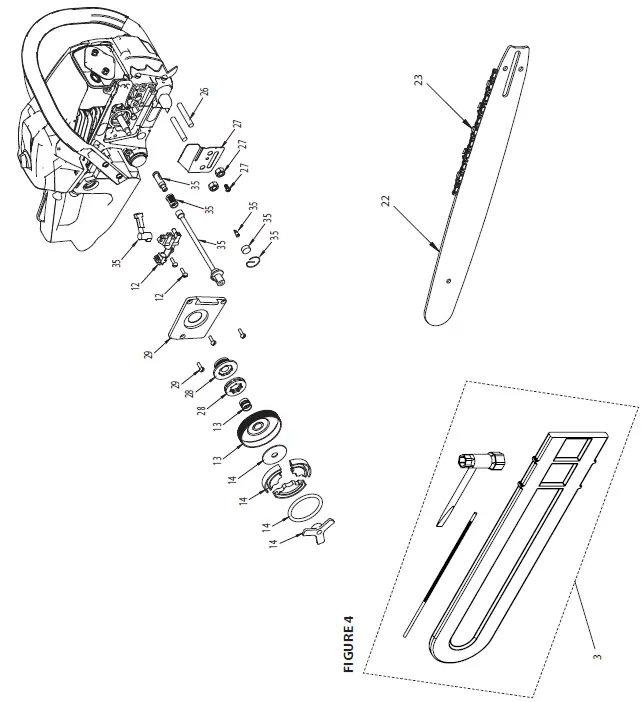

CHAINSAW PARTS BREAKDOWN
PARTS LIST
| KEY # | PART # | DESCRIPTION | QTY. |
| 1 | 14203 | KIT BUCKING SPIKE | 1 |
| 2 | 13507 | ASSEMBLY CLUTCH COVER | 1 |
| 3 | 14204 | KIT CS4518 ACCESSORY PACK | 1 |
| 4 | — | SHORT BLOCK 45CC CHAINSAW W/CHASSIS | 1 |
| 5 | 14206 | KIT MUFFLER COMPLETE | 1 |
| 6 | 14231 | KIT VIBRATION DAMPENING COMPLETE | 1 |
| 7 | 14232 | KIT FLYWHEEL REPLACEMENT | 1 |
| 8 | 14233 | KIT COMPLETE ELECTRICAL | 1 |
| 9 | 13541 | KIT TRIGGER ASSEMBLY | 1 |
| 10 | 845117 | AIR FILTER | 1 |
| 11 | 13539 | KIT CARBURETOR REPLACEMENT | 1 |
| 12 | 13538 | KIT PUMP ADJUSTABLE OIL | 1 |
| 13 | 13537 | CLUTCH DRUM W/NEEDLE BEARING | 1 |
| 14 | 13536 | ASSEMBLY CLUTCH W/WASHER | 1 |
| 15 | 13535 | KIT RECOIL CHAINSAW | 1 |
| 16 | 13534 | ASSEMBLY FUEL CAP | 1 |
| 17 | 13556 | ASSEMBLY OIL CAP | 1 |
| 18 | 13533 | KIT AIR CLEANER COVER | 1 |
| 19 | 13531 | KIT FORWARD HANDLE | 1 |
| 20 | 13532 | ASSEMBLY CYLINDER SHROUD | 1 |
| 21 | 35906 | SPARK PLUG L8RFT, NGK BPMR7A, CHAMPION RCJ7Y | 1 |
| 22 | 845122** | GUIDE BAR 18IN CHAINSAW | 1 |
| 23 | 845125** | SAW CHAIN S62 18IN CHAINSAW | 1 |
| 24 | 14257 | KIT REPLACEMENT HANDLE AND TANK | 1 |
| 25 | 16698 | KIT FUEL LINES REPLACEMENT | 1 |
| 26 | 14262 | BAR STUDS | 1 |
| 27 | 14263 | KIT GUIDE BAR BASE | 1 |
| 28 | 14264 | KIT WORM GEAR WITH SHIM | 1 |
| 29 | 14265 | KIT OILER COVER PLATE | 1 |
| 30 | 14266 | KIT ENGINE GASKETS | 1 |
| 31 | FILTER | FILTER GAS TANK | 1 |
| 32 | 14367 | KIT ON OFF SWITCH ASSEMBLY | 1 |
| 33 | 13522 | PRIMER BULB | 1 |
| 34 | 13475 | CHOKE THROTTLE | 1 |
| 35 | 15981 | KIT OIL LINES REPLACEMENT | 1 |
