Lifting365 Fms Fork Mounted Scoop Instructions

Fork Mounted
Scoop (FMS)
Instructions

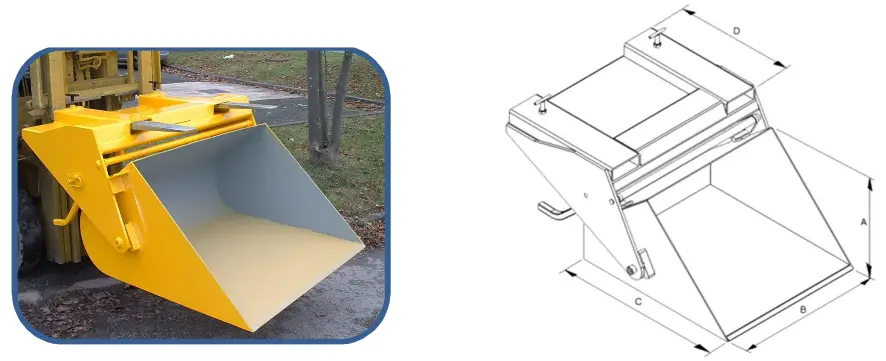

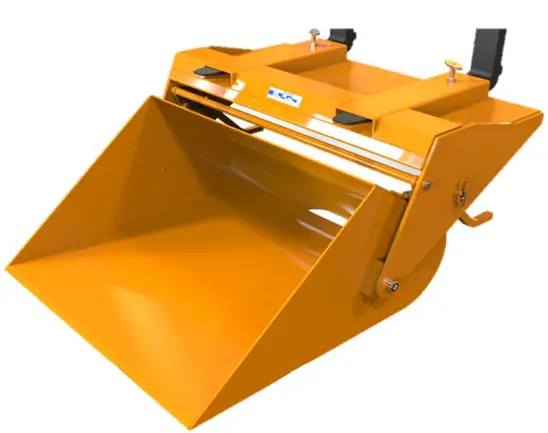

FMS Fork Mounted Scoop

Prior to initial operation the operator must read and understand the instructions contained on the plate on the left side of the attachment (as viewed from the truck).
To fit the attachment to the truck, slide the forks into the fork pockets until they are fully engaged. Screw the clamps down firmly to retain the attachment on the forks.
To fill the bucket and pick up a load of material, the material should be approached with the bucket at ground level. The truck is driven carefully forward, with the mast as near upright as possible until the bucket fills.
The forks can then be raised and the material transported as required.
The ideal scoop for emptying/filling sands and aggregates.
Compact – design scoop with easy filling characteristics and good manoeuvrability. The conventional scoop for aggregate and sand.
