Chrome Bath Pillar Taps
Installation Guide
KTP 18-0 Clear Water Submersible Pump
Check website for individual product guarantee’s. Some parts of the product ie valve are covered by a 12 month guarantee See our website T & C’s for details. Your guarantee can be invalid if the pre-installation checks are not carried out, installation is not carried out as per this guide and correct maintenance instructions are not followed.
DIAGNOSIS
Draining / Due to the design of some tap spouts, water will be held and drip until emptied. Debris inside valve / Remove valve and flush under running water whilst turning the spindle Insufficient water pressure / Increase water pressure possibly installing a pump. System pressure should have been confirmed as meeting minimum requirement pre-installation. Blockage / Check water is reaching the tap, check valve, tap tails and supply ipes. Isolation valves not fully opened .

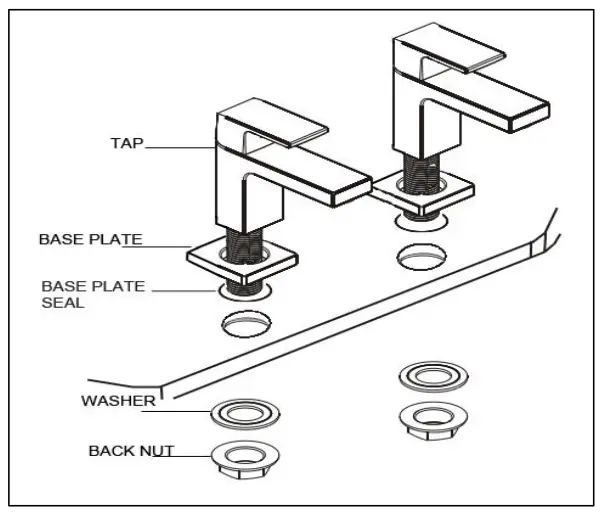

Basin/Bath/Sink Tap Installation and Maintenance

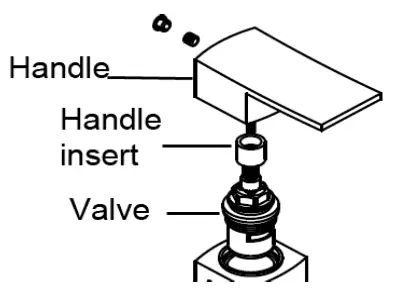

To Remove Valve
TURN OFF WATER SUPPLY TO MIXER
> Remove screw cap cover (This could be at front or back of handle)
> Loosen grub screw using hex key
> Pull handle from tap
> Remove insert (If included in your product)
> Using a spanner remove valve
> Carry out maintenance
> Replace valve and tighten
> Replace all components

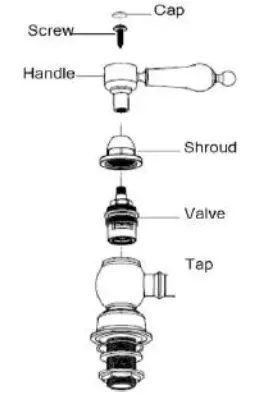

To Remove Valve
> Remove H or C indicator
> Using a screwdriver remove handle screw
> Pull handle from tap
> Unscrew shroud
> Using a spanner remove valve
> Carry out maintenance
> Replace valve and tighten
> Replace all components

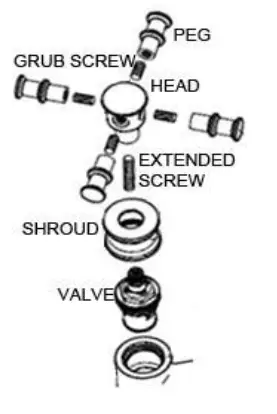

Unscrew all handle pegs
> Remove grub screws using hex key
> Pull head section from tap
> Remove extended screw
> Unscrew shroud
> Using a spanner remove valve
> Carry out maintenance
> Replace valve and tighten
> Replace all components

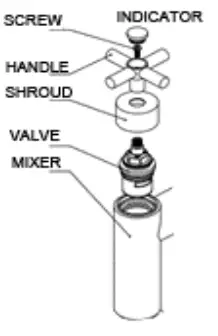

Remove H or C indicator
> Using a screwdriver remove handle screw.
> Pull handle from tap.
> Unscrew shroud.
> Using a spanner remove valve.
> Carry out maintenance.
> Replace valve and tighten.
> Replace all components.
Visit Our Website For Assistance
Please retain this document for future reference
