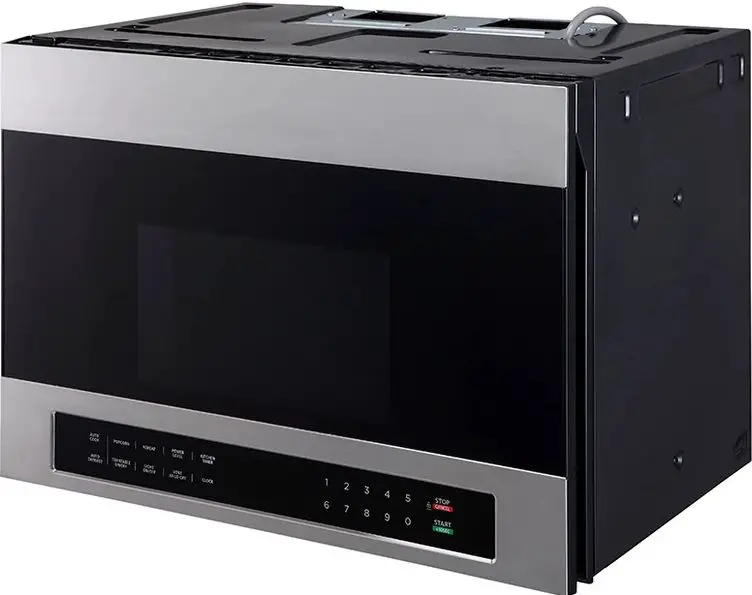

Avanti MOTR13D3S Over the Range Microwave

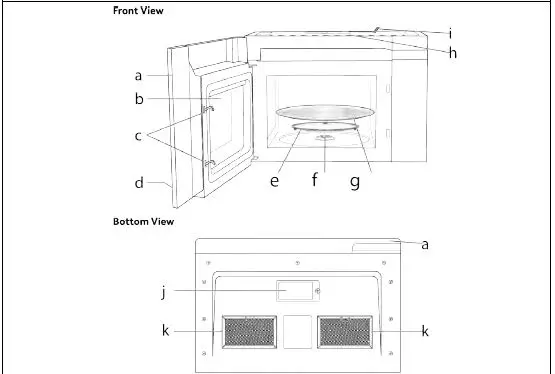

Parts and Features

IMPORTANT SAFETY INSTRUCTIONS

• Read all instructions before using the appliance.
• Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TOEXCESSIVE MICROWAVE ENERGY” found on page 6.
• This appliance must be grounded. Connect only to a properly grounded outlet.
• Install or locate the appliance only in accordance with the provided installation instructions.
• When cleaning surfaces of door and oven that comes together on the closing door, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
• Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling.
• Visible bubbling or boiling when the container is removed from the microwave oven is not always present.
• Some products such as whole eggs and sealed containers-(for example, closed glass jars) may explode and should not be heated in a microwave oven.
• Use this microwave oven only for its intended use as described in this manual.
• Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.
• As with any appliance, close supervision is necessary when used by children.
• Do not operate this microwave oven if it has a damaged cord or plug if it is not working properly, orif it has been damaged or dropped.
• To reduce the risk of fire in the oven cavity:
• Do not overcook food. Carefully attend the microwave oven if paper, plastic, or combustible materials are placed inside the oven to facilitate cooking.
• Remove wire twist-ties from bags before placing the bag in the oven.
• If materials inside the oven should ignite, keep the oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.
• Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
• Only qualified service personnel should service this appliance. Contact the nearest authorized service facility for examination, repair or adjustment.
• Do not cover or block any openings on this appliance.
• Do not use this microwave oven to heat corrosive chemicals (for example, sulfides and chlorides).
• Vapors from such corrosive chemicals may interact with the contact and springs of the safety interlock switches thereby rendering them inoperable.
• Do not immerse the cord or plug in water.
• Keep the cord away from heated surfaces.
• Do not let the cord hang over the edge of the table or counter.
• Never clean appliance parts with flammable fluids. The fumes can create a fire hazard explosion.
• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or explosion.
• Do not store this appliance outdoors. Do not use this product near water – for example near kitchen sink, in a wet basement, near a swimming pool, or similar locations

INSTALLATION INSTRUCTIONS

BEFORE USING YOUR MICROWAVE OVEN

• Remove the exterior and interior packing.
• Check to be sure you have all of the following parts:
• Glass Tray
• Turntable Roller Assembly (Roller or Roller Ring)
• Instruction Manual / Installation Manual
• Inspect the oven after unpacking for any visual damage such as:
• Misaligned Door
• Damaged Door
• Dents or Holes in Door Window and Screen
• Dents in Cavity

INSTALLATION OF YOUR MICROWAVE OVEN

• Do not block air vents. If they are blocked during operation, the oven may overheat and eventually cause oven failure.
• Poor television reception and radio interference may result if the oven is located close to a TV, radio, antenna, or antenna wire.
• Position the oven as far from them as possible.
• Clean the interior surface with lukewarm water using a soft cloth.
• Keep the oven away from hot air, steam or splashing liquids when choosing a place to locate it, otherwise, the unit’s operation may be adversely affected, causing it to break down.
• Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption.
• Plug the appliance into an exclusive properly installed-grounded wall outlet.
• Do not under any circumstances cut or remove the third (ground) prong from the power cord.
• Any questions concerning power and or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.
• DO NOT place anything on the top of the oven.
• DO NOT remove the turn-table drive shaft.

GENERAL USE

• DO NOT attempt to tamper with or make any adjustments or repairs to door, control panel or any other part of the oven.
  Do NOT remove the outer panel from the oven. Repairs should only be done by qualified service personnel.
• DO NOT operate the oven empty. The microwave energy will reflect continuously throughout the oven if no food or water is present to absorb energy.
• If a fire occurs in the oven, touch the START/STOP pad and LEAVE THE DOOR CLOSED. Disconnect thepower cord, or shut off power at the fuse or circuit breaker panel.
• DO NOT attempt to dry clothes, newspapers or other materials in the oven. They may catch on fire.
• DO NOT use recycled paper products, as they may contain impurities, which may cause sparks and/or fires when used.
• DO NOT hit or strike control panel. Damage to controls may occur.

UTENSILS

• METAL CONTAINERS or dishes with metallic rims should not be used. Arcing may occur.
• METAL TWIST-TIES may not be used in the microwave oven.
• DO NOT use SEALED JARS or NARROW NECK bottles for cooking or reheating. They may shatter.
• DO NOT use CONVENTIONAL THERMOMETERS in the microwave oven. They may cause arcing. Useonly those labeled “Microwave Safe” and follow all directions. Check the food in several places.
• Remove PLASTIC STORE WRAPS before cooking or defrosting in the oven.

RECOMMENDED

• Microwave browning dish – Use to brown the exterior of small items such as steaks, chops, or pancakes. Follow the directions provided with your browning dish.
• Microwaveable plastic wrap – Use to retain steam. Leave a small opening for some steam to escape and avoid placing it directly on the food.
• Paper towels and napkins – Use for short-term heating and covering; these absorb excess moisture and prevent splattering. Do not use recycled paper towels, which may contain metal and could ignite.

FOOD

• Paper towels and napkins – Use for short-term heating and covering; these absorb excess moisture and prevent splattering. Do not use recycled paper towels, which may contain metal and could ignite.
• Never use your microwave oven for HOME CANNING. The oven is not designed to permit proper canning. Improperly canned food may spoil and be dangerous to consume.
• COOKING TIMES are approximate. Factors that may affect cooking are starting temperature, altitude, volume, size, and shape of food and utensils used. As you become familiar with the oven, you will be able to adjust for these factors.
• It is better to UNDERCOOK RATHER THAN OVERCOOK foods. If food is undercooked, it can always be returned to the oven for further cooking. If food is overcooked, nothing can be done.
• Always start with minimum cooking times.
• SMALL QUANTITIES of food or foods with LOW MOISTURE content can burn, dry out or catch on fire if cooked too long.
• DO NOT boil eggs in their shell. Pressure may build up and the eggs will explode.
• Potatoes, apples, egg yolks, whole acorn squash, and sausage are examples of food with NON-POROUSSKINS. These must be pierced before cooking to prevent bursting.
• POPCORN must be popped in a microwave corn popper. Microwave-popped corn produces a lower yield than conventional popping.
• DO NOT use the oven for popcorn unless popped in a microwave-approved popcorn utensil or unless it’s commercially packaged and recommended especially for microwave ovens.
• DO NOT use oil unless specified by the manufacturer.
• DO NOT attempt to deep-fat fry in your oven.
• HEATED LIQUIDS can ERUPT if not mixed with air. DO NOT heat liquids in your microwave oven without first stirring.

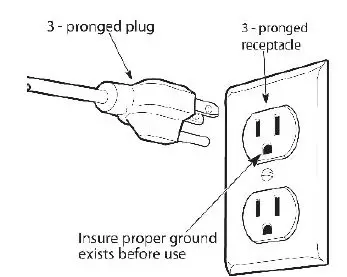

GROUNDING INSTRUCTIONS

The power cord of this appliance is equipped with a three-prong plug which mates with standard three-prong wall outlets to minimize the possibility of electrical shock. Do not under any circumstances cut or remove the third ground prong from the power cord supplied. Do not use the extension cord. If the power supply cord is too short, have a qualified electrician or serviceman to install an outlet near the appliance. This appliance requires a standard 115/120 Volts A.C. ~/60Hz electrical outlet with three-prong ground

OPERATING YOUR MICROWAVE OVEN

• Although your oven is provided with safety features, it is important to observe the following:
• It is important not to defeat or tamper with safety interlocks.
• Do not place any object between the oven’s front face and the door or allow residue to accumulate on sealing surfaces.
• Wipe the sealing area frequently with a mild detergent, rinse and wipe dry.
• Never use abrasive powders or pads.
• When opened, the door must not be subjected to strain, for example, a child hanging on an opened door or any load which could cause the oven to fall forward and cause injury and damage to the door.
• Do not operate the oven if it is damaged, until it has been repaired by a qualified service person.
• It is particularly important that the oven closes properly and that there is no damage to the:
• Door (bent)
• Hinges and latches (broken or loosened)
• Door seals and sealing surfaces
• The oven should not be adjusted or repaired by anyone except properly qualified service personnel

CONTROL PANEL

MICROWAVE-SAFE

• Browning dish (Sold separately. Follow manufacturer recommendations.)
• Ceramic glass, Glass
• China, Earthenware (Follow manufacturer recommendations.)
• Melamine (Follow manufacturer recommendations.)
• Paper towels, Paper Plates, Napkins (Use non-recycled paper.)
• Plastic wraps, Bags, Covers, Dinnerware, Containers (Follow manufacturer recommendations.)
• Pottery and Clay (Follow manufacturer recommendations.)
• Silicone bakeware (Follow manufacturer recommendations.)
• Wax paper

NOT MICROWAVE-SAFE

• Metal cookware and bakeware
• Straw or Wicker
• Gold, silver or pewter
• Non-approved meat thermometers, skewers
• Twist ties
• Foil liners, such as sandwich wrappers
• Staples
• Objects with gold or silver trim or with metallic glaze
• Wood

To Test Cookware/Dinnerware:
Place dish in microwave oven with 1 cup (250 mL) of water beside it. Program 1 minute of cook time at 100%. If dish becomes hot and the water stays cool, do not use the dish in the microwave oven

AUTO COOK

The AUTO COOK function automatically sets the appropriate cooking time calculated by sensing the moisture level of the food or beverage being cooked. The AUTO COOK function is programmed to cook the following items: Potato, Fresh Vegetables, Frozen Vegetables, Frozen Dinner, White Rice, Frozen Breakfast and Ground Meat. For best results when cooking, use microwave-safe containers and cover the containers with vented lids or vented plastic wrap

DEFROST
The Defrost function is programmed to automatically defrost select items by weight. The Defrost control allows you to select among the following items: Meat, Poultry, Fish and Bread

REHEAT
The Reheat function is programmed to reheat the following items: Beverages, Dinner Plate, Pizza, Soup/Sauce, and Casserole. The Reheat function sets the appropriate heating time automatically. Depending on the item being reheated, the heating time is calculated by either the amount of food or beverage (Timed Cooking) or by sensing the moisture level of the food or beverage (Sensor Cooking). For best results when reheating items that use Sensor Cooking, usemicrowave- safe containers and cover the container with vented lids or vented plastic wrap

MICROWAVE OVEN CARE

• Before cleaning, make sure all controls are off and the microwave oven is cool. Always follow label instructions on cleaning products.
• To avoid damage to the microwave oven caused by arcing due to soil buildup, keep the oven cavity, top grille and the area where the door touches the oven frame clean.
• Using a warm water and mild soap solution and a soft cloth or sponge, clean the oven cavity, frame and oven exterior.
• Rinse with clean warm water and dry with a soft cloth

GREASE FILTER(S)

• Remove the grease filter. Grasp the metal ring, slide the filter toward the back, and then gently pull the filter downward. Repeat for the second filter.
• Soak the grease filters in hot water with a mild detergent added. Rinse well and shake to dry.
• Reinstall the grease filter. Insert the back edge of the filter into the opening, and then gently push the filter up into place. Repeat for the second filter.

CHARCOAL FILTER

A charcoal filter must be installed in the microwave oven when it is used in a non-vented (recirculating) installation. Your microwave oven comes from the factory with the charcoal filter installed.
The charcoal filter cannot be cleaned, so it must be replaced at least every 6 months or more often depending on use. To order a replacement charcoal filter for your model, contact the Customer Satisfaction Center. See “Back Cover” for contact information.

PROBLEMS WITH YOUR APPLIANCE?
You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer.

First try the solutions suggested here to possibly avoid the cost of a service call.

SERVICE FOR YOUR APPLIANCE
We are proud of our customer service organization and the network of professional service technicians that provide service on your Avanti appliances. With the purchase of your Avanti appliance, you can be confident that if you ever need additional information or assistance, the Avanti Products Customer Service team will be here for you. Just call us toll-free.

WARRANTY

YOUR AVANTI PRODUCTS WARRANTY
Avanti Products warrants that the product is free from defects in materials and/or workmanship for a period of twelve (12) months from the date of purchase by the original owner. The foregoing timeline begins to run upon the date of purchase, and shall not be stalled, tolled, extended, or suspended for any reason whatsoever unless described in detail in the warranty document. For one year from the date of purchase by the original owner, Avanti products will, at its option, repair or replace any part of the product which proves to be defective in material or workmanship under normal use. Avanti Products will provide you with a reasonably similar product that is either new or factory refurbished. During this period Avanti Products will provide all parts and labor necessary to correct such defects free of charge, so long as the product has been installed and operated in accordance with the written instructions in this manual. In rental or commercial use, the warranty period is 90 days. All Avanti appliances of 4.2 cubic feet capacity or less must be brought/sent to the appliance service center for repair

LIMITED TWO YEAR WARRANTY
During the second year of use, Avanti Products will furnish, as needed a replacement part at no charge in exchange for any original part, which fails due to a defect in material or workmanship. All labor and transportation charges are the responsibility of the consumer

LIMITED SEVEN YEAR WARRANTY
For an additional 6-year period beyond the first year of the general coverage of this warranty, Avanti Products will replace a magnetron tube, which fails due to a defect in material or workmanship. All labor and transportation charges are the responsibility of the consumer

FAQS

can this unit be vented out the back?
The Microwave is shipped assembled for a Recirculating Ventilation installation, but it is designed to adapt to Outside Top Exhaust and Outside Back Exhaust methods as well

Does this have an exhaust fan to circulate heat from stove below?
Yes it does have an exhaust fan to circulate heat from stove below

Where Does this exhaust? Don’t see any vents on the front
From the bottom we see vents on the front

Can the fan vent out (ducted) or just recirculate?
The fan can vent out .

Can this be hung from the back (i.e. not hang from the cabinet above)?
Not without a lot of work. It has a bracket at the bottom rear and then hangs from two bolts going into the top front through the floor of the upper cabinet.

Can it be wall solely mounted or is cabinet mount required?
Most of the weight is held from the cabinet above

How does this mount ? Can it be hung from top cabinet ?
Yes from the bottom of the top cabinet

Is the wall mount included in box ?
We paid someone to install it, but it came with everything necessary to install under the kitchen cabinet.

dimensions 24 x 16.5 x 17 : which is height, width, length?
24 is the width. Other two are close enough to each other

Will this microwave fit into a 24″ finished opening?
Yes! this microwave fit into a 24″ finished opening

Is there a warranty?
Yes,12 month manufacturer warranty available

Is the 115 volts compatable with u.s.a. voltage?
yes the 115 volts compatable with u.s.a. voltage

About how long is the electic cord or is it hard wired?
The electrical cord was fairly short, maybe 18-24″

How does the door open?
There us a hand slot under the right side Easy open
