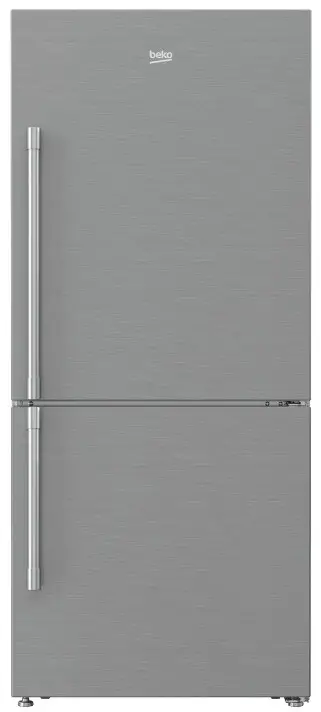

beko LOGO30” Bottom-Freezer Refrigerator with Ice Maker
BFBF3018SSIMbeko BFBF3018SSIM 30 Inch Bottom Freezer Refrigerator with Ice Makerbeko BFBF3018SSIM 30 Inch Bottom Freezer Refrigerator with Ice Maker - ICONCEE Tier 1

BFBF3018SSIM 30 Inch Bottom-Freezer Refrigerator with Ice Maker

GENERAL PROPERTIES

Cooling SystemNeoFrost Dual Cooling Technology
Control SystemElectronic Controls
FinishFingerprint-free Stainless Steel
TypeFreestanding
Field Reversible DoorNo

CAPACITY

Total Net Volume16.2 cu. ft.
Fresh Food Net Volume11.1 cu. ft.
Freezer Net Volume5.1 cu. ft.

PERFORMANCE

Fresh Food Temperature Range*33° F to 46° F
Freezer Temperature Range*-8° F to 5° F
Freeze GuardWorks in Temperatures between 32° F and 110° F
ModesOn/Off Power, On/Off Icemaker, Temperature Control, Quick Freeze, Vacation
ENERGY STAR® CertifiedYes
Annual Energy Consumption528 kWh/year

*Actual temperatures may vary upon different options.

PREMIUM TECHNOLOGY

EVERFRESH+™ WITH ACTIVE FRESH BLUE LIGHT
Our EverFresh+ with Active Fresh Blue Light technology keeps fresh food fresher three times longer than the average refrigerator — for up to 30 days! Our technology retains vitamins and nutrients that simulates natural lighting conditions, extending the photosynthesis process of fruits and vegetables in your refrigerator.

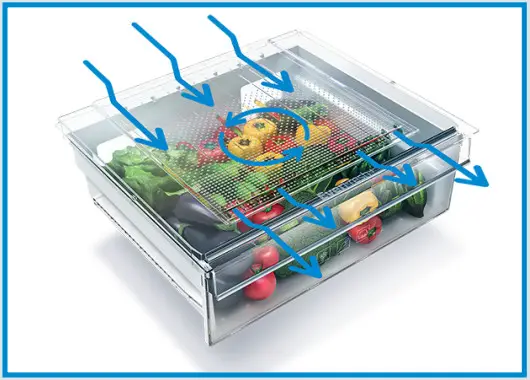

beko BFBF3018SSIM 30 Inch Bottom Freezer Refrigerator with Ice Maker - FIGURE 1

IONGUARD
Advanced IonGuard technology creates a fresh air environment inside your refrigerator to protect and preserve foods longer and eliminate odor transfer.

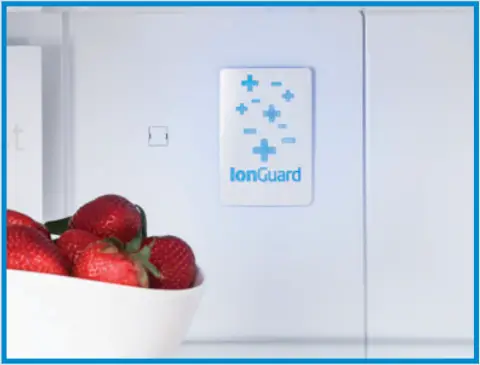

beko BFBF3018SSIM 30 Inch Bottom Freezer Refrigerator with Ice Maker - FIGURE 2

FREEZE GUARD
Beko freezers will work in ambient temperatures between 32°F and 110°F without any loss of performance at any pre-set temperature of the unit, thanks to effective usage of inverter compressor and electronic control technology.

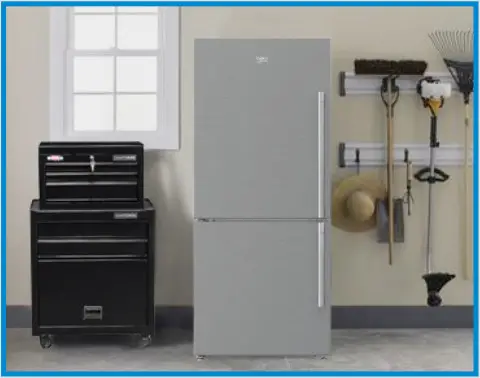

beko BFBF3018SSIM 30 Inch Bottom Freezer Refrigerator with Ice Maker - FIGURE 3

FRESH FOOD

Ever Fresh+Yes
Active Fresh Blue LightYes
Ion GuardYes
Electronic Control Display TypeDigital Inner Display
Auto DefrostYes
Interior IlluminationLED- Side Walls
Shelves2 – Full-depth Glass Shelves
Crisper1 – Humidity Controlled
Door racks3
Wine RackYes
CompressorVariable Speed VCC

FREEZER

Interior IlluminationYes
Number of Freezer Drawers3
Auto DefrostYes
Wire Shelf3
Automatic Ice MakerMakes up to 6 lbs./day

TECHNICAL INFORMATION

Required Power Supply120 V / 60 Hz
Rated Current1.9 A
Noise Level43 dBA
RefrigerantR600a
Plug TypeNEMA 3-Prong
Power Cord Length6 ft.

DIMENSIONS

H x W x D (in)67 3/4  x  29 1/8  x  28 1/4
H x W x D (mm)1720 x 740 x 719
Height with Hinge Cap (in)67 3/4
Width (in)29 1/8
Depth with Handles (in)29 9/16
Depth without Handles (in)28 1/4
Depth without Door (in)25 5/8
Product Weight (lbs)208
Product Weight (kg)94.6
Packed Weight (lbs)223
Packed Weight (kg)101.5

* Depth is with door/without handles

ACCESSORIES

Water FilterNo

WARRANTY

All Products2 -year Full Warranty
Sealed System Parts Only5-year Warranty
Pro Smart Inverter Motor10-year Warranty — parts only

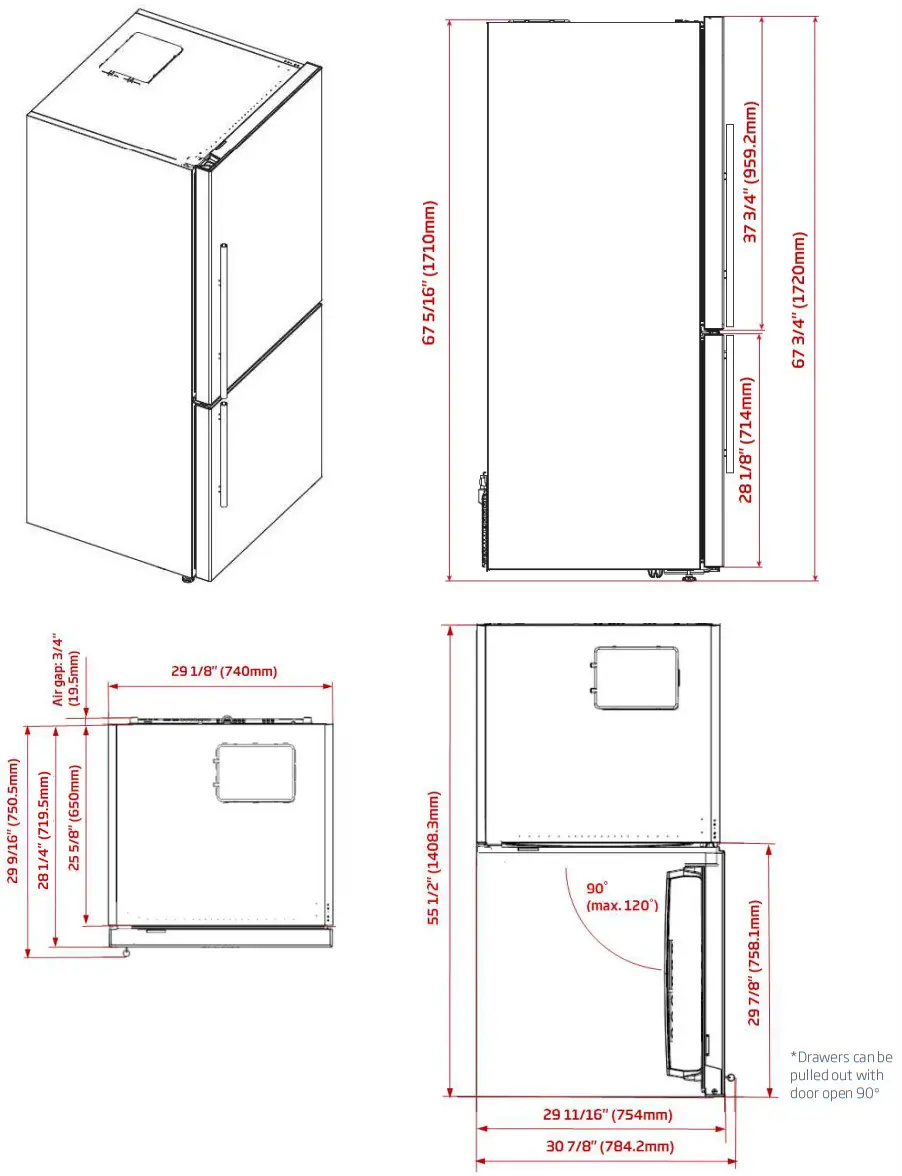

beko BFBF3018SSIM 30 Inch Bottom Freezer Refrigerator with Ice Maker - FIGURENOTE TO THE INSTALLER: All height, width, and depth dimensions are shown in inches (as well as metric). Beko U.S., Inc. reserves the absolute and unrestricted right to change product materials and specifications, at any time, without notice. Please visit our website, www.BekoAppliances.com, or call 888.352.2356 to verify the latest specifications with final dimensional data and other details prior to installation and making a cutout. Applicable product limited warranty information may be found in accompanying product materials, or you may contact your account manager for further details. Proper installation is the responsibility of the installer. Product failure due to improper installation is not covered under the Limited Warranty.

© 2021 Beko U.S., Inc.
888.352.BEKO(2356)
beko.com/en-us
08/11/21
