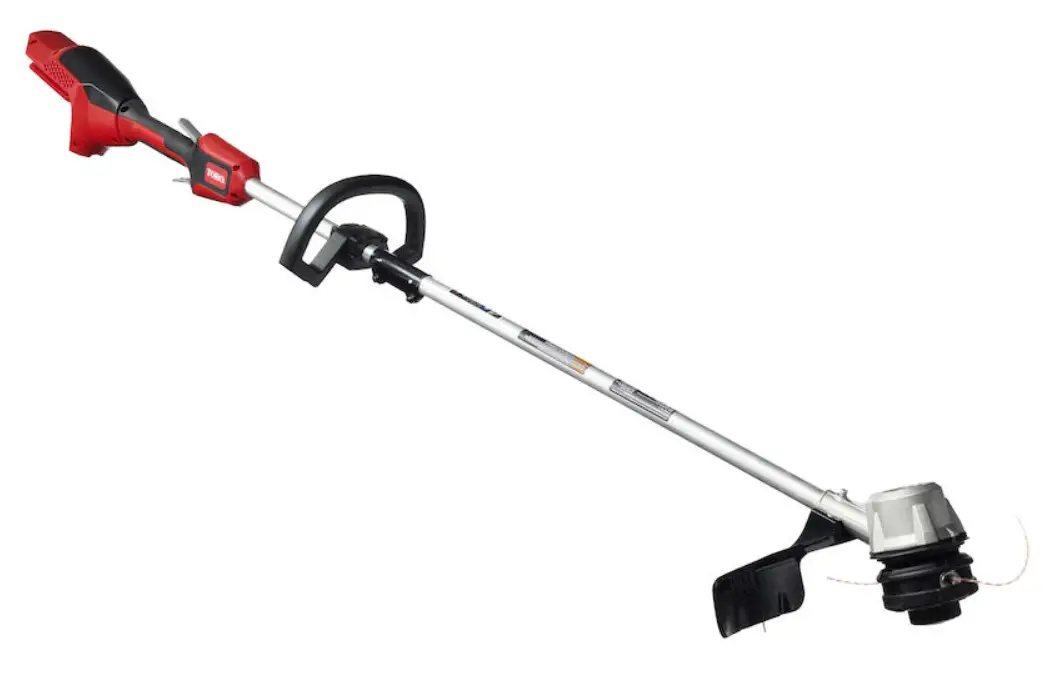

TORO 51835T Flex-Force Power System 60V MAX String Trimmer
Parts Catalog
Model No. 51835T—Serial No. 319000001 and Up

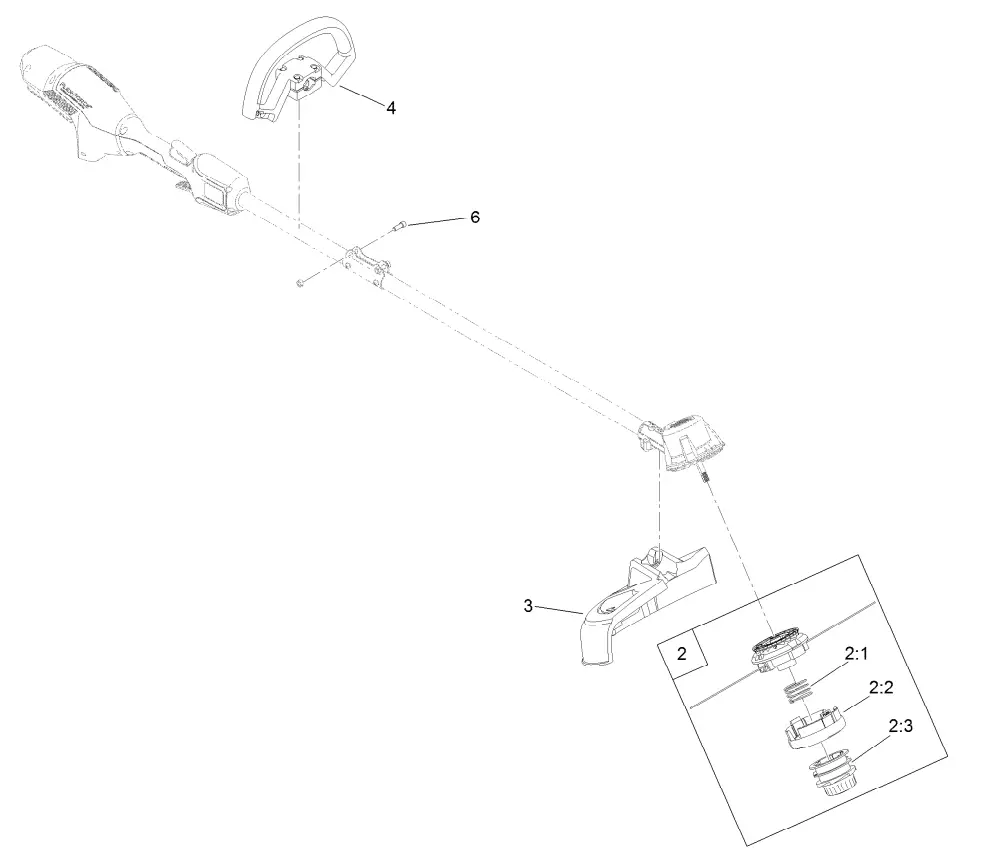

60V Cordless String Trimmer Assembly
| Ref. | Part Number | Qty. | Description |
| 2 | 139-8250 | 1 | Bump. Feed Head ASM |
| 2:1 | 139-8252 | 1 | Spring-Spool |
| 2:2 | 139-8253 | 1 | Cap-Feed, Bump |
| 2:3 | 139-8254 | 1 | Spool |
| 3 | 140-2151 | 1 | Shield-Grass |
| 4 | 140-2152 | 1 | Handle-Trimmer |
| 6 | 3274-15 | 1 | Screw-HSH |
Attachments and Accessories
For 51835T Flex-Force Power System 60V MAX String Trimmer
Product Name Model/Part
60V 2.0mm Trimmer Line 30.5 Meters…………………………………………………………………………………….. 88201
60V 2.4mm Trimmer Line 30.5 Meters…………………………………………………………………………………….. 88202
60V Battery Charger 1 Amp CE……………………………………………………………………………………………… 81801
60V Battery Charger 1 Amp Australia ……………………………………………………………………………………….81101
60V Battery Charger 2 Amp CE……………………………………………………………………………………………… 81802
60v Battery Charger 5 Amp International…………………………………………………………………………………. 81805
60V 2.0 AH Battery International…………………………………………………………………………………………….. 81820
60V 2.5 AH Battery CE …………………………………………………………………………………………………………. 81825
60V 4.0 AH Battery CE …………………………………………………………………………………………………………. 81850
60V 6.0 AH Battery CE …………………………………………………………………………………………………………. 81860
60V 7.5 AH Battery CE …………………………………………………………………………………………………………. 81875
Register at www.Toro.com.
