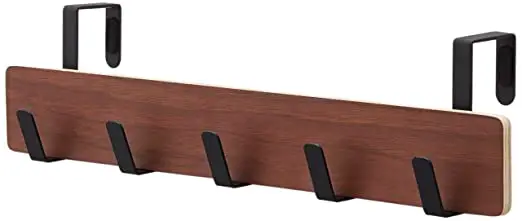

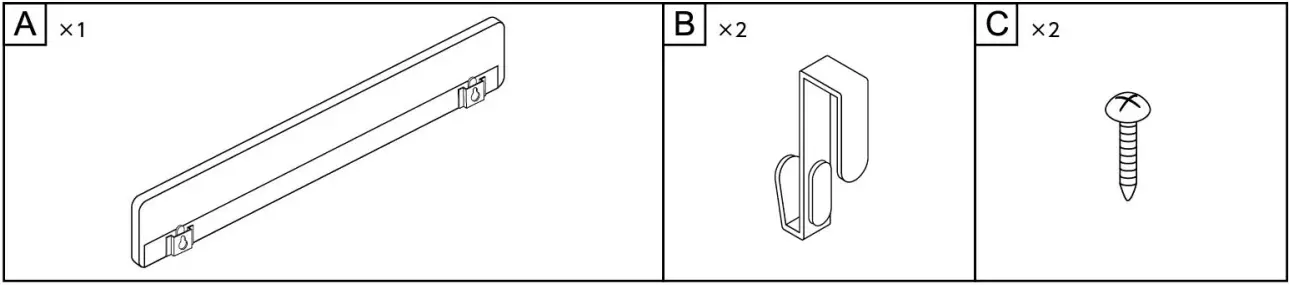

Over-the-door Hook Hanger Ply

Thank you for purchasing this item from Yamazaki Inc. Please refer to the following instructions before using the product. Please use it properly, and take good care of it.

Fitting instructions

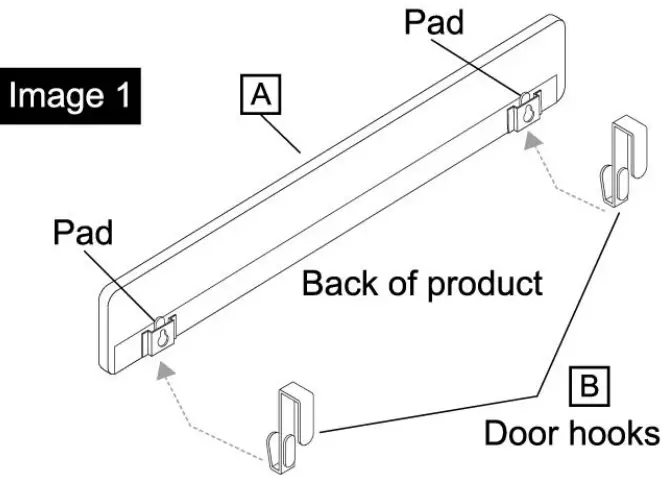

How to Attach to a Door

Following the chart below, attach the two door hooks provided to the back of the product. Push the hooks from the top to the bottom of the pads and hang them on a door.

• Hang the product gently to avoid damaging the door
• Take care that it does not hinder the opening and closing of the door

COMPATIBLE DOORS

• The thickness of doors, folding doors must be approx. 2.7 to 3.6 cm. -There must be at least 3mm of open space between the door and the upper wall

*This product is suited to work with standard size doors
*Do not use this product on glass doors

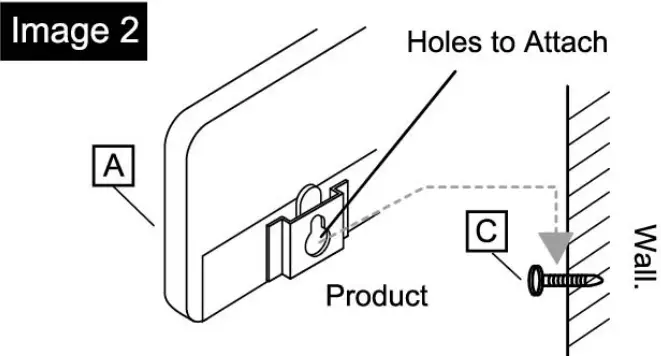

How to attach to the wall

When attaching the product to a wall, first screw the two wooden screws provided into the wall the same distance apart as the holes on the back of the product. (When doing so, leave about 5mm of each screw sticking out of the wall)

COMPATIBLE WALLS
Pillars, Lintel, Wood, Printed Plywood Walls (Horizontally designed)

INCOMPATIBLE WALLS

•  Walls made of stone, plaster or mortar
• Walls that are 5 mm or less of thin wood
• Thick walls made of concrete, blocks or bricks
• Tile or walls jointed with tile

• 5 hooks:Max loading weight 5lbs (2.5kg *lhook=0.5kg. The fittings pack contains small items which should be kept away from young children


(When doing so, leave about 5 mm of each screw sticking out of the wall)
Attach the product to the screws by the holes in the back and ensure that it is secure. Test the  strength of the screws and the product every once in a while; if it becomes unsteady, move it to another location.
>K Attach the product in a location where the screws will fit in the wall

Specification

Ply Oyer-the-door Hook Hanger

SIZE

• 17.7″w x 3.5″d x 4.1″h
• 45w x 9d x 10.5h cm
• 17.7″w x 1.6″d x 2.4″h
• 45w x 4d x 6h cm

MATERIAL

• Steel
• Wood

Made In China. Designed In Japan
