Brodbeck Ironworks Buffing Attachment Sanding Belt Instruction Manual

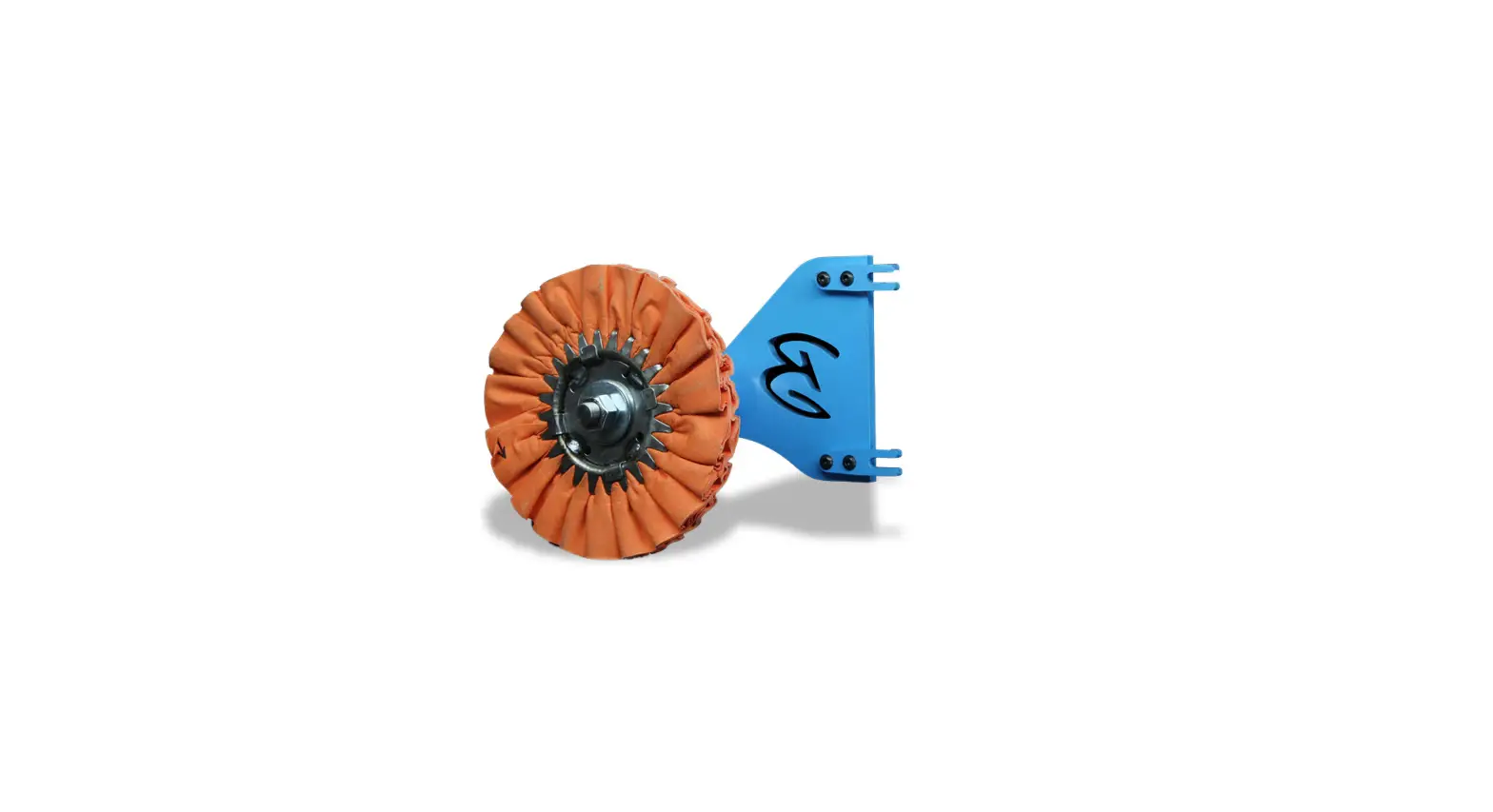

BRODBECK IRONWORKS Buffing Attachment Sanding Belt

Thank you for purchasing the Buffing Attachment. Please follow the assembly instructions carefully to ensure proper usage and to avoid any issues. If you have any questions or concerns, please contact Brodbeck Ironworks LLC.

Product Parts List

Tool List:

• 3/4 COMBO WRENCH & SOCKET
• 5/32 HEX KEY (ALLEN WRENCH)
• 1/8 HEX KEY (ALLEN WRENCH)
• 15/16 COMBO WRENCH

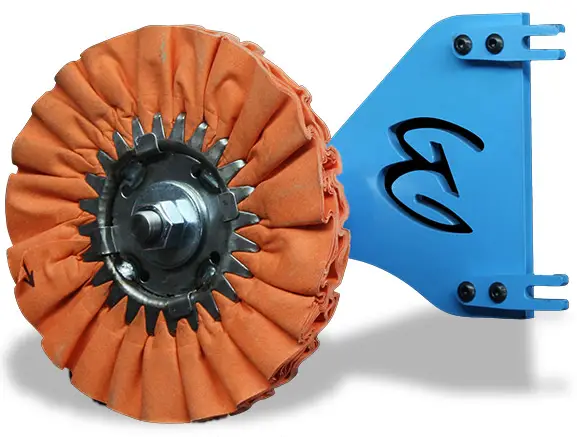

Product BUFFING ATTACHMENT ASSEMBLY

1. Attach the bracket to the quick change tab using the 1/4 button head screw and a 5/8 hex nut. Repeat for the second bracket.
2. Attach the quick change accessory wheel to the bracket using the buffer drive wheel and the buffing arbor. Use the 5/16 spacer,1/4-20 screw, and 5/8 flat washer to secure the buffer drive wheel to the quick change accessory wheel. Repeat for the second bracket.
3. Be careful not to overtighten bearings. The wheel should spin freely but there shall be no extra space between the bearings and nut or bolt head.

Please note that if you have any issues with assembly or missingparts, please contact Brodbeck Ironworks LLC immediately.

Contact Brodbeck Ironworks LLC for any questions or concerns before operating this equipment
IF YOU HAVE ANY ISSUES WITH ASSEMBLY OR MISSING PARTS PLEASE CONTACT US IMMEDIATELY
Ben Secrist 513-532-7062, [email protected]

Parts Lis

ITEM                 DESCRIPTION                  QTY                                                                         IMAGE
1	QUICK CHANGE ACCESSORY WHEEL BRACKET	1
2	QUICK CHANGE TAB	2
3	1/4” BUTTON HEAD SCREW 5/8” LG	4
4	½” THIN NYLOCK NUT	1
5	5/8” HEX NUT	1
6	BUFFER DRIVE WHEEL	1

7	BUFFING ARBOR	1
8	½” HEX BOLT 3” LONG	1
9	5/16” SPACER 1/2″ ID 1.0”OD	1
10	1/4”-20 SCREW 1/4” LG	2
11	5/8” FLAT WASHER	2

TOOL LIST

• 3/4” COMBO WRENCH & SOCKET
• 5/32” HEX KEY (ALLEN WRENCH)
• 1/8” HEX KEY (ALLEN WRENCH)
• 15/16” COMBO WRENCH

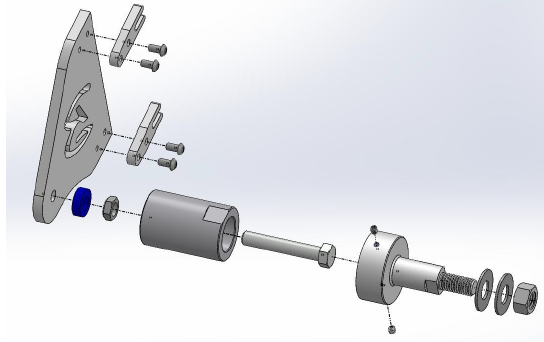

BUFFING ATTACHMENT ASSEMBLY

• Install the ¼-20 round head screws through the qc offset tab into the quick change accessory wheel bracket.
• Insert the ½-13 x 3” Hex Bolt into the wheel and install ½-13 nylock nut onto the other side.
• BE CAREFUL NOT TO OVERTIGHTEN BEARINGS. THE WHEEL SHOULD SPIN FREELY BUT THERE SHALL BE NO EXTRA SPACE BETWEEN THE BEARINGS AND NUT OR BOLT HEAD.
• Install the wheel spacer onto the bolt and thread into the Buffing Wheel Bracket.
• Slip the wheel arbor over the wheel and install the ¼-20 set screws. The set screws should bottom out on the flats of the wheel.
• Use the 5/8 washers and Nut to install a buffing or wire wheel.
• If your assembly came with an arm and Quick Change Assembly, the instructions can be found on our website. www.brodbeckironworks.com
