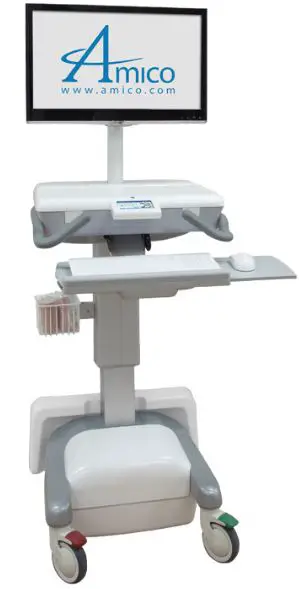

Amico Hummingbird Lite Medical Workstation on Wheels Lite

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-product-img

Standard Equipment

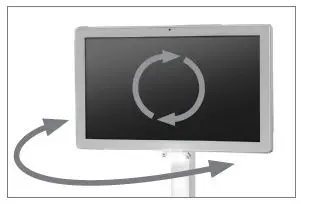

Display Movement

  • +/-90° screen panning and rotation for workflow, patient interaction, and visibility during travel.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-1

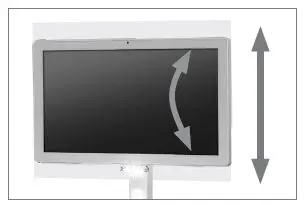

Display Ergonomic Adjustment

  • Independently adjust monitor height without tools for optimal ergonomic positioning: 6.5″ (16.5 cm) height and +/- 15° tilt range.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-2

Worklight

  • Makes working at night time easier. Choose placement under your screen or above your keyboard.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-3

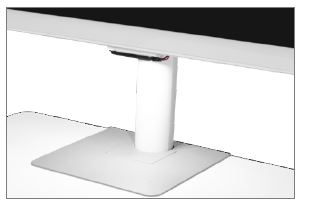

LCD Cable Management

  • Conceal monitor and accessory cables inside the LCD post to keep them organized and clean.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-4

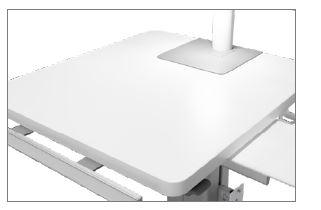

Work Surface

  • Infection-control friendly work surface Dimensions 20″ x 22″ (50.8 cm x 55.8 cm)

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-5

Mouse & Keyboard Cable Management

  • Infection control-friendly, snug fitting.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-6

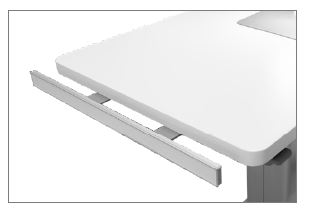

Steering Handles

  • Steer your cart with ease with comfortably located handles at the front of the work surface.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-7

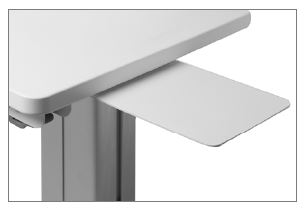

Mouse Tray

  • Slideout surface for mouse tray (left and right side)

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-8

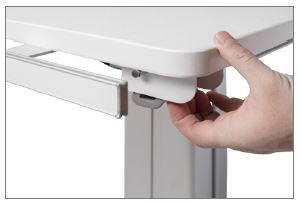

Manual Lift

  • Go from sitting to standing in seconds with our heavy-duty pneumatic lift: 15″ (38 cm) worktop height adjustment range.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-9Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-9

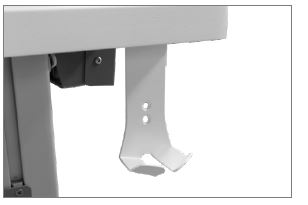

Cord Holder

  • Neatly store your power supply cord on the side of the cart.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-10

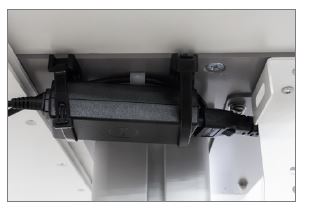

Power Supply Holder

  • Securely strap in your device’s power supply under the worksurface on the left or right side.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-11

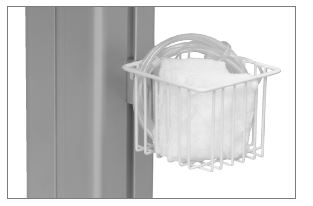

Accessory Rails

  • Integrated rails on both sides of the column to easily mount your storage accessories.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-12

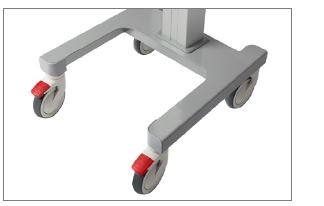

Legroom

  • U-Shape base saves your shins while traveling and gives users enough legroom while sitting.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-13

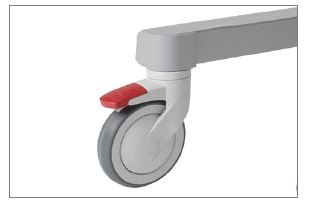

Effortless Rolling

  • 5″ (12.7 cm) casters make travel effortless, including locking casters to stop movement.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-14

Save on Shipping

  • Ships with minimal assembly requirements, optimized to save you money on shipping.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-15

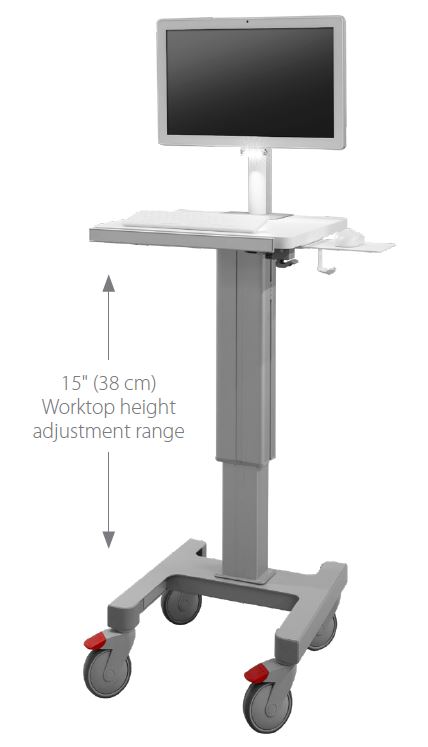

DIMENSION

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-16

Options

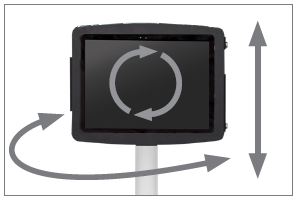

Tablet Mount

  • Swap a display for a tablet with this secure, fully adjustable tablet mount.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-17

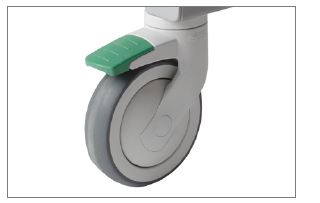

Directional Caster

  • Swap one braking caster for a directional caster to make steering your cart even easier.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-18

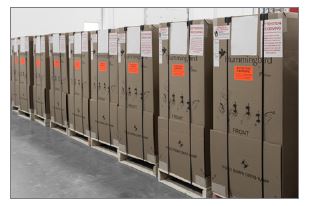

Quick Install Shipping

  • Cart ships fully assembled. Mount your tech and accessories for fast deployment on-site.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-19

Built-in Ethernet Port

  • In work surface for network connections.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-20

Accessories

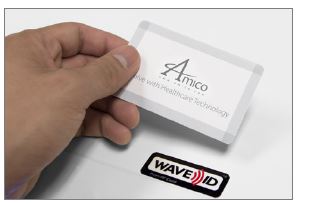

RFID

  • RFID embedded in the worktop facilitates secure PC access and enhanced infection control.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-21

Antimicrobial Keyboard and Mouse

  • Antimicrobial keyboard and mouse (ask a sales rep for options).

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-22

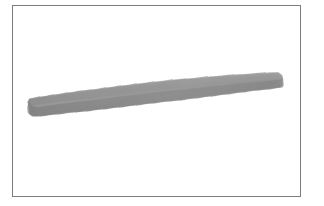

Wrist Rest

  • Antimicrobial, comfortable wrist rest, and Virox friendly.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-23

Ergonomic Accessory Rail

  • Mount frequently used items close at hand.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-24

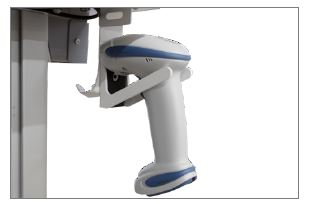

Barcode Hook

  • Hook for your wired barcode scanner.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-25

Barcode Scanner Mount

  • Horizontal mounting plate for your barcode scanner dock.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-26

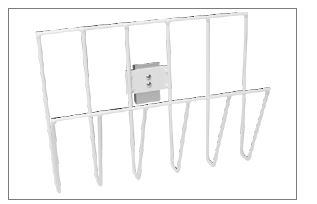

Chart Holder

  • Locate your charts close at hand, beneath the worktop.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-27

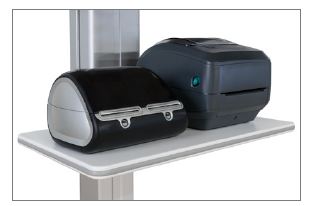

Printer Shelf

  • Shelf to accommodate a range of printers and peripherals 12″ x 20″ (30.5 cm x 50.8 cm).

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-28

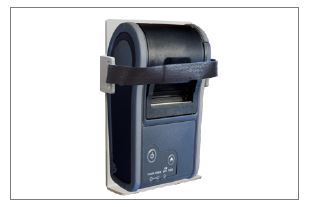

Printer Mount

  • The mounting plate accommodates commonly used small printers including Zebra QL220.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-29

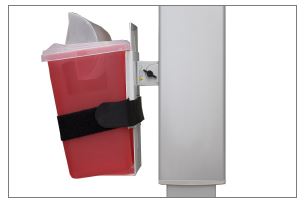

Universal Sharps Holder

  • Adjustable mount to accommodate common sharps containers.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-30

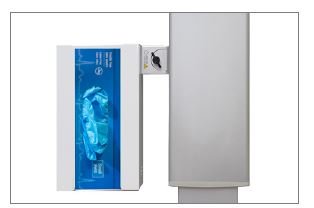

Glove Box Holder

  • Storage for boxes of gloves (works with tissue boxes too).

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-31

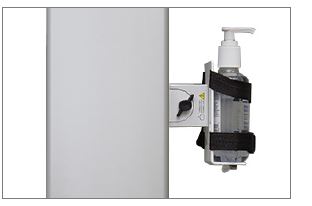

Hand Sanitizer Holder

  • Securely store your sanitizer pump.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-32

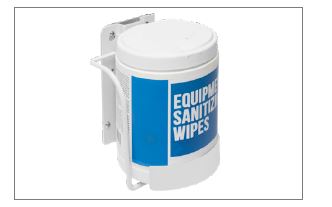

Equipment Wipes Holder

  • Mounting bracket for your equipment wipes dispenser.

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-33

Baskets

  • Sterilizable wire baskets
  • 10″ x 6″ x 9″ (25.4 cm x 15.2 cm x 22.9 cm)
  • 10″ x 10″ x 4″ (25.4 cm x 25.4 cm x 10.2 cm)
  • 5″ x 5″ x 4″ (12.7 cm x 12.7 cm x 10.2 cm).

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-34

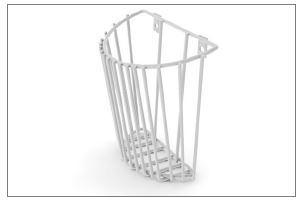

Cuff Basket

  • Sterilizable Wire Basket 13″ x 9″ x 7″
  • (33.02 cm x 22.9 cm x 17.8 cm)

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-35

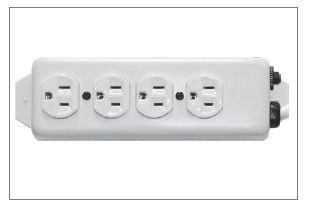

Power Bar

  • Provide power to multiple devices on the cart – all international power types available (power cord included)

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-36

Patient

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-37

Practitioner

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-38

Technician

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-39

Management

Amico-Hummingbird-Lite-Medical-Workstation-on-Wheels-Lite-fig-40

Amico Accessories Inc. | 85 Fulton Way, Richmond Hill, ON L4B 2N4, Canada
Toll Free Tel: 1.877.264.2697 | Tel: 905.763.7778 | Fax: 905.763.8587
Email: [email protected] | www.amico.com
