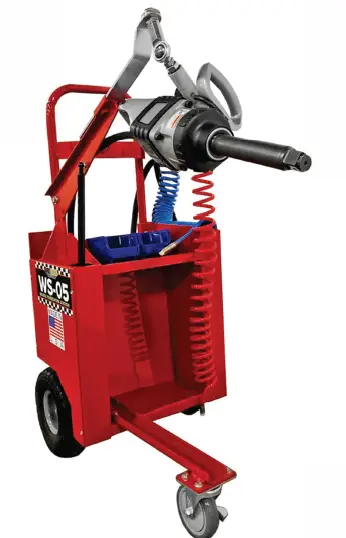

TSI WS-05 Mobile Wheel Workstation
WARNING!
USE CAUTION! DO NOT operate the workstation without first reading this manual and frequently asked questions. Failure to do so may result in injury or death

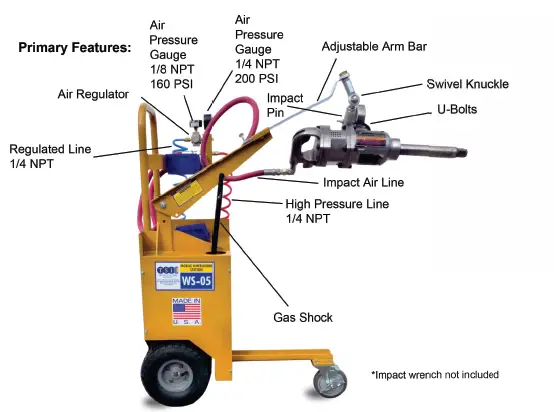

Overview: Designed for faster and more efficient commercial truck tire and wheel changing operations
- Supports the weight of an impact wrench
- WS-05 moves in all directions and locks the impact wrench into a horizon plane to prevent rounding of wheel nuts
- Provides significant reduction in impact wrench damage
- Relieves operator fatigue and helps reduce comp claims by preventing back injury
WARNING!
- The red hose is a high pressure line and can be used with jacks to lift up the
- trailer or other tools requiring high pressure air. The blue hose is a regulated line, used for checking and adjusting the pressure of a tire. Please install appropriate accessories to these lines before hooking up the main line.
OPERATION INSTRUCTIONS
WARNING!
FINISH installation first before connecting to your main air supply.

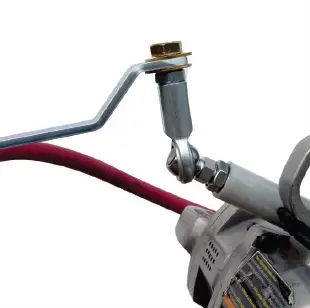

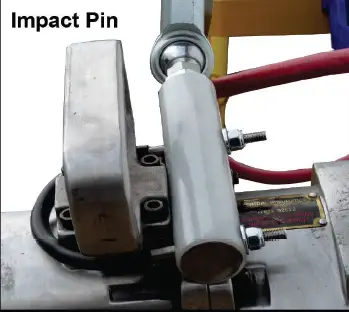

- Install impact pin to gun by using the appropriate size U-bolt
**CAUTION**

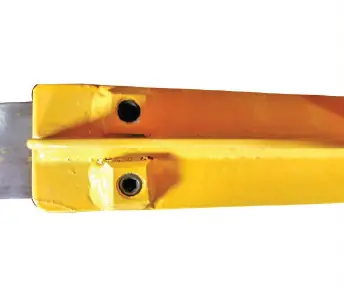

Make sure the alien wrench screws found underneath the adjustable arm bar are secure before operating the Work Station.

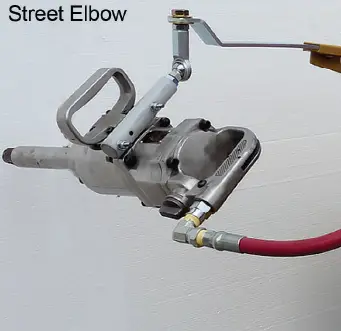

- Install street elbow to gun. (Use Teflon tape provided). After properly installing the elbow to the gun, you can now hook up the air line to the elbow
WARNING!
Please follow manufacturer’s specifications on air supply to gun and or accessories. Tire Service Equipment is not responsible for any damage caused by high pressure air supply.
FREQUENTLY ASKED QUESTIONS
Q: I connected the main air line, and when I hit the trigger on the gun nothing happens?
A: Make sure the valve is in the open position, if problem persists check your main line or compressor valve for any leaks.
Q: How do I oil the gun using the Work Station?
A: The manifold has a plug that has an oil access area.
Q: How can I check the pressure of a tire using the provided gauges?
A: Hook up the air chuck to the blue hose (regulated line). Now use the air chuck to inflate the tire. If you want to check the air pressure of the tire, shut the main valve and this will display the air pressure of the tire you are inflating.
WARNING!
For adjustment inflation only. Not to be used for initial inflation as proper cage and equipment is required for this operation.
Q: The shock seems to be losing power and not lifting up the gun anymore, can I go to an auto parts store and get a replacement?
A: It is important to contact your vendor and re-order a new gas shock for replacement. This is not a “car shock” and accurate pressure and sizing were utilized to make it appropriate for use with an impact wrench. Replacing this shock with a non OEM design can potentially cause damage or personal injury. It is dangerous to use a worn out or blown shock. Gas shocks should be replaced when it gets difficult to operate the unit, or after approximately 2 years in service
1-800-223-4540
WS-05
9-19-16

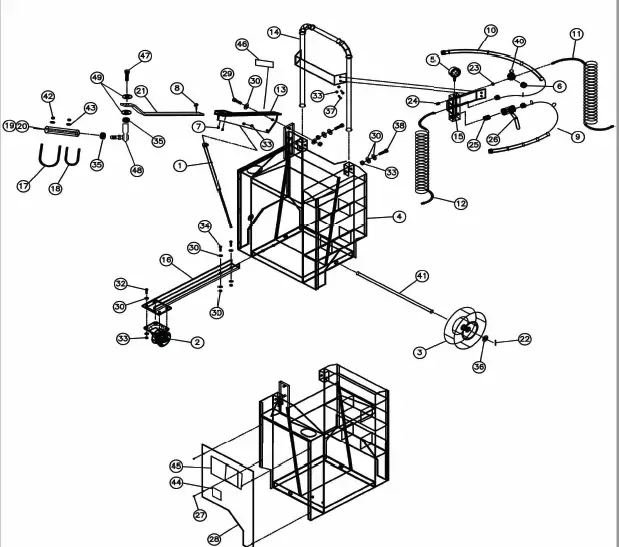

| WS-05 PARTS LIST | ||||
| 9/20/2016 | ||||
| ITEM# | PART# | QTY | DESCRIPTION | |
| 1 | 11899 | 1 | GAS SHOCK | |
| 2 | 11929 | 1 | CASTOR WHEEL, FRONT | |
| 3 | 11628 | 2 | WHEEL, MAIN ASSEMBLY | |
| 4 | 6471 | 1 | MAIN ASSEMBLY WELDMENT | |
| 5 | 01.106 | 1 | AIR PRESSURE GAUGE, 1/4 NPT 200 PSI | |
| 6 | 7.023A-200 | 1 | AIR PRESSURE GAUGE, 1/8 NPT 160 PSI | |
| 7 | 1308 | 2 | SET SCREWS TO SECURE SLIDER ARM | |
| 8 | 15222 | 1 | SET SCREW TO MOUNT TO SLIDER ARM | |
| 9 | 12839 | 1 | AIR HOSE, 1/2 I.D. W/1/2 NPT FITTINGS 33″ | LONG |
| 10 | 12840 | 1 | AIR HOSE, 1/2 I.D. W/1/2 NPT FITTINGS 80″ | LONG |
| 11 | 12841 | 1 | AIR LINE, 1/4 NPT 15′ LONG (BLUE) | |
| 12 | 12842 | 1 | AIR LINE, 1/4 NPT 15′ LONG (RED) | |
| 13 | 6467 | 1 | ADJUSTABLE ARM, WELDMENT | |
| 14 | 6469 | 1 | HAND RAIL, WELDMENT | |
| 15 | 6470 | 1 | AIR LINE BLOCK, WELDMENT | |
| 16 | 6472 | 1 | WHEEL ARM, WELDMENT | |
| 17 | 11931 | 1 | U-BOLT, LARGE | |
| 18 | 11932 | 1 | U-BOLT, SMALL | |
| 19 | 11954 | 1 | NYLON SLEEVE, 1″ DIAMETER | |
| 20 | 11955 | 1 | MACHINED HANDLE {Impact Pin) | |
| 21 | 12813 | 1 | ADJUSTABLE ARM BAR | |
| 22 | 1436 | 2 | COTTER PIN TO SECURE WHEELS | |
| 23 | 778 | 1 | 1/4 NIPPLE | |
| 24 | 128 | 1 | 1/4 PLUG | |
| 25 | 149 | 1 | 1/2 NIPPLE | |
| 26 | 6851602 | 1 | BALL VALVE 1/2″ | |
| 27 | 1055 | 4 | SELF TAPPING SCREWS, 10-24 X 1/2″ | |
| 28 | 12805 | 1 | SIDE COVER | |
| 29 | 447 | 1 | HHCS 3/8-16 X 1-1/4 PLATED | |
| 30 | 1318 | 12 | WASHER, 5/16 WROUGHT | |
| 31 | 123.055 | 3 | NUT, HEX 3/8-16 LOCK | |
| 32 | 3405 | 4 | HHCS 5/16-18 X 1 | |
| 33 | 566 | 7 | NUT, HEX 5/16-18 NYLOCK | |
| 34 | 1306 | 2 | HHCS 3/8-16 X 1 GR5 | |
| 35 | 3671 | 1 | NUT, HEX JAM STD 5/8-18 UNF | |
| 36 | 987 | 2 | WASHER, 5/8 WROUGHT | |
| 37 | 1737 | 2 | HHCS 5/16-18 X 3/4 GR5 | |
| 38 | 3406 | 2 | BOLT 5/16-18 X 1-3/4 | |
| 39 | 12845 | 2 | PLASTIC HARDWARE TRAYS (NOT SHOWN) | |
| 40 | 15.190 | 1 | AIR REGULATOR 1/4 NPT | |
| 41 | 12819 | 1 | AXLE ROD | |
| 42 | 226 | 2 | NUT, HEX 1/4-20 NYLOCK | |
| 43 | 445 | 2 | WASHER, 1/4″ FLAT WROUGHT | |
| 44 | 12846 | 1 | USA DECAL | |
Warranty Statement & Return Policy
Warranty & Workmanship you can depend on.
With over 25 years of manufacturing experience we maintain the ability to provide competitive prices while employing and manufacturing the majority of our products in the USA. Pride in our workmanship and standing behind each and every product is not just our claim but our uncompromising responsibility.
TSISSG equipment is warranted to be free from defects in materials and workmanship for a period of one year from the date of original purchase to the original owner. Repair labor is warranted for 90 days from the date of original purchase. Bushings, blades, bearings and normal wear and tear are not covered under warranty. Careless handling, negligence, misuse, abuse, mutilation, improper operation, making unauthorized repairs, additions, and or alterations automatically cancel this warranty and relieves TSISSG of any obligation. Cheetah tanks claimed to be defective while under warranty will be evaluated at our manufacturing plant and either repaired if possible or exchanged and returned or credit issued to the customer account at our discretion. Damage resulting from dropping the tanks will not receive warranty consideration. Warranty parts need to be returned prepaid to the plant for credit. Any replacement parts shipped from the plant will be shipped at the customer’s expense. Machines requiring warranty work must be brought to the manufacturing plant in 201 Chelsea Rd, Monticello, MN or to a repair facility authorized by TSISSG.
Return Policy:
!!WARNING!! Goods returned without an RGA will be refused. A Returned Goods Authorization form must be obtained before returning any material or goods. All non-warranty returns will be subject to a 15% restocking fee plus any additional charges for reconditioning/repacking.
