Esatto E4DF474X 474L French Door Refrigerator User Guide

Let’s get started!

Temperature Controls

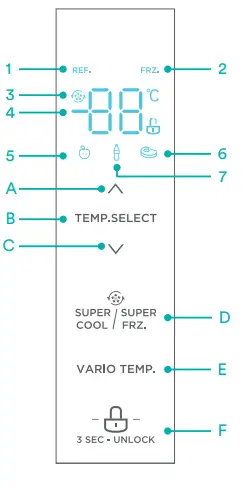

Screen Icon Key

1.  Refrigerator Icon
2.  Freezer Icon
3.  Super Cool/ Freezing
4.  Temperature Display
5.  Fruit/Vegetable Icon
6.  Meat Icon
7.  Drink Icon

Control Buttons

• A. Temperature Up
• B. Temperature Zone Selector
• C. Temperature Down
• D. Super Cool/ Freezing
• E. Variable Temperature
• F. Lock/Unlock

Note: For more detailed instructions on how to use the temperature control panel refer to your User Manual Pages 12—13.

Installation Tips

•  Two person installation: Use two or more people to move and install the appliance. Failure to do so can result in back or other injury.
•  Freestanding design: This appliance is designed to be freestanding only, and should not be recessed or built-in.
•  Floor surface: This appliance must be properly positioned on a dry, sturdy, level surface that is strong enough to support it when it is fully loaded.
•  Clearances: Ensure that air can circulate freely around the back of the cabinet, which is necessary to cool the compressor and condenser. Allow at least 10cm clear space at the back, 10cm at the sides of the unit and 30cm between the top and any surface above (i.e. a bench top). If you are installing your refrigerator next to a fixed wall, leave sufficient space on the hinge side to allow for the door to swing open.

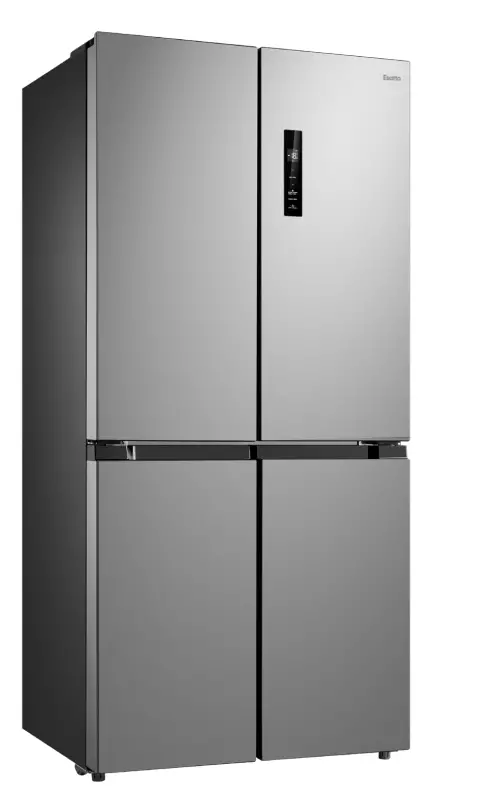

Product Details
Dimensions (mm) / 833W × 653D × 1775H Energy Rating / 3.5 Stars Warranty / 2 Years

Get in touch
Need help? Contact our friendly support team via the contact details below.

• Phone / 1300 11 4357
• Email / [email protected]
• We love to hear about your Esatto experience! Share your story at esatto.house/review
