TWPH10US
TT10-XX Thermatouch Control
Owner’s Manual

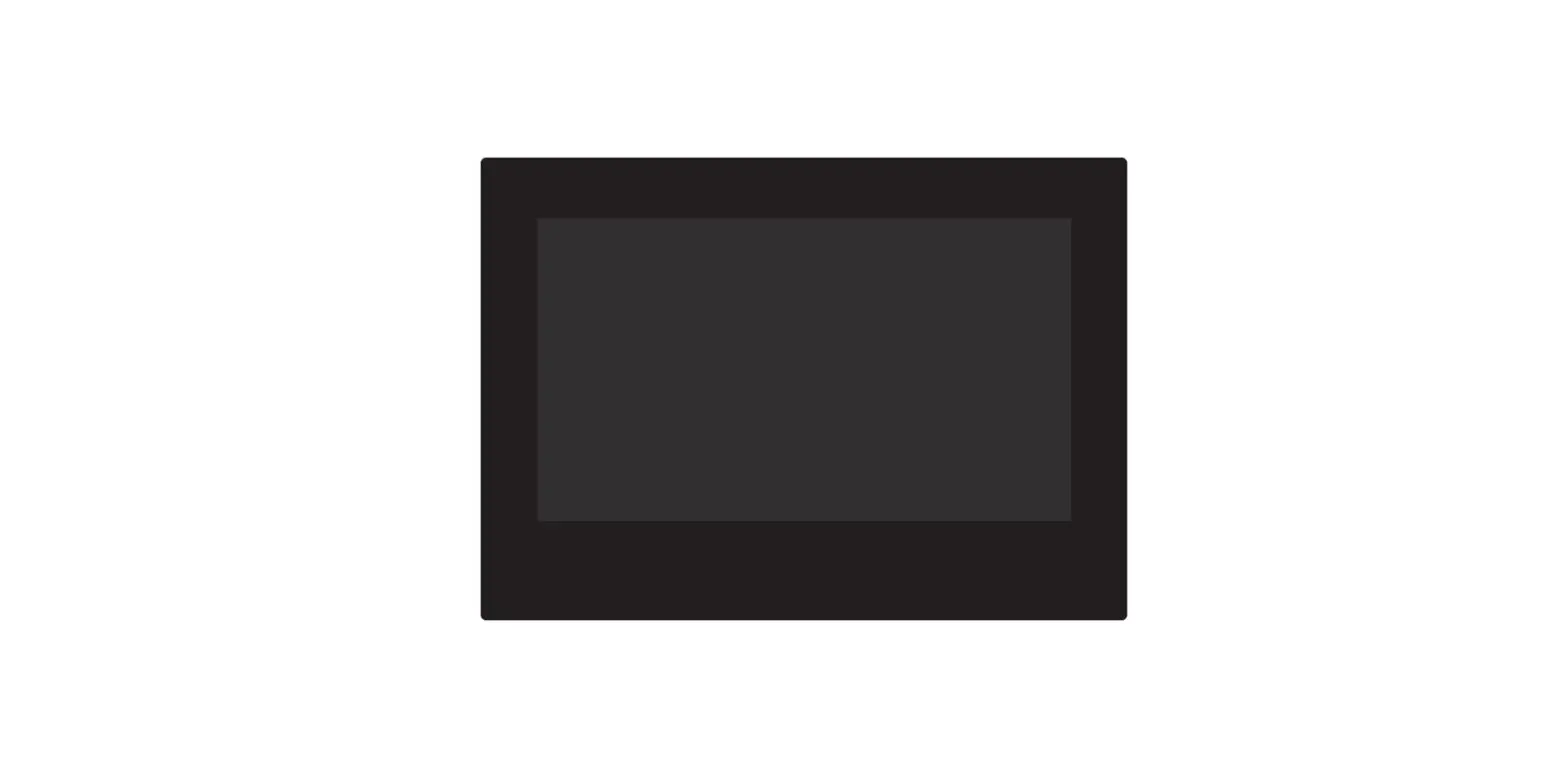

TWPH10US Thermatouch Control
The ThermaTouch Control is a 10″ LCD Touchscreen Control used to operate other ThermaSol modules such as Steam Room functions, Light, Sound and Tranquility Visualization, Stereo Audio output and Ethernet connection. The control is approx. 10-2/5″ Wide X 7-1/10″ High X 2-3/10″ Deep. It requires a wall cutout 10-2/5″ Wide X 7-1/10″ High and must have a clear in wall depth of 3-1/2″.

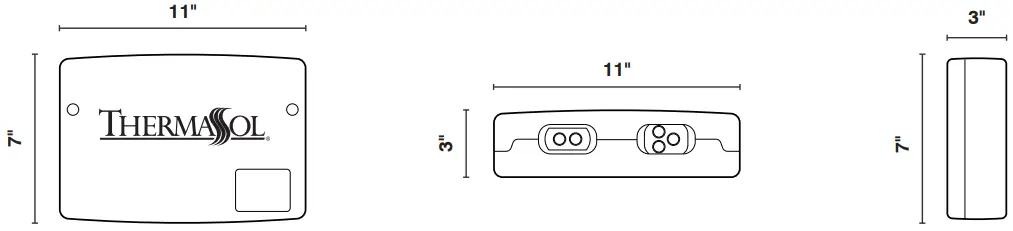

SHIPPING WEIGHT
Weight | 1.8 lbs.
Length | 11 in.
Width | 14 in.
Height | 8 in.
FINISH CHART*
| PC | Polished Chrome SC | Satin Chrome PB | Polished Brass SB | Satin Brass | AB | Antique Brass COP | Polished Copper ACOP | Antique Copper ORB | Oil Rubbed Bronze |
| PN | Polished Nickel SN | Satin Nickel MB | Matte Black AN | Antique Nickel | BN | Black Nickel PG | Polished Gold BK | Black WHT | White |
* If selecting “WHT” or “BK” finish replace -XX with code in part number STC-XX. All other finishes replace the -XX in part number STCU-XX.
FEATURES

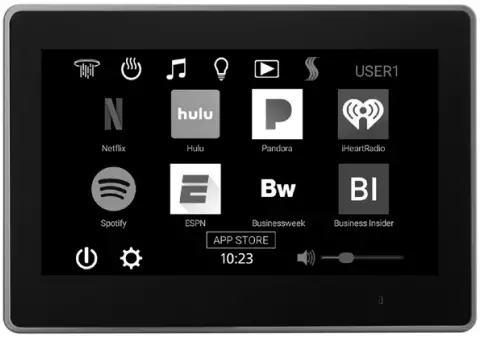

- Choose and download from a menu of 20 of the most popular Apps; shows, news, weather, video content, music and more
- Fully waterproof, ThermaTouch Plus can be installed anywhere: a shower, bathing area, patio, etc.
- Built-in Bluetooth®
- Ethernet connection
- WiFi-enabled capabilities ensure that users automatically receive any updates to the software right to the controller, in-home after purchase.
- Powered by Android™
- Stereo audio output
- Alexa compatible (Available Summer 2019)
- Date and Time display
- Set steam time and temperature
- Set and control preferences for two users
- Operates: steam, digital shower, light, sound and rain head.

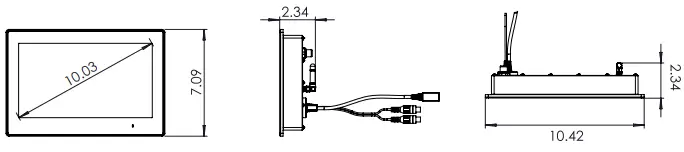

SPECIFICATIONS
Construction | Acrylic or 6061 Aluminum
Controllability | Steam, Light & Sound
Audio Out | 1/8″ Barrel Jack
Power Supply | ThermaSol PDM (10-8147)
Display | 10″ Wide LCD Touch Screen
INSTALLATION NOTES
- Refer to ThermaSol installation Instructions Doc No. 81190 for complete instructions.
- Requires wall cut out opening of 9.75″ Wide X 6.375″ High X 3.125″ Deep.
- Use Mud Ring for Tile installation and ThermaTouch Control placement (04-8544).
- Ensure 3-1/2″ clearance behind the rear of the control for cable clearance.
- The control should be installed 60″ inches from the floor and 6″ from any wall and as far away from the steam outlet as possible.
| SHIPPING WEIGHT | |
| Weight | | 10.65 lbs. |
| Length | | 12 in. |
| Width | | 16 in. |
| Height | | 3.5 in. |

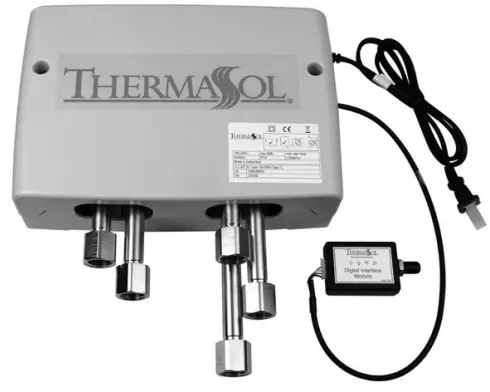

DIGITAL SHOWER VALVE
TDS-3000
With a minimalist look desired by top architects, ThermaSol’s Digital Shower eliminates the need for exposed valves and trims. The integrated system reduces installation costs and allows the budget to be invested into building a state-of-the-art shower environment.
FEATURES
- Industry leading ceramic disc Flühs valves ensures reliability and safety
- Operates two industrial grade stepper motors with 400 positions that take away the noise factor found with solenoid valve systems and provides precise temperature control
- May be installed up to 30 ft. away from shower
- Three output valve – Example: Rainhead,Hand Shower and Standard Showerhead
- Battery backup included
- Output 9.25 GPM at 45 PSI
- IAPMO Approved
SPECIFICATIONS
Two Inputs | 1/2″ FNPT
Three Outputs | 1/2″ FNPT
Power Supply | Input 110VAC .5 AMP Output 15VDC, 3 AMPS Required

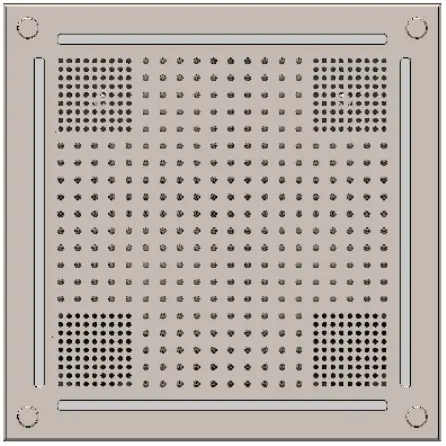

HVLSRSQ-XX Hydrovive
SPECIFICATIONS – Light and Sound Rain System
Construction……………………………………….…Machined Brass
Controllability………….……………ThermaTouch Series Controls
Function Lights…………………..……200 Full-color luminous LED
Rainhead Water Supply…..……….…….. 3/8”, 40-80 PSI, 1.8GPM
Water Jets……………………………….………………………….…300
CEC Approved
| Lighting | Audio |
| • 200 Full-color luminous LED (R,G,B,W) | • Amplifier: 100Watt RMS, built in Digital Signal Processor |
| • Color Changing “Mood Lighting” | • Built-in Bluetooth v4.2 |
| • Preset Chromatherapy Chakras | • 2-1” Titanium Dome Tweeter with Ferro fluid cooled aluminum voice coil |
| • Custom user programmable “any color” | • 1- 4” woofer |
| • 1-4” passive radiator |
| Installation Notes: Overall size is 18.0” SQ X 8.0” tall and requires approx. 16.7” X 16.7” cutout in the | Finish Chart: Select desired finish and replace XX with code. | |
| PC = Polished Chrome SC = Satin Chrome PB = Polished Brass SB = Satin Brass AB = Antique Brass COP = Polished Copper ACOP = Antique Copper | PN = Polished Nickel SN = Satin Nickel BN = Black Nickel MB = Matte Black AN = Antique Nickel PG = Polished Gold ORB = Oil Rubbed Bronze WHT = White | |
Product Specification:
A self-contained, Light and Sound Rainhead module that creates high-intensity chromatherapy lights and sounds. Rainhead is rated at 1.8 GPM Max. at 80 PSI and requires a separate diverter port with shut off valve. Powered by: provided 24V DC, 30 Watts power supply.
For any further assistance please contact ThermaSol at 800.776.0711 or [email protected] Visit www.thermasol.com for a complete product definition
Shipping Information:
Weight………… 37 lbs.
Length……………20 in.
Width…….………20 in.
Height……….…..10 in.
SVxx-XX

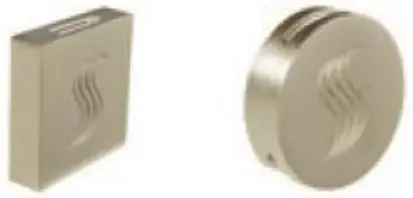

SteamVection Steam Head
*Rough-In Guide*
SPECIFICATIONS – SteamVection Steam Head
Construction…………………….…….…. Brass
Aromatherapy……………………………. Integral Reservoir
Installation Notes:
The steam head should be installed 24 inches from the floor, and 6 inches from any corner, inside the shower only, and as far away from the controller and shower fixtures as possible.
The steam head housing requires a 1-1/8” hole in the shower wall, and must be flush with the finished wall and sealed to the wall to not allow vapor or water behind it. Use ½” copper fittings to attach the housing to the steam outlet. See the full steam head housing instructions within your generator installation guide.
Product Specification:

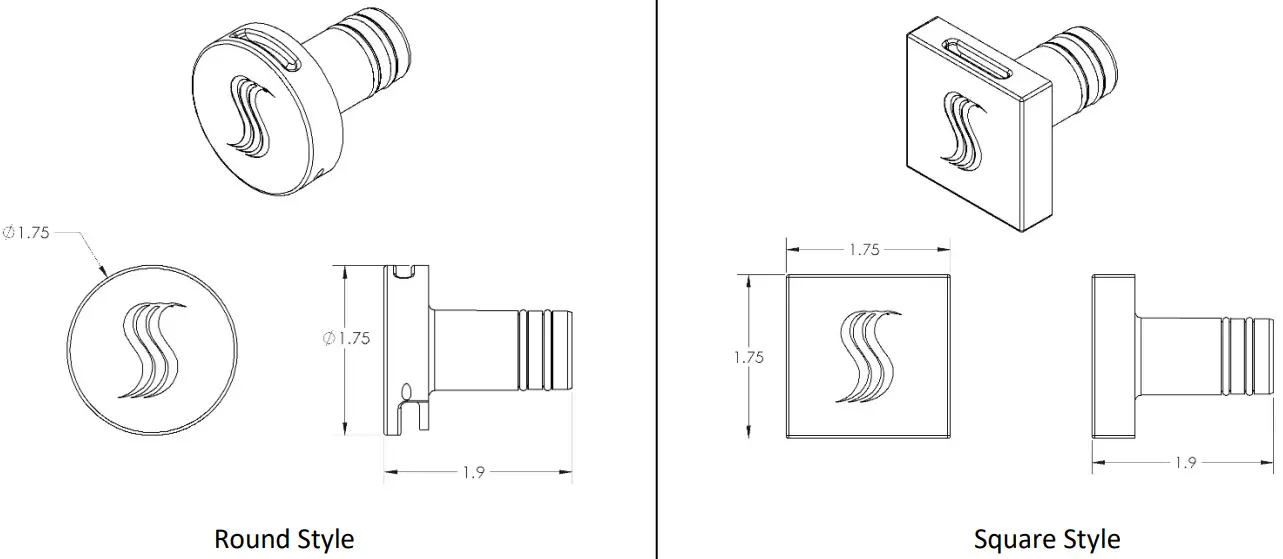

The steam head shall be approximately 1.75” x 1.75” in the square version, and a 1.75” Dia. For the round version. The steam head is made from brass alloy and includes an aromatherapy well.
Shipping Information:
Weight…………… 1 lbs.
Length…………..…9.5 in.
Width…………..….3.5 in.
Height………………2.5 in.
For any further assistance please contacThermaSol at 800.776.0711 or [email protected]
| Finish Chart: Select desired finish and replace XX with code. No-Touch Aromatherapy steam head and control finishes. | |
| PC = Polished Chrome SC = Satin Chrome PB = Polished Brass SB = Satin Brass AB = Antique Brass COP = Polished Copper ACOP = Antique Copper MB = Matte Black | PN = Polished Nickel SN = Satin Nickel BN = Black Nickel AN = Antique Nickel PG = Polished Gold ORB = Oil Rubbed Bronze WHT = White |
