Ibiza Bt8a Active Speaker Box With Usb-sd And Bluetooth User Manual

ACTIVE SPEAKER BOX WITH USB/SD & BLUETOOTH

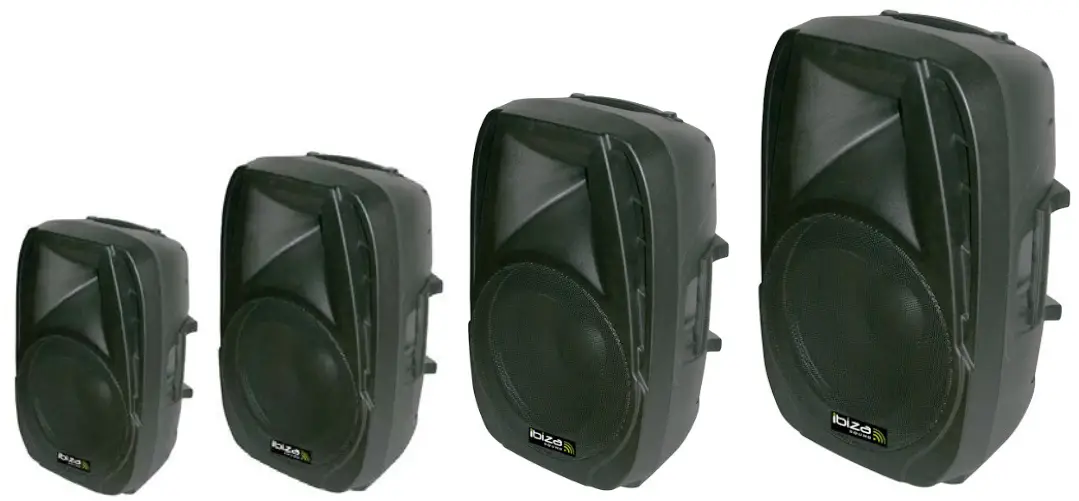

BT8A: 8″/20cm 150W / BT10A: 10” / 25cm – 250W
BT12A: 12″/30cm 450W / BT15A: 15” / 38cm – 500W

User Manual

Electric products must not be put into household waste. Please bring them to a recycling center. Ask your local authorities or your dealer about the way to proceed.

Imported from China for
©Copyright LOTRONIC 2014

Safety Precautions

WARNING: As this appliance is a CLASS1 product, it must be connected to a main socket outlet with protective earth connection

• The installation of this speaker cabinet must be carried out by qualified persons following the approved safety standards.
• Do not attempt to clean the plastic enclosure with solvents or petrochemical-based cleaners.
• Do not place objects which are sources of heat on the speaker cabinet such as lighting equipment or smoke machines.
• Do not expose the speaker cabinet to direct rain or water. Liquid getting into the box will risk a short circuit and will be hazardous.
• Do not stack the speaker cabinet in a manner that could cause injury if a cabinet becomes dislodged.
• Only use the appliance in a moderate climate, not in tropical environments.
• If the main power plug of the appliance is used as a disconnected device, the disconnect device should be easy to operate

Additional precautions for amplified devices of the series.

• Before installation, ensure that the voltage and frequency of the power outlet match the power requirements of the loudspeaker.
• Disconnect from the mains prior to making connections to the speaker.
• Make sure that the power cord is never crimped or damaged by sharp edges. Never let the power cord come into contact with other cables. Only handle the power cord by the plug.
• Replace the fuse only with a fuse with the same specifications as the original one.

Warning
Before connecting or operating your new speaker, please read the instruction manual carefully.

Functions

MODE	The exchange between USB / SD / BLUETOOTH
	Play/Pause
	Repeat
	Last
	Next
Bluetooth	Bluetooth

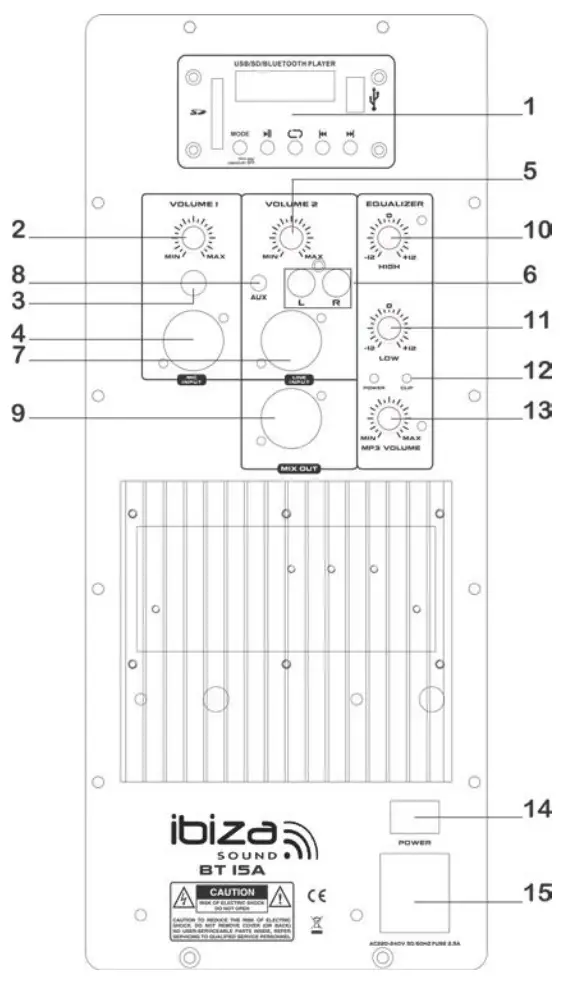

1. USB Player
2. Volume 1: Controls the volume of the Microphone input.
3. 1/4Jack for Mic input
4. XLR Connector for Mic input
5. Volume 2: Controls the Volume of line in
6. Balanced RCA connector for devices like CD, Tuner or mixer, etc.
7. XLR lines in into devices like CD, Tuner, or mixer
8. Jack 3.5mm connector for devices like Mobile phone
9.  XLR Line out to another active speaker
10.  Equalizer: Controls the tone level of the high frequencies at range -12dB to + 12dB
11.  Equalizer: Controls the tone level of the low frequencies at a range of 12dB to + 12dB
12.  Clip LED: it lights up when the applied input signal reaches the level of distortion. Reduce the input level in order to avoid distortion.
13. Volume 3: Controls the volume of MP3
14. Power Switch: It allows switching the unit on / off
15. Mains socket: Connect here an IEC mains power cable.

Bluetooth pairing procedure

• Press the MODE button to toggle between USB/SD input and Bluetooth
• The Bluetooth icon flashes if the unit is not paired
• The unit is identified as “Bluetooth”
• The paring code is “0000”
• The Bluetooth icon remains steadily lit up when the unit is paired.

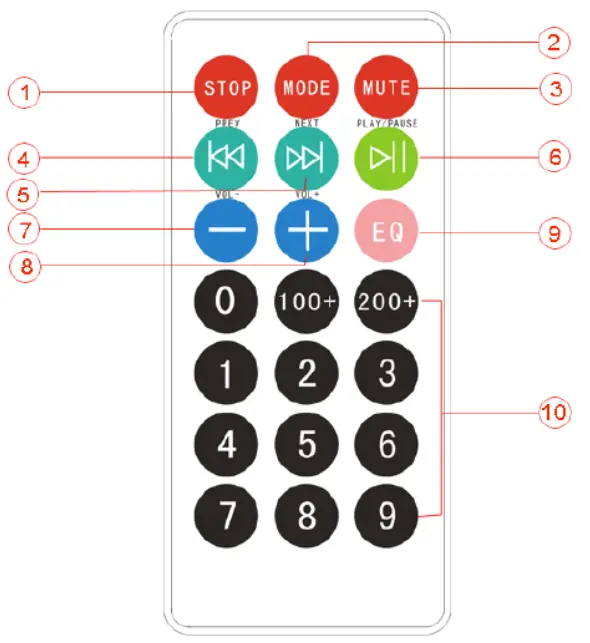

FUNCTIONS OF THE REMOTE CONTROL

1. Stop the MP3 player
2. Switch between USB / SD /Bluetooth
3. Mute the sound of the MP3 player
4.  Skip to the previous track
5. Skip to the next track
6. Play/Pause MP3 player
7. Decrease volume
8. Increase volume
9. EQ to control the tone level
10. Choosing music by numbers

Specifications
