Bzbgear Usb Bluetooth Speaker & Speakerphone Bg-smb-4m User Manual

USB Bluetooth
 Speaker & Speakerphone
User Manual BG-SMB-4M

Product Description

Preface
Thanks for choosing this speakerphone. Please read the manual carefully before using it. This manual describes the functions, installation, and use of this device in full detail.
BG-SMB-4M is a full-duplex 16kHz echo cancellation speakerphone. The pickup radius is 4m, which is ideal for one-to-one and small to medium group conference calls. It uses Bluetooth and USB connections to replace PC and smartphone speakers and microphones with outstanding audio quality. The USB interface can be connected to a PC or other video conference terminals, mobile phones, tablets, and other smart devices can connect using Bluetooth.
Attention

•  Before the operation, please fully read and follow all instructions in the manual.
• Operational environment: 0 ~ 40 degrees, Working humidity: 20 ~ 85% (no frost)
• Please keep the device away from motors, transformers, and other electronic devices to avoid noise.
• Please keep the equipment away from water and other liquids to avoid electric shock.
•  This device should be placed in a horizontal position, not wall-mounted or ceiling mounted.
•  Please use the USB cable included with this device to prevent electric shock and fire damage.
•  Use a dry soft cloth to clean the device. Never use strong or abrasive cleaning agents on the device to avoid damaging the case of the device.
• There are no user-serviceable parts inside. Please contact your dealer for assistance rather than dismantle the speakerphone and protect the cover by yourself.

Main features

1. Ensure everyone experiences clear sound with 4 built-in Omnidirectional microphones within 4m for 360 degrees pickup.
2.  Seamless Connectivity, simple plug, and play set up via USB or Bluetooth to get your meetings started quickly.
3. Comes with a 3.5mm headset port that allows the user to switch from a conference call to a private conversation.
4. Full-duplex echo cancellation and noise reduction, Ultra-Wideband HD Voice Call Technology provides Crystal clear sound without any echoes or distortions.
5.  Intuitive red, green and blue LED indicators to give you visual guidance
6. The volume of the speaker can reach 85dB. The device can connect to an external speaker if you need a louder volume.
7. Compatible with all leading UC platforms such as video conference software like ZOOM, Vidyo, WebEx, Skype for business, Google hangout, etc.

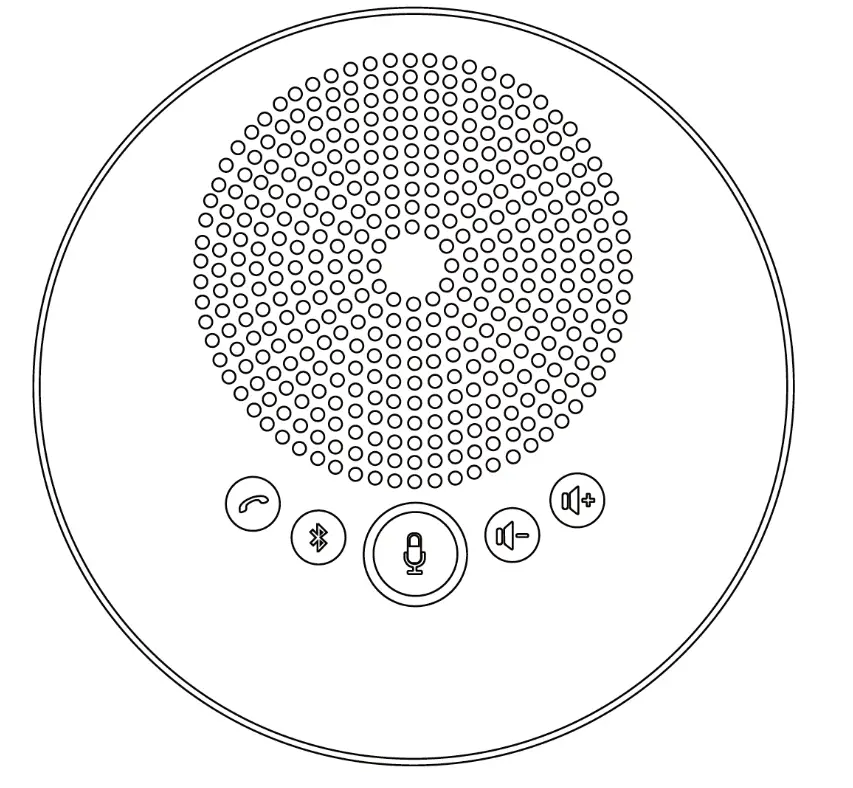

Product Type

(Please charge before using the Wireless/Bluetooth devices. Please charge with a standard USB cable and power adaptor)

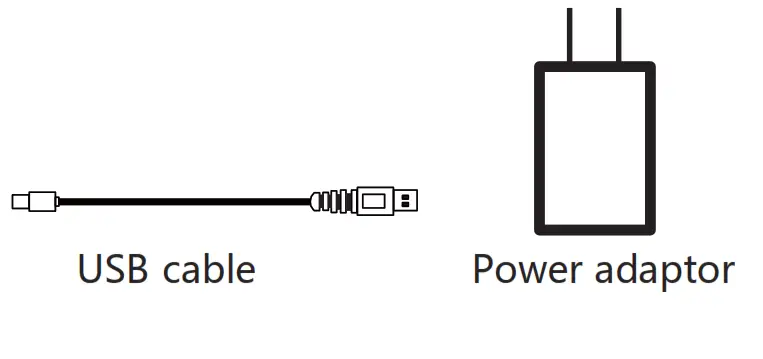

Supplied Accessories

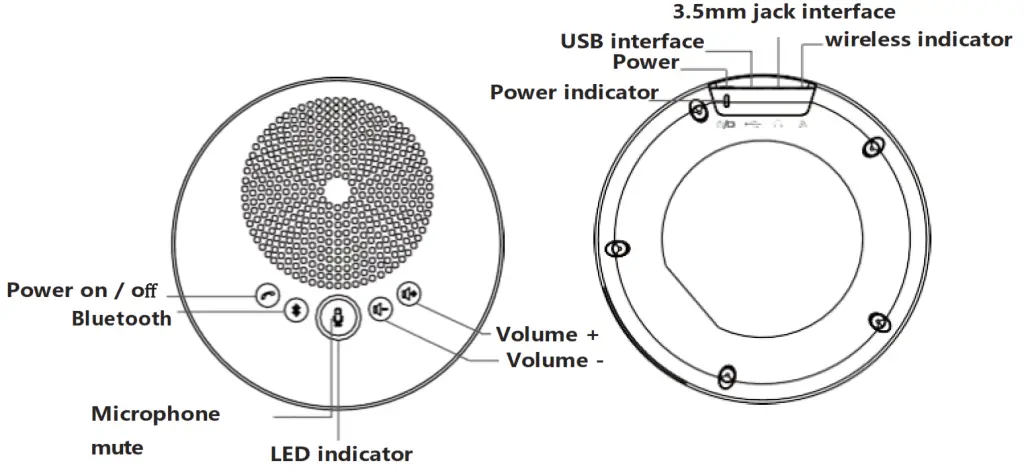

Interface introduction

Buttons

	Power button	Long press to turn on / off the microphone
	Volume down	Reduce the volume
	Volume up	Increase the volume
	Microphone mute	Press the microphone mute button, the red indicator is on. Press again, microphone works, green indicator on.
	Bluetooth	Turn on / off Bluetooth function
	Hang up	Hang up call
	Answer	Answer call

LED indicator function

1.  The device works normally blue indicator.
2.  Red indicator on Microphone mute.
3.  Bluetooth turns on, blue indicator flashes; Bluetooth connects, blue indicator on.
4. When the device has no peripheral connection after power on, it will shut down automatically after 3 minutes.

Charging instructions

1. Please charge before using the Wireless / Bluetooth devices.
2.  This device comes with a built-in rechargeable battery. Please charge with the standard USB cable and power adaptor, or charge by connecting the device to a PC.
   Note: The device takes 2-3 hours to be fully charged.

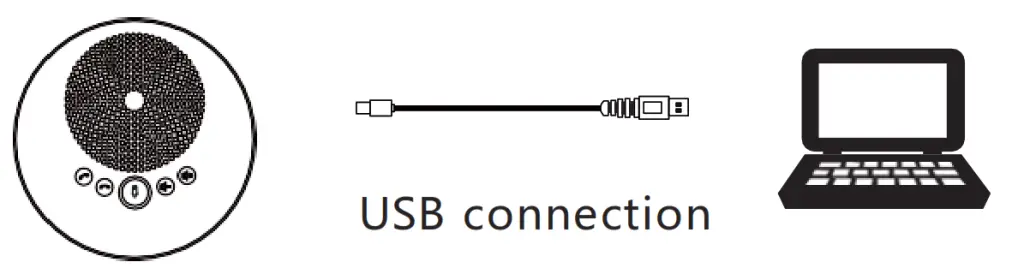

Connection Introductions

This device can be connected by a USB cable as a speaker and a microphone.

1. Fit for Windows, IOS, Android, etc. with a USB port.
2.  PC or other devices will automatically recognize and install the device. It will take 1 minute to show successfully installed. (Only for the first time to use).
3. The blue indicator will be on while working.
4. Open the platform of choice and initiate a call.

Bluetooth connection

This device can be connected by Bluetooth as a speaker and a microphone for the smartphone and tablet.

1. Turn on the device, press the Bluetooth button, blue indicator flashes means you can pair.
2. Turn on the Bluetooth on your smartphone, tablet, or other smart devices, choose “BG-SMB-4M” to match. The blue indicator will be on when matched successfully.
3. Open the of choice and initiate a call.

Bluetooth wireless connection

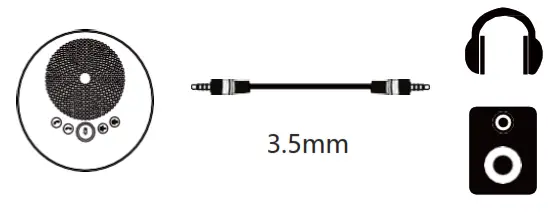

For music playing

1.  This device can be connected as a high-quality music source.
2. Connect your speaker with the 3.5mm jack to have a crystal clear voice, music, and multimedia, or you can play the music via a 3.5mm jack for earphones.

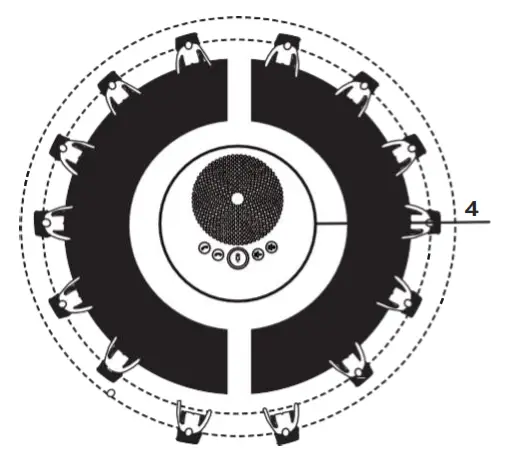

Pick up range

4m radius for small to medium meeting rooms

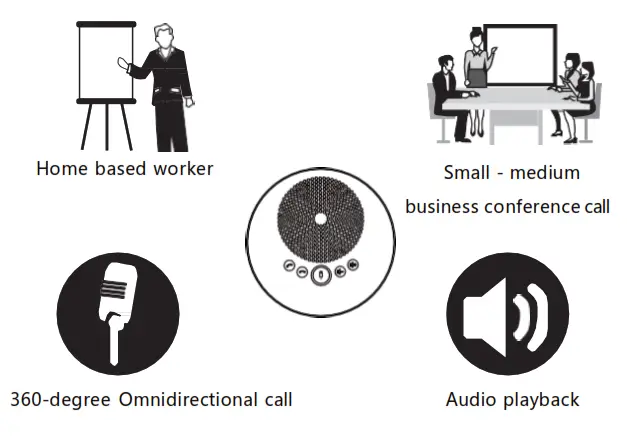

Function Diagram

Technical Specs

Warranty

BZBGEAR wants to assure you peace of mind. All BZBGEAR cameras and camera-related products include our Stress-Free Three-Year Warranty. For complete warranty information, please visit BZBGEAR.com/warranty. For questions, please call 1.888.499.9906 or email [email protected].
