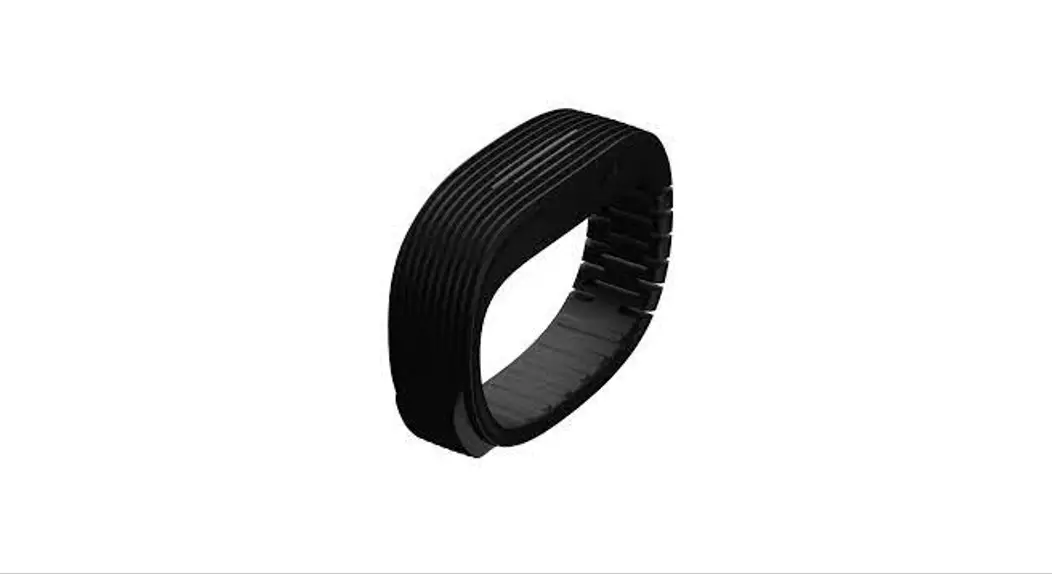

Palmcat Pero Wearable Gesture Controller User Guide (+ PDF)

peroWearable Motion Sensing Device
13elan Weafraar Gest Controller

Contents hide

1 ABOUT pero#Gesture controller

2 FUNCTION of pero #Wearing position

3 #Thumb Button Lange thumb To be dexterous.

4 #Touchpanel

5 #Silicon Uni-body

6 Module of palmchat #Whatever

7 #Simply connect

8 #Easy config

9 #Motion sensing module

10 Specs of pero

11 FCC Information to

12 #Contact

13 Documents / Resources

14 Related Posts

ABOUT pero
#Gesture controller

Sometime_. A Gesture is more effective than a few words.

What if various IT devices responded to our gestures? It may not be as good as “JAVIS” in IRON-MAN, but it would be efficient and fun.
palm cats’ new type controller-PERO, let’s do it like movies, with just this wristwatch-sized device, You can use PERO right away without any other system nor additional equipment.

FUNCTION of pero

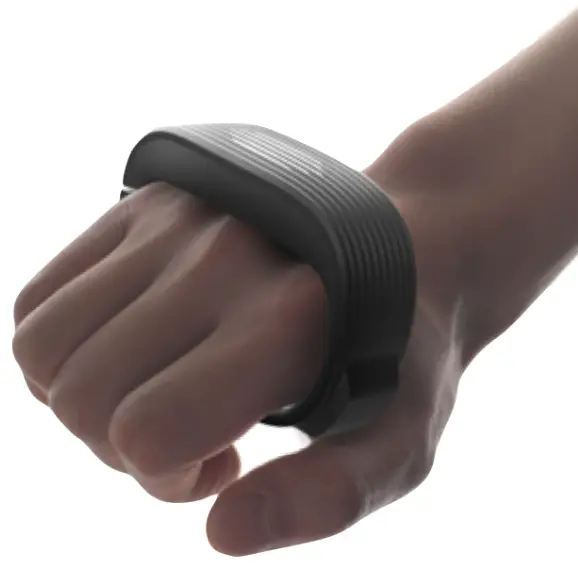

#Wearing position

An easy-wearing method, But numerous gesture recognition.

PERO is a band-shaped product that covers the hand. PERO recognizes gestures efficiently.
The motion sensor detects the movements of the hand and fingers.
Finger movements are recognized through the touch or press of the palm.
Also, the same movement could generate many hand gestures with just a little different position of fingers.

PERO recognizes straight, circle, rolling gestures. And it is even combined of those three.

MULTI-GESTURE RECOGNITION

#Thumb Button
Lange thumb To be dexterous.

Touch your thumb to start PERO, then press the button to activate the device. PERO is designed to be able to handle the device more efficiently and quickly

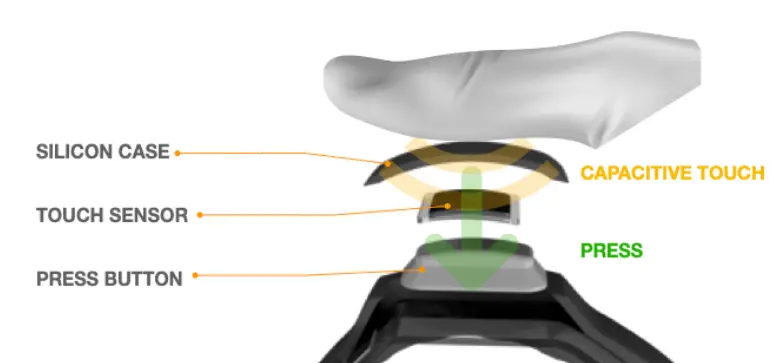

STRUCTURE OF THUMB PART

#Touchpanel

touching Roughly, Recognizing accurately.

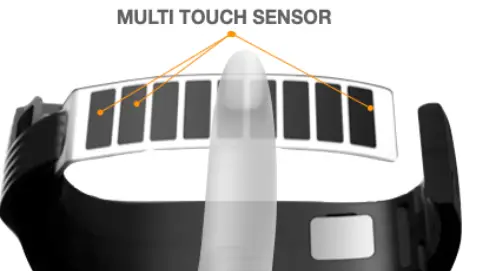

PERO’s palm-side is entirely covered by Capacitive Touch Sensor. So PERO can recognize all fingers easily. PERO can recognize finger pressures accurately wherever you touch it Besides, PERO does not react unless it is fingers.

MULTI & SIMULTANEOUSLY TOUCH INPUT

INSIDE OF PALM PART

#Silicon Uni-body

A comfortable fit to hand, a Flexible wearable device.

For comfort wearing, we used silicone that known as human-friendly. Specifically, silicon patterns improve hand adhesion and reduce pressures.

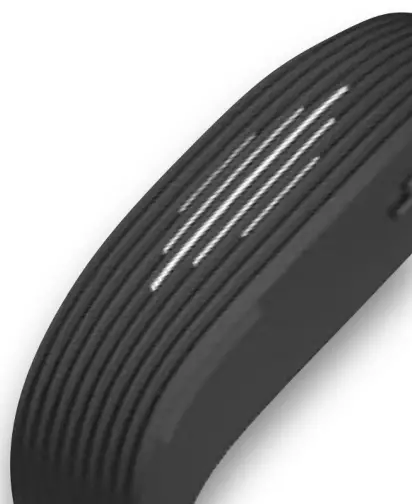

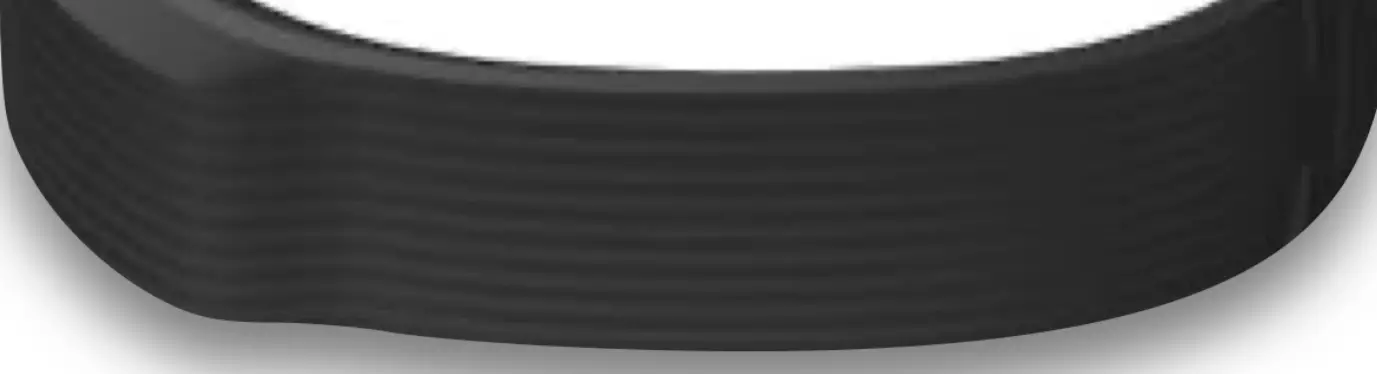

SILICON CASE
HIGH ELASTICITY LOW-PRESSURE PATTERN DESIGN

Module of palmchat
#Whatever

Whatever systems you use, From old PC to Smartphone.
If the device supports Bluetooth 4.0 or a higher version, there are no restrictions on the terminal specification or environment. In addition, PERO supports communication such as Wifi and RF through module customize.

#Simply connect

Use right away, Without any other.

You can still use the profiles and protocols that your existing device or application used. Just mapping commands to gestures without developing the additional interface.

#Easy config

No need for Experts nor Developers. Using PERO

We will provide a variety of APIs such as ‘programs for systems’, ‘command sets for several devices’, and ‘data sheets for custom development’.
APIs and programs are under development and will be distributed in the winter of 2019.

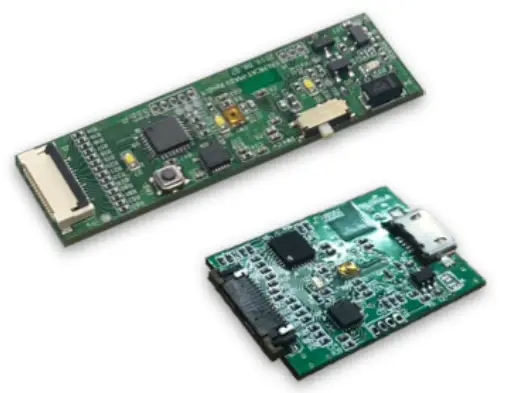

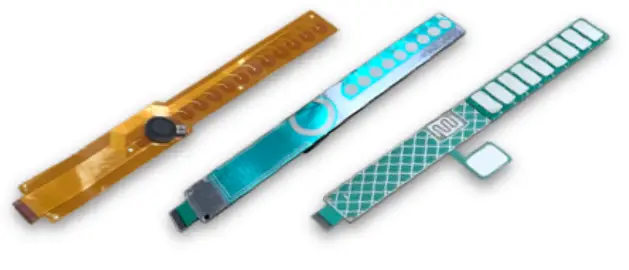

Palm motion-sensing board

Film type Touch panel

#Motion sensing module

Evolve your product with a new Control Method!
Add advanced controls on devices in a wide range of disciplines, including industrial equipment, hobby RCs, drones, leisure gloves, and VR/AR devices, to boost your product’s competitive edge.
The film-type touch panel can be processed in any form. Also, it is possible to manufacture suitable for all environments and UX

Specs of pero

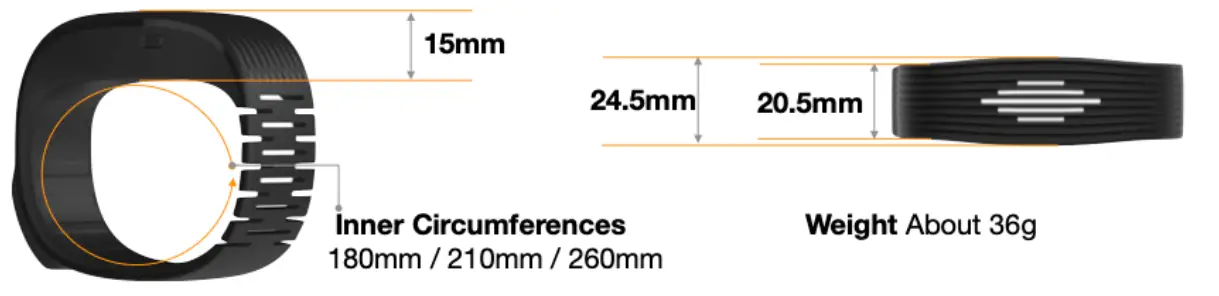

Size
Bluetooth	Version over 4.0 2.4 GHz transceiver -96 dBm sensitivity in Bluetooth®	low energy .
Battery .	Spec Li-Po 3.7V 110mAh 0.555Wh Micro USB 5pin or USB-C	Time Usage 37 hrs I Standby 166 hrs
Sensor	9X Giro 10ch Touch
Supporting System	PC Windows / macOS / Linux	Mobile Android / iOS / Windows

FCC Information to

User, This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

Caution
Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC Compliance Information: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

IMPORTANT NOTE:
FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 0.5 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
