IKEA SMAKSAK Microwave and Oven Combi with Forced Air Stainless Steel
INSTRUCTION
HOW TO USE

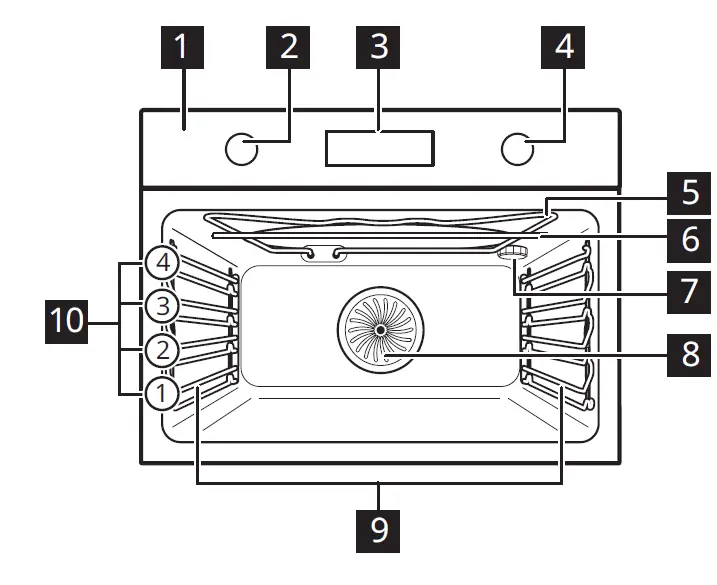

General overview

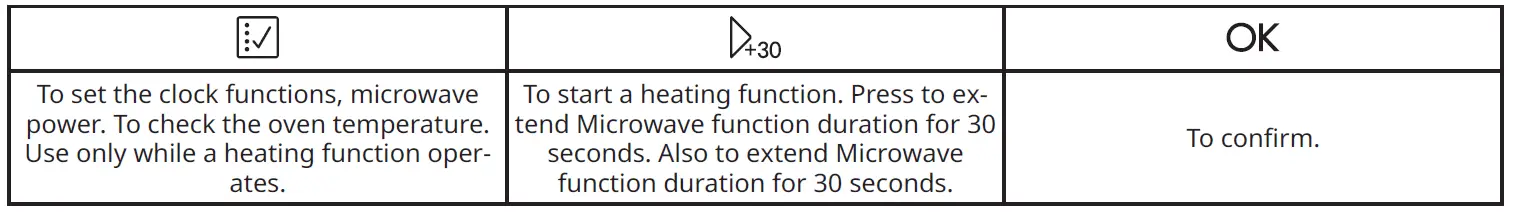

- Control panel
- Knob for the heating functions
- Display
- Control knob
- Heating element
- Microwave generator
- Lamp
- Fan

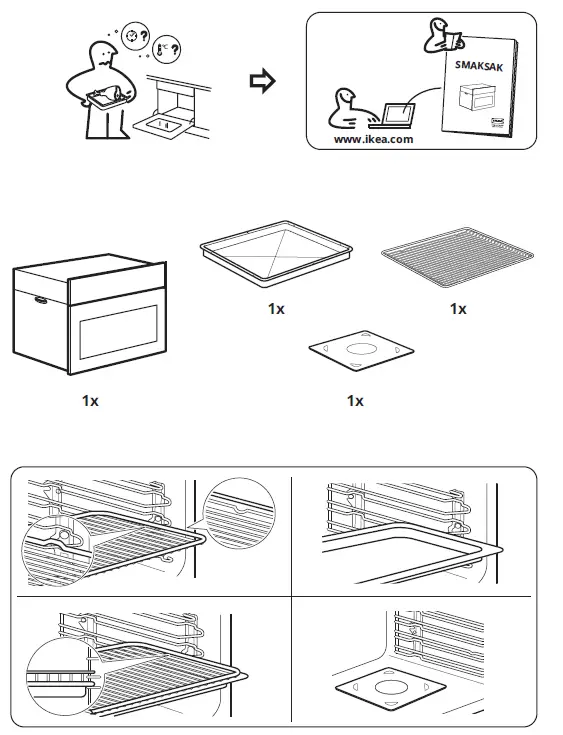

- Shelf support, removable
- Shelf positions

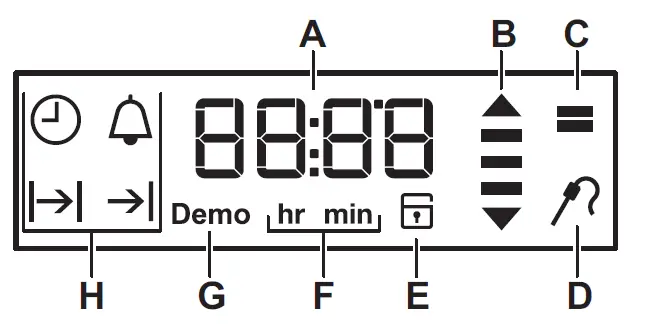

Display
- A. Timer / Temperature / Microwave power
- B. Heat-up and residual heat indicator
- C. Microwave mode
- D. Food Sensor (selected models only)
- E. Door lock (selected models only)
- F. Hours/minutes
- G. Demo mode (selected models only)
- H. Clock functions

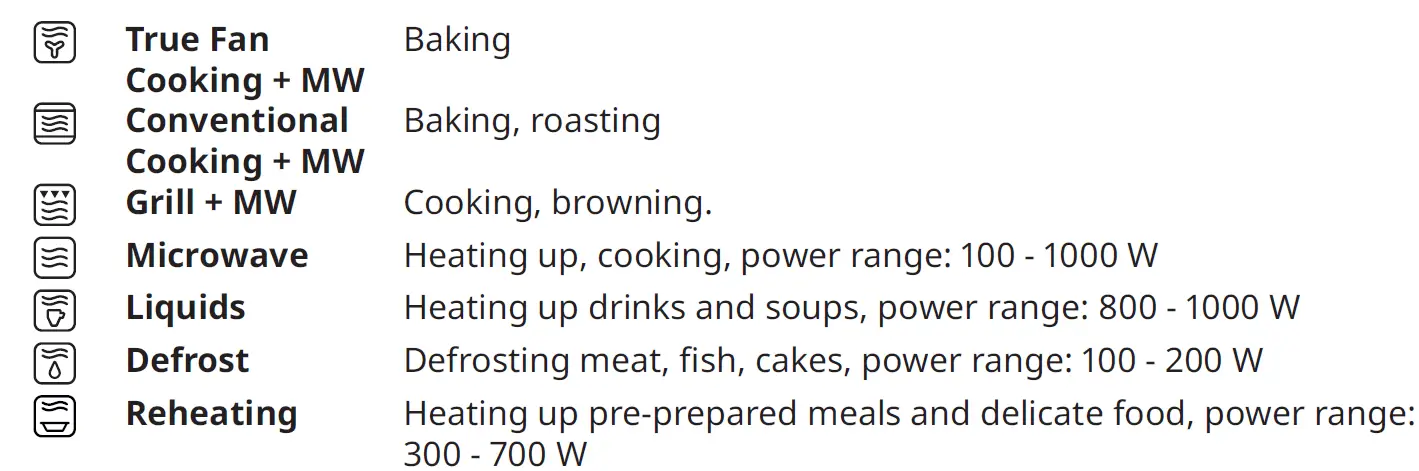

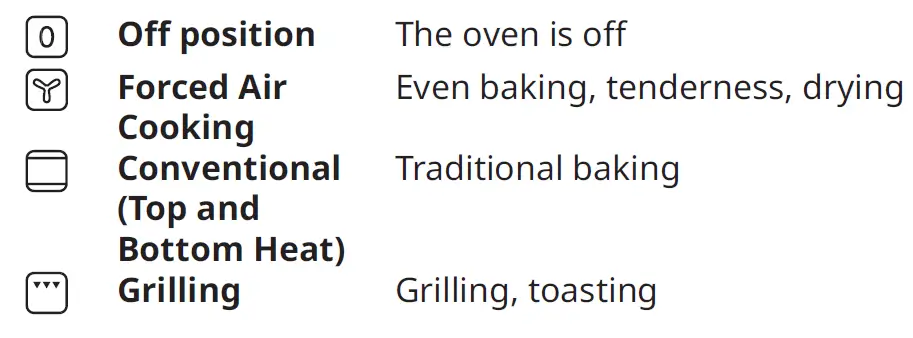

Heating Functions

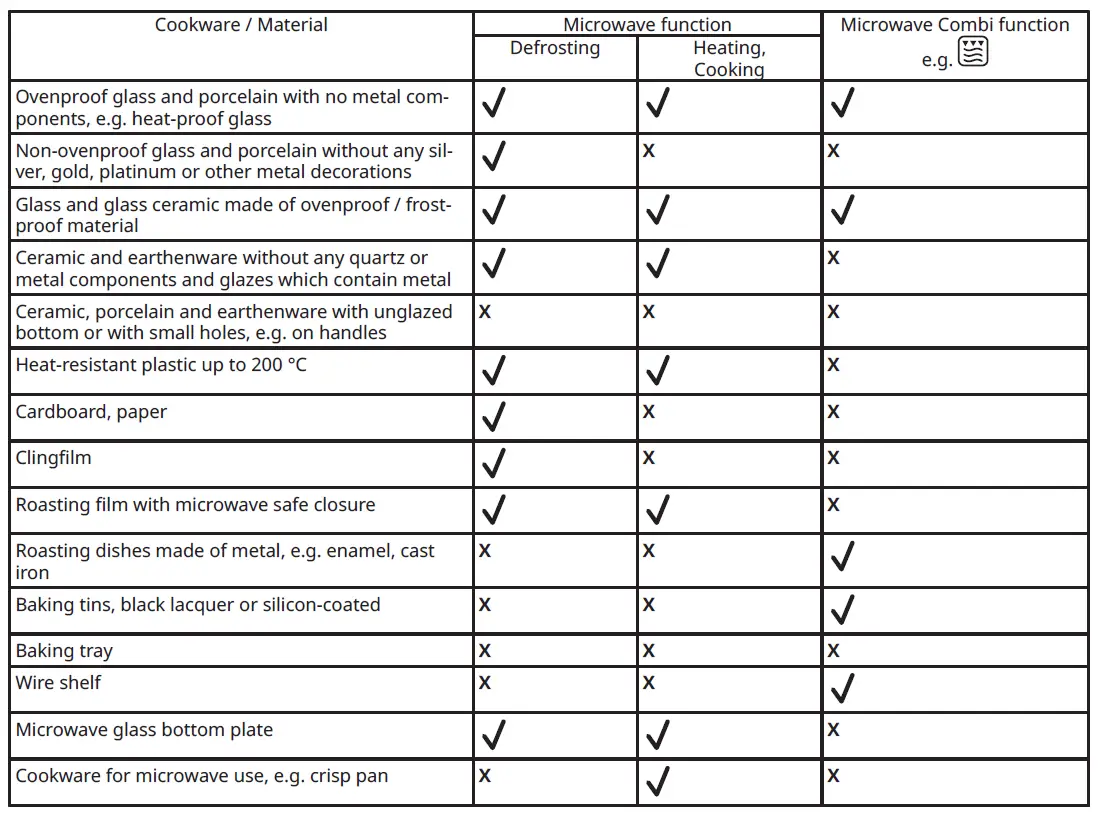

Microwave suitable cookware and materials
For the microwave use only suitable cookware and materials. Use the below table as a reference.
Check the cookware/material specification before use.
Troubleshooting
If you encounter an issue with your appliance, check the “Troubleshooting” chapter in the full version of the User Manual available on: www.ikea.com.
| Dimensions (internal) | Width Height Depth | 480 mm 217 mm 411 mm |
| Usable volumes | 43 l | |
| Area of baking tray | 1424 cm² | |
| Top heating element | 1900 W | |
| Bottom heating element | 1000 W | |
| Grill | 1900 W | |
| Ring | 1650 W | |
| Total rating | 3000 W | |
| Voltage | 230 – 240 V | |
| Frequency | 50 Hz | |
| Number of functions | 10
| |
