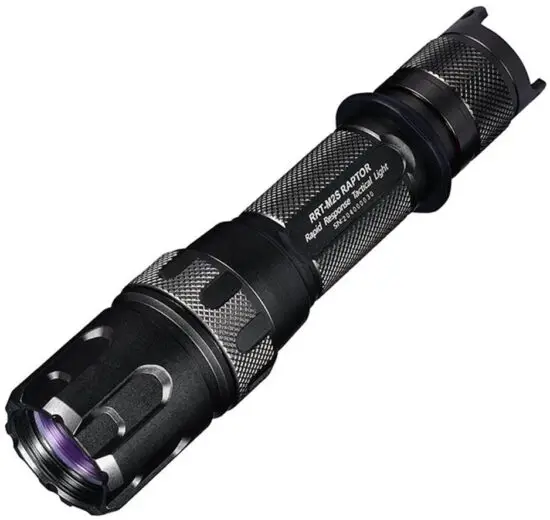

Jetbea Light Rrt-m2s White Laser Flashlight User Manual

Jetbea Light RRT-M2S White Laser Flashlight User Manual

Features

• Tactical tail cap switch and rotary head switch for light change, high light transmission lens, suitable for searching, camping and outdoor activities.
• Uses 1*WP-T2 laser LED
• Max 480LM output, max 1000m beam throw
• Constant digital printed circuit board design, max runtime 11.5 hours
• Battery anti-reverse protection circuits
• Filmed mineral scratch-resistant glass
• High-strength aerospace aluminum alloy
• HAIII hard anodizing finish
• IPX-8 water resistance (2 meter submersible)
• Impact resistance of 1.5m

Specifications

• LED: WP-T2 laser LED
• Input: 2.7V-4.2V
• Reflector: Lens
• Glass: Filmed mineral scratch-resistant glass
• Material : HA-III military hard-anodized finish aluminum alloy
• Housing: Premium Type III hard-anodized anti-abrasive finish
• Battery: 1*21700/1*18650
• Switch: Tactical tail cap switch and rotary head switch
• Length: 156mm
• Head size: 036.5mm
• Body size: 022.5mm
• Weight: 161g (exclude battery)

Battery For Use

Output & Runtime

FL 1 STANDARD	High	Medium	Low	Strobe	SOS
	480LM­ 250Lm	75LM	15LM	300LM	300LM
	3min+  4.4h	7h	11.5h	9.7h	8.5h
	1000M
	250000cd
	1.5m (Impact Resistance)
	IPX-8 (Underwater 2 meter)

Note
The above data is based on the international flashlight measurement standard ANSI / NEMA,The measurement method described in FL1 is measured in a laboratory using a JETBeam 21700 5100mAh (3.7V) rechargeable lithium battery. Different batteries or use environments may affect the above data.

Operation of flashlight

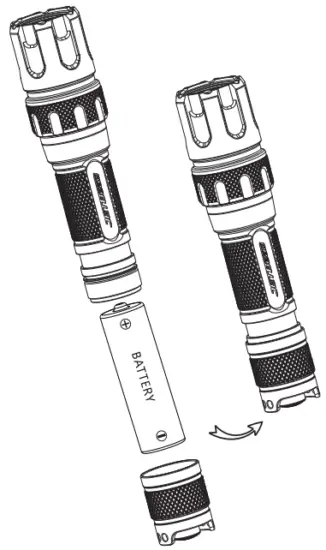

Insert the battery

1. Open the tail cover and remove the flashlight and battery from the package
2. Insert the battery’s positive pole towards the head of the flashlight (the end where the LED is located)
3. Tighten the end cap and insert the battery.


Warning

1. Please put the battery in the direction of the positive pole toward the lamp head, and the battery flashlight will not work if it is reversed
2. Do not shine light directly on the eyes to avoid damage to the eyes.

ON/OFF

Click the tail switch for ON/OFF.

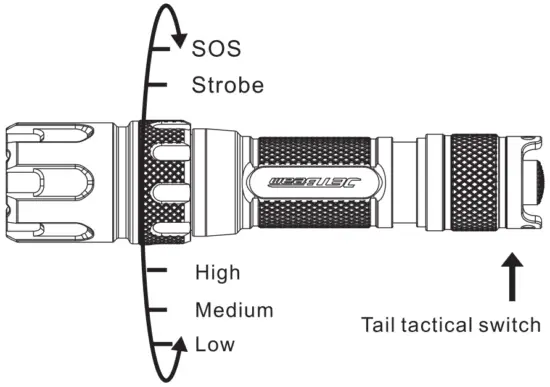

Brightness and mode adjustment

When the light is turned on, rotate the magnetic ring to changes the various brightness modes from Low-Middle-High-Strobe-SOS.

Protection function

• The circuit board has temperature protection function, when over 60°C at the high mode, the brightness output will slow down to 250LM
• The circuit board has time control ability, when over 3 minutes at the high mode, the brightness output will slow down to 250LM.
• The circuit board can slow down the brightness output step by step when uses Li-on battery.
• The circuit board has low battery protection function, the power will shut down when voltage less 2.8V

Light Maintenance

1. Take the battery out for storage if light will not be used for a long time
2. Keep the light away from heat, static electricity, and high humidity
3. Clean the thread and conductive contact of light with soft cloth. Lubricate the threads every 6 months

Warranty

We provide 60 months(5 years)of warranty period for this product from the date of purchase in case defects caused by material or workmanship with normal use. Necessary material and labor cost will be charged after this period.

Free warranty does not cover any damages or failure if:

1. This product is disassembled or modified by anyone other than an authorized JETBeam warranty technician.
2. This product is damaged by using the wrong battery or incorrect usage.
3. This product is damaged by defective batteries (such as battery leak).
4. Salt water and corrosive damage to the unit.

Service

1. In need of warranty service, please contact your local official JETBeam dealer
2. To contact JETBeam, please refer to below information:
   Email: [email protected]
   Phone: +86-0755-28077748
   For the latest update, please visit [email protected]
