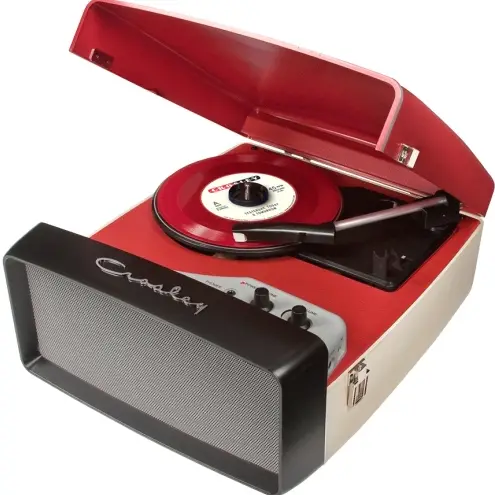

Crosley CR6010A-RE Collegiate Portable USB Turntable
INSTRUCTION
Removing your needle cover
Your turntable features a protective cover on your needle. If so, it will be white in color and you will need to CAREFULLY remove it while being sure not to remove the needle.
Why does the needle slide across the record?
Make sure the red plastic needle was not removed when the protective cover was taken off. If the needle still doesn’t track properly across the record it may be time for a needle replacement. Please call Crosley Radio at 1-866-CROSLEY for assistance.
Why does my turntable stop before the end of a record?
(PLEASE SEE TONE ARM ADJUSTMENT GUIDE)
Why does the turntable turn too slow or too fast?
Make sure the correct speed is selected for the record you are playing. If this doesn’t resolve the issue please contact Crosley Radio at 1-866-CROSLEY for assistance.
The record is playing, but there is no sound.
Make sure to remove the white protective needle cover from the end of the tone arm. Make sure the needle was not removed when the protective cover was taken off. If equipped, make sure the LINE IN switch is in the OFF position. Make sure a PAR cable is not inserted into the LINE IN input. Adjust the volume to a higher level. If you still experience issues, please call Crosley Radio at 1-866-CROSLEY for assistance.
What is the screw next to the turntable?
If your turntable has one, it is the Turntable Suspension Screw. For transportation, it is raised all the way up to lock the turntable deck in place for safe transit. For use, the screw will need to be turned clockwise down to the deck to allow the suspension to work properly.
Is my Crosley turntable under warranty?
Every Crosley product features a 1 year limited manufacturers warranty from the date of purchase.
If a part breaks, can it be replaced after the warranty expires?
Yes. Please contact Crosley Radio at 1-866-CROSLEY for assistance on replacement parts. For additional information please refer to your owners manual.
Belt Installation Guide

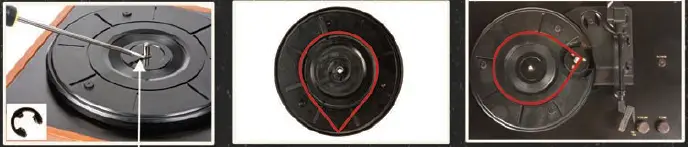

- Step 1: Using a small flat head screwdriver or pick, remove the metal clip located in the center of the platter at the base of the chrome spindle.
- Step 2: Turning the platter upside down, install the belt on one of the two installation pin and around the outer edge of platter, creating a triangle as shown.
- Step 3: Place the platter back Over the spindle, making sure to align the triangle over the pulley. The pulley is located to the right and is surrounded by 3 screws (see photo). Be sure not to touch the belt and carefully set straight down.

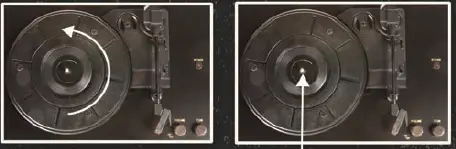

- Step 4: Spin the platter COUNTER CLOCKWISE, rotating the platter freely until you hear a pop this will be the belt dropping. If the platter does not spin freely, the belt missed the pulley, and steps 3-4 will need to be repeated.
- Step 5: Once the belt is reinstalled and the turntable is working, snap the metal clip back into place.
Tone Arm Adjustment Guide

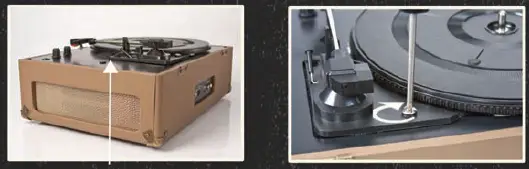

- Step 1:Unplug the turntable and remove the lid. Position the turn- table with the tone-arm side facing the front.
- Step 2: Make sure the large screw on top of the turntable is turned CLOCKWISE until flush with the turntable.

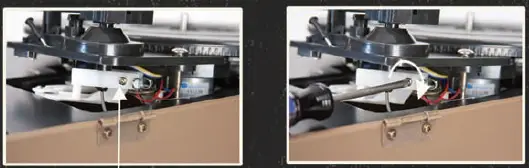

- Step 3: Lift the tone-arm side of the turntable high enough to see the chrome screw.
- Step 4: Using a Phillips head screw driver, tum the chrome screw CLOCKWISE in half tun increments to extend the playing time.
FAQS
Can someone comment on the Software Suite?
This is a portable record player… Sorry, don’t understand your question.
Does it play all sizes of Vinyls?
It will play 7″, 10″, and 12″ records no problem (though not with the lid attached). It will play 33, 45, and 78 rpm records (33 and 45 being the most common)
Is it well-built or is it your typical Chinese crap?
YouTube video review of this record player can be found online that is really and actually shows that the quality is not as bad as some people say.
Can you play an iphone through the unit? Is it compatible?
Yes, you can use the Crosley CR6010A as an amplifier for Iphone & Ipad.
Does it have a build in rechargeable battery inside ?
no battery, electric use only.
Do I need an adapter or transformer to run this on 220?
Yes you will need one to run this turntable in Germany.
how many watts does the speaker have?
The speaker, only one, has I believe 15 or 25 watts. It sounds good for one small room. I was able to jack input it to my stereo
does it come with 220-240v power supply adapter or is it 110v?
Comes with 110 only.
Does it have a way to adjust the tracking weight of the tone arm?
It isn’t an official feature, but you can adjust the counterweight in the back loosen for lighter tracking, tighten for heavier tracking. Ideal tracking for this Magnetic cartridge is around 2.5 grams.
Does the player have an auto-return arm?
The Crosley CR6010A-Re has no auto-return arm function. But the record player has auto stop
does it have and auto return arm?
No it have and auto return arm
does it play 12 inches or 10’s?
It plays 45’s and 33’s and 78’s. I believe a 33 is 12″ and 10″ is a 78.
Does this model have the switch that turns off the auto-stop?
Yes this model have the switch that turns off the auto-stop
Does it have a adapter inside
This item comes with the power adapter. It does not have a compartment to store the power adapter in. Kindest regards,
