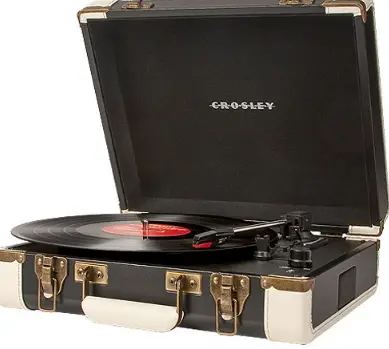

Crosley CR6019D Radio Executive Portable Turntable

Safety Instructions

• Do not use this product near water.
• This product should be operated only by the type of power source indicated on the marking label or in this instruction manual.
• Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one blade wider than the other. This plug will fit into the power outlet only one way. If you are unable to insert the plug fully into the outlet try reversing the plug. If the plug should still fail to fit, contact your electrician.
• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
• Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
• Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
• Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
• Changes or modifications to this unit not expressly approved by the party authority to operate the equipment.
• Do not use attachments not recommended by the product manufacturer as they may cause hazards.
• A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
• Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating. Do not block or cover these openings.
• Unplug the product during lightning storm or when unused for long periods of time

Items in this package

• Turntable
• 45 RPM adapter
• 3.5mm aux in cable
• USB cable
• Power adaptor

Specifications

• Power AC power adaptor, DC output 5V 1A
• Power consumption 9W
• Speaker 4 , 3W x 2
• Turntable speed 331/3, 45, 78 RPM
• Replacement needle Crosley NP6

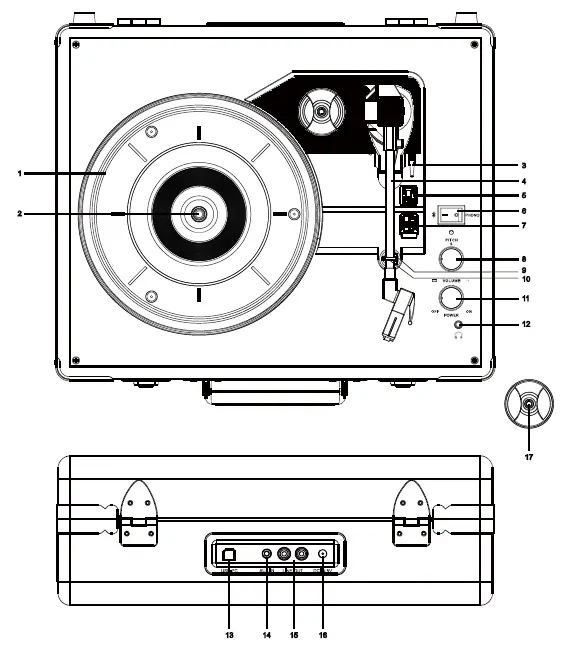

Product Description

• Turntable Platter
• Turntable Spindle
• Tonearm Lever
• Tonearm
• Function Switch
• Auto-stop Switch
• Pitch Control
• Speed Switch
• Tonearm Rest
• Hold Down Clip
• On/Off-Volume Knob
• Headphone Jack
• USB Jack
• Aux In Jack
• RCA Jacks
• Power Jack
• 45 RPM Adapter

Initial Setup

Essential Setup

• Place the unit on a flat and level surface. The selected location should be stable and free from vibration.
• Remove the tie-wrap that is holding the tonearm.
• Connect AC adaptor to the Power Jack of the unit.

Stereo System Connection

RCA Jacks

• The RCA Jacks output analog line-level signals and could be connected directly with a pair of active/powered speakers or the appropriate input of your stereo system.
• The Red plug connects with the Right channel and the White plug connects with the Left channel.

Aux Input Connection
You can connect an audio device to this unit and play your music through its speakers. To do this, connect the 3.5mm auxiliary cable between your audio device and the Aux In Jack of this unit and start playing the music. Note: The aux in connection will automatically override the turntable function. To resume using the turntable function, unplug the auxiliary cable from the aux in jack. The Function Indicator will be purple.

Turntable Operation

• Rotate the On/Off Volume Knob to turn on the power.
• Set the Function Switch to PHONO position.
• Note: The Function Indicator will be red
• Set the Speed Switch accordingly.
• Place the record on the turntable. Use the 45 RPM Adapter if necessary.
• Remove the stylus protector from the stylus assembly.
• Note: To avoid stylus damage, make certain the included stylus guard is in place whenever the turntable is being moved or cleaned.
• Release the tonearm Hold Down Clip.
• Note: when the turntable is not in use, remember to lock back hold down clip.
• Use the Tonearm Lever to lift up the tonearm.
• Gently move the tonearm over the record where play is desired to begin. Set the Tonearm Lever back to the down position, the tonearm will descend slowly onto the record and begin to playback.
• When the record is finished playing, use the Tonearm Lever again to raise the tonearm and then return it to the Tonearm Rest. Release the lever to let the tonearm sit back at its rest. To suspend the playback, repeat the same steps.
• Lock the Tonearm Clip to secure the tonearm

Platter Auto-stop
If the Auto-stop Switch is set to ON position, the platter will stop spinning automatically when the record plays to the end. In some rare occasion, if the turntable stops playing before the end of the record, set the switch to OFF position the turntable should overcome this issue

Pitch Control
The turntable speed can be increased or decreased by approximately 10% by rotating the Pitch Control knob. To increase the speed, turn the Pitch Control Knob clockwise. To decrease the speed, turn the knob counter-clockwise

Needle Replacement

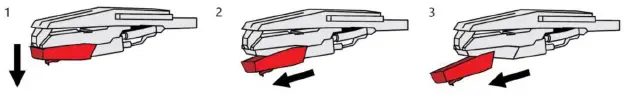

Removing Needle

• Gently pull down the front edge of the needle.
• Pull needle forward.
• Pull out and remove

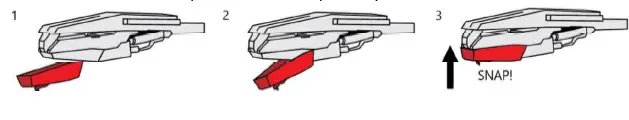

Installing Needle

• Position the needle with its tip facing down.
• Line up the back of the needle with the cartridge.
• Insert the needle with its front end at a downward angle and gently lift the front of the needle upward until it snaps into place

USB Recording

To record the vinyl into digital file formats such as MP3, you can use the USB Output Jack recording program of your choice. 1. Use the supplied USB cable to connect the unit to your computer. 2. Turn on the power of the turntable. 3. Run the recording program of your choice.

Bluetooth Operation

• Turn the Function Switch to Bluetooth mode
• Note: The function indicator will be flashing blue.
• Turn on the Bluetooth feature of your audio device, search for “Crosley CR6019D” and pair.
• Once your device is successfully paired with the unit, you will hear a short confirmation sound from the unit, and the function indicator will be blue.
• Play and stream music from your device to the unit

Turntable Maintenance

• Do not touch the stylus tip with your fingers. Avoid bumping the stylus on the turntable mat or a record’s edge.
• Clean the stylus frequently with a soft brush with a back-to-front motion only.
• Clean the records to get rid of dust or grease with a record cleaning brush and record cleaning solution.
• Clean the turntable lid and turntable cabinet with a slightly damped microfiber cloth.

Troubleshooting

There is no power

• Power adaptor is not connected correctly.
• No power at the power outlet.
• To help save power consumption, some models will comply with ERP energy saving standard. When there is no audio input for 20 minutes, their powers will automatically cut-off. To turn power back on and resume playing, turn off the power and turn it on again.

Power is on, but the platter does not turn

• An aux in cable is plugged into the aux in jack, unplug it.

Turntable is spinning, but there is no sound, or sound not loud enough

• Stylus protector is still on.
• Tone arm is lift up by the lever.
• Headphone is plugged in.

FCC

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
