VIMAR 02084 CALL-WAY Landing LED Lamp
Wall Installation

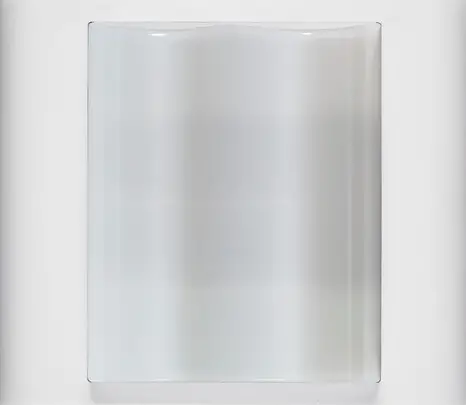

Landing LED lamp, four colors (green, white, red, amber), wall installation
The device, installed in hallways and near room doors, uses color combinations to show the different types of calls made by patients or the nursing staff and any diagnostic messages.

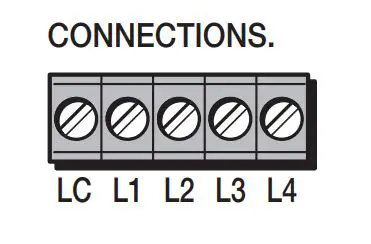

CONNECTIONS
| LC | L1 | L2 | L3 | L4 |
| Common positive | Red light | Greenlight | White light | Orange light (only lamps with 4 sections) |
See the instruction sheet of items 14501.AB, 14503.AB and 14504. AB.
OPERATION
| CALLER | TYPE OF CALL | IDENTIFICATION (DIN VDE 0834-1:2000-04) | WARNING | CALL METHOD |
|
PATIENTS |
Normal call | Nurse call |
| The patient makes a call from the room to the nurse’s station. The patient (or a family member), presses the button on the communication terminal or on the display module (it is equivalent to a call from a keypad). |
| Bathroom/WC call |
| The patient makes a call from the bathroom to the nurse’s station. | ||
|
STAFF ON DUTY (nurse) | Call for assistance | Emergency call (second presence) |
| The nurse, with presence inserted, repeats the call from the keypad or the button on the communication terminal or the display module. |
| Call for assistance in bathroom/WC |
| The nurse, with the presence of the bathroom inserted, repeats the call from the bathroom. | ||
| Doctor call (emergency) | Emergency call |
| The nurse must hold down the call button for 3 seconds or press, again for 3 sec and with presence inserted, the button on the communication terminal or the display module. | |
| Doctor call bathroom/WC |
| The nurse, with the presence of the bathroom inserted, must pull the bathroom ceiling pull-cord for approximately 3 sec. | ||
|
DIAGNOSTICS |
Diagnostics call |
| Possible when connecting an electro-medical instrument with a clean contact output. |

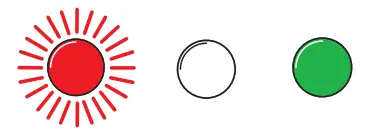

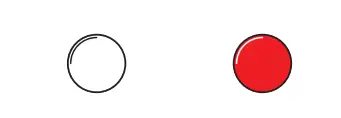

LIGHT ON steady

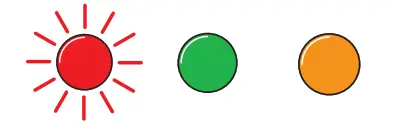

LIGHT flashing at intervals of 1 sec

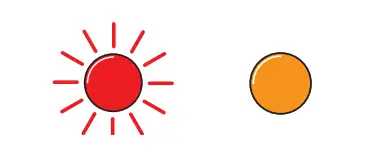

LIGHT flashing at Intervals of 0.3 Sec
INSTALLATION RULES
Installation should be carried out by qualified personnel in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed.
REGULATORY COMPLIANCE
- EMC directive. Standards EN6095-1, EN61000-6-1, EN61000-6-3.
- REACH (EU) Regulation no. 1907/2006 – Art.33. The product may contain traces of lead.
