USB Type C Video Splitter
USER INSTRUCTIONS
Thunderbolt™ 3
CSV – 1577

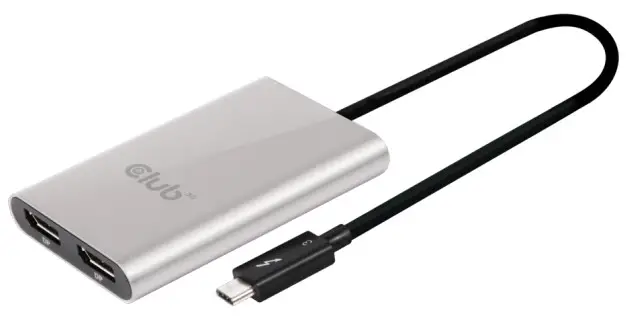

CSV-1577 Thunderbolt™ 3 to DisplayPort™ 1.2
Dual Monitor 2x 4k @ 60Hz or 1x 5k@ 60Hz
- Compatible with Thunderbolt™ 3 over USB Type C source
- Compliant to Displayport™ 1.2 specification
- Supported max. output resolution for Dual Screen setup: up to 3840x2160p @ 60Hz
- Powered thru Thunderbolt™ 3, 15Watt, no external power needed
- OS Support: Mac OS™ Sierra and Windows™ 10
Important note for Apple M1-chip based computers:
Please note that for Mac Systems based on M1 Architecture the Multi-Display function of Thunderbolt 3 is not enabled.
This product will not work with the M1 Architecture.
Thunderbolt™ 3 video splitter, your laptop, and two screens

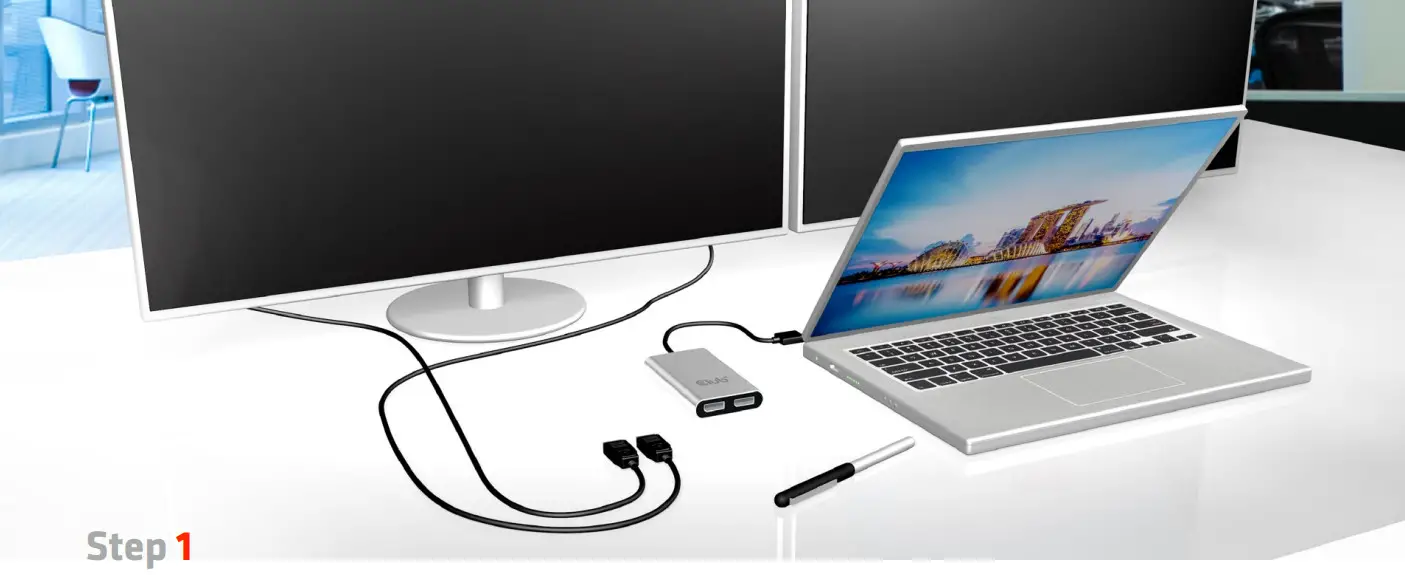

Connect your Thunderbolt™ 3 video splitter with your laptop

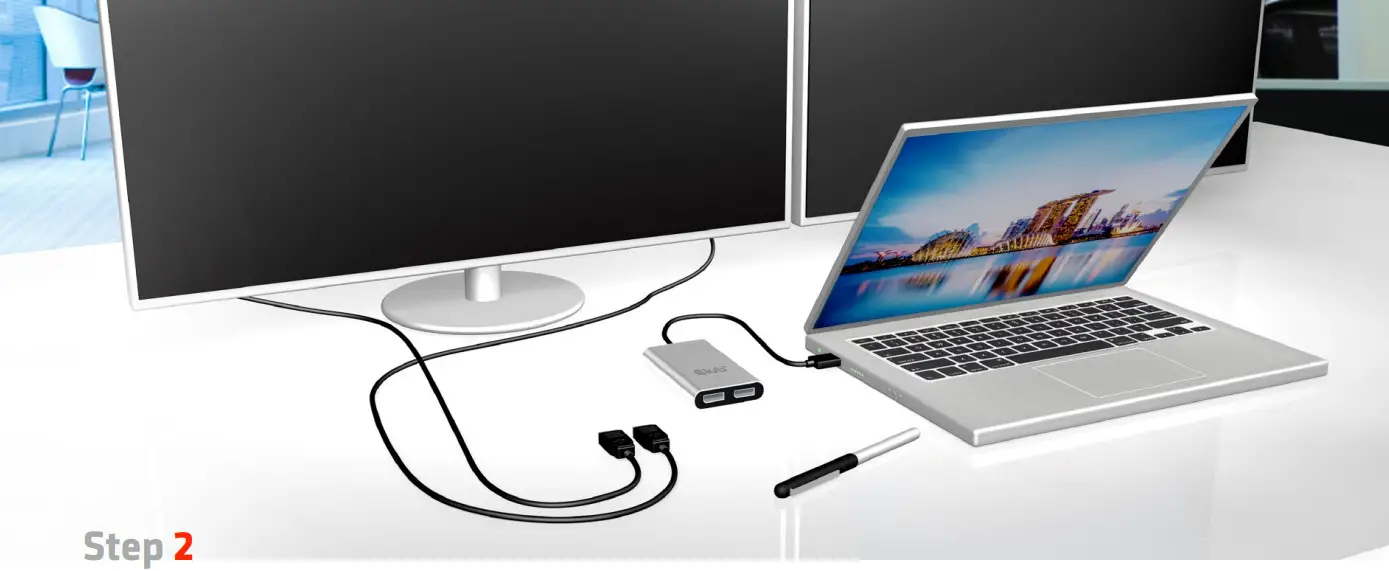

Connect your Thunderbolt™ 3 Splitter with your DisplayPort™ Cables
You can use Club3D Cables: CAC-1066 or CAC-1064
When your Thunderbolt™ 3 Splitter is connected it’s Plug and Play

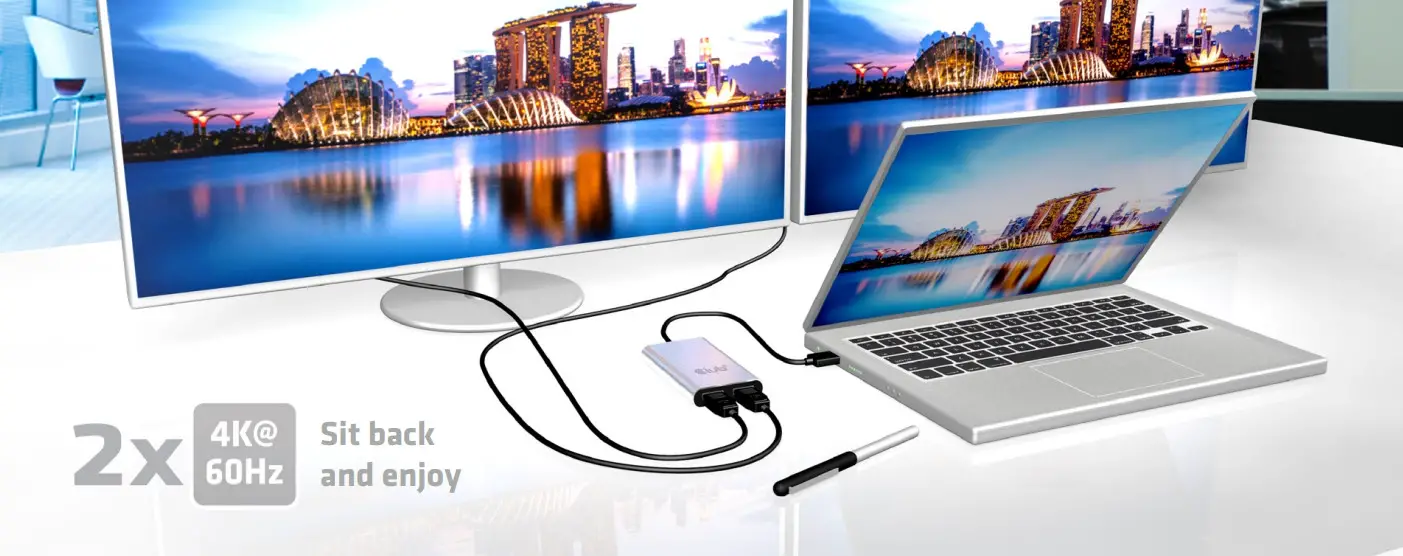

In Mirror Desktop Mode 2x 4k@60Hz
When your Thunderbolt™ 3 Splitter is connected its Plug and Play

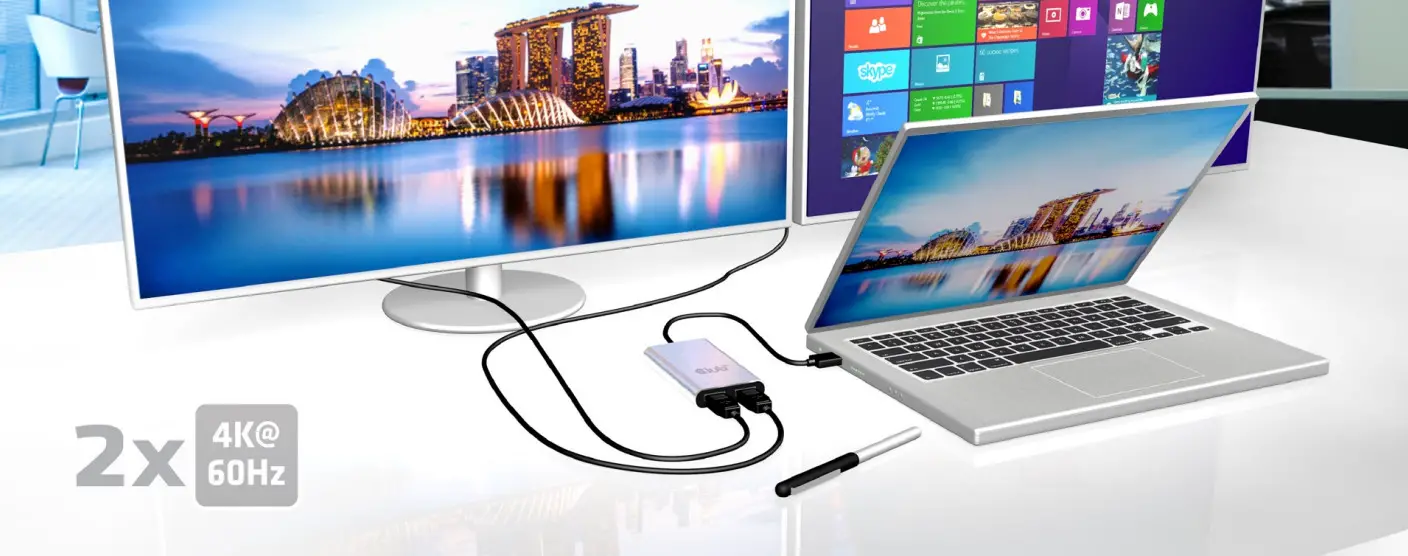

In Extended Desktop Mode 2x 4k@60Hz

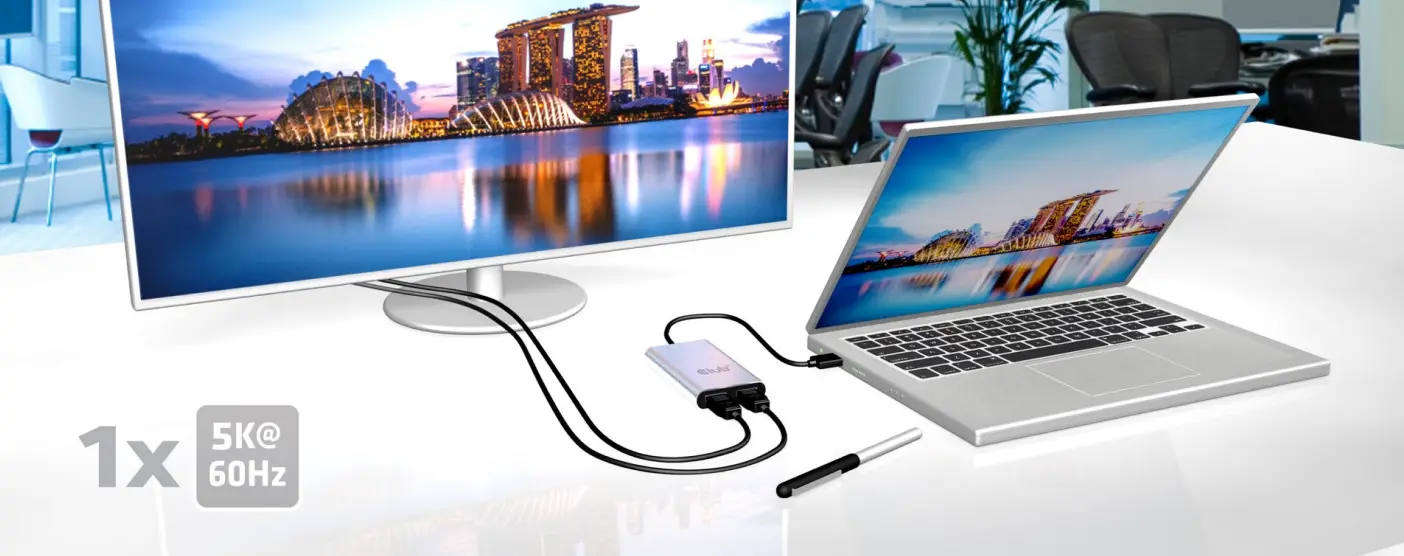

Simply enjoy Thunderbolt™ 3 1x 5K @60Hz quality
In Single Desktop Mode with 2 cables connected
