SIMPLE BUILD INSTRUCTIONS FOR YOUR NEW FROG BIKE
The instructions below will aid you in the final set up process of your new Frog bike.
Please follow carefully to get the most enjoyment out of the bike.
RIDING SAFETY
Always use a helmet which meets the latest certification standards when riding the bike!
See the Owner’s Manual for for additional information – www.frogbikes.com/manuals
The Owner’s Manual contains relevant & useful information; retain for future use.
Please contact our friendly Customer Service Team on +44(0)1784 557300 or email [email protected] if you have any additional queries. They will be more than happy to help you.
PEDAL TO CRANK ASSEMBLY INSTRUCTION

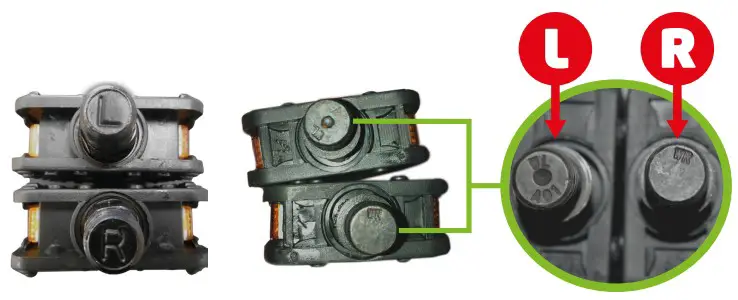

Pedals are marked “L” & “R” for, Left & Right, either on the end of the threaded shaft or on a sticker.
Take care when fitting as the pedal and crank arm will cross-thread if the rong pedal is used.

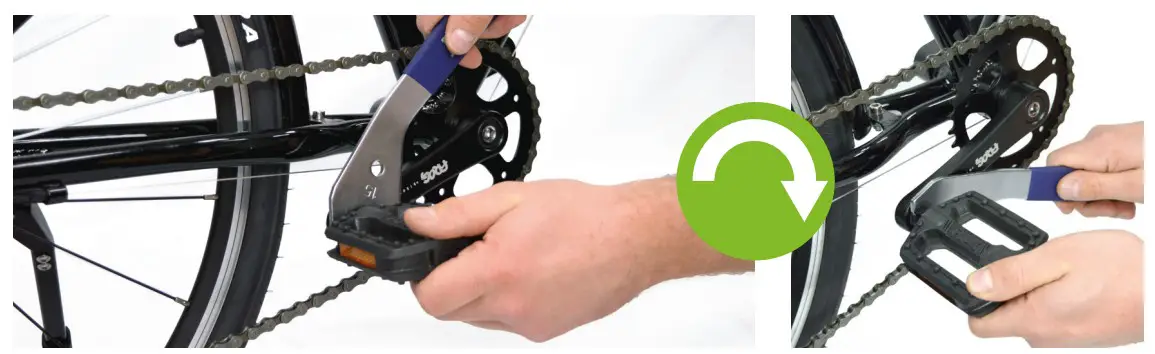

Drive-side (Chain-side): hold the “R” pedal and turn the threaded shaft Clockwise to tighten.

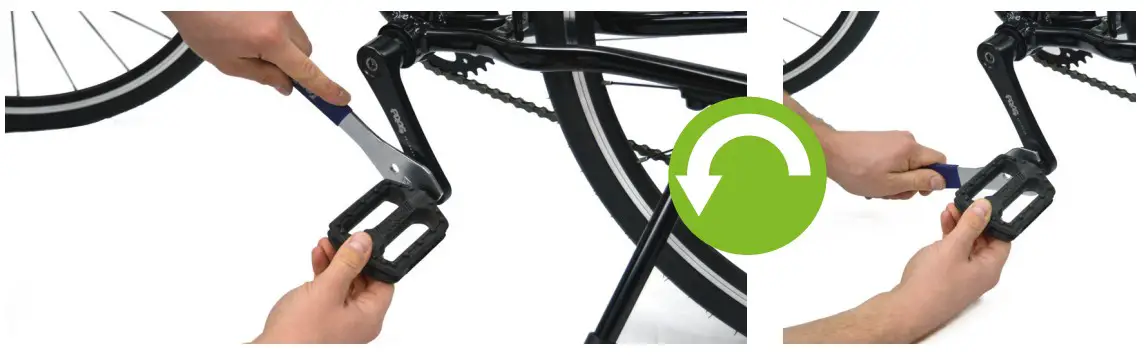

Non Drive-side: hold the “L” pedal & turn the threaded shaft Anti-Clockwise to tighten.
HANDLEBAR ASSEMBLY

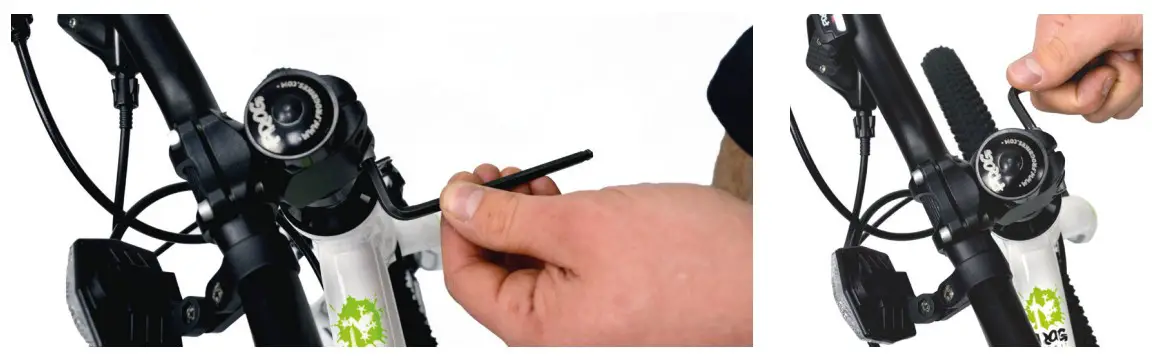

Loosen the two hexagonal head screws on both sides of the stem with the 5mm Allen key.

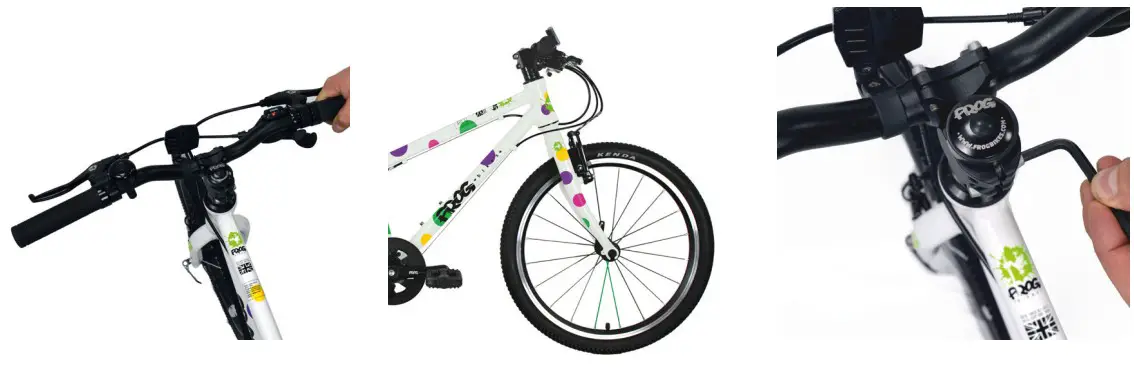

Align the handlebar 90° to the frame so it’s straight.
Ensure forks are orentated in the right direction.
Tighten the two hexagonal screws on the stem with the 5mm Allen key.
BRAKE OPERATION

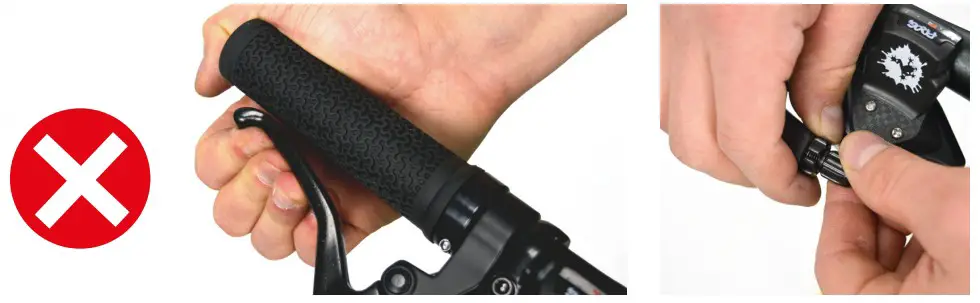

Check the operation of the brakes before allowing the child to ride the bike.

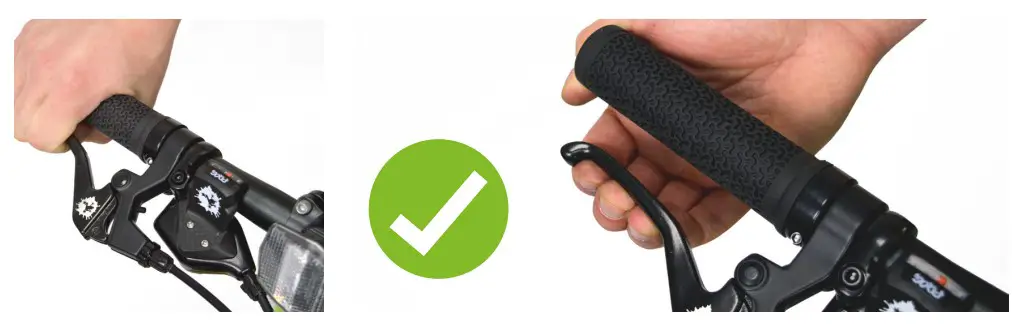

The brakes should feel firm and not pull to the bar.
Finite adjustments can be made with the barrel adjusted on the brake lever.
See the Owner’s Manual for for additional information – www.frogbikes.com/manuals
WARRANTY PLUS
Please go to www.frogbikes.com/warranty to register your bike and claim your FREE Warranty Plus. You will then enjoy 5 years’ warranty on your frame and forks (excluding suspension forks on MTBs) if you complete and submit the Warranty Plus application form within 28 days of purchase. Please see our terms and conditions for full details.
https://www.frogbikes.com/warranty
This bike was built by ……………………
On …………………..
