Trio 626410530 Bellari Led Ceiling Lamp Instruction Manual

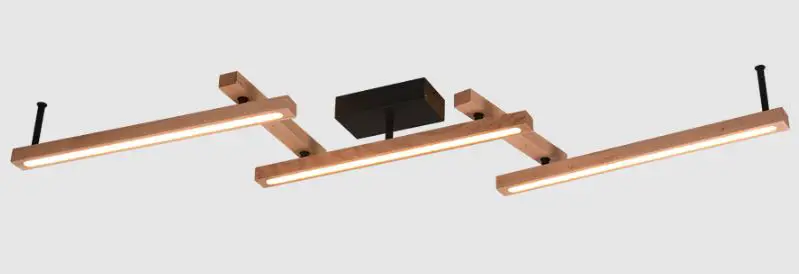

TRIO 626410530 Bellari LED Ceiling Lamp

Instruction

Description of how the light works without the remote control unit

If the light is switched on via the main switch/wall switch, the unit provides the lighting scenario which was last set using the remote control unit (memory effect). Description of how the light works with the remote control unit The synchronous control of several lights is not foreseen.

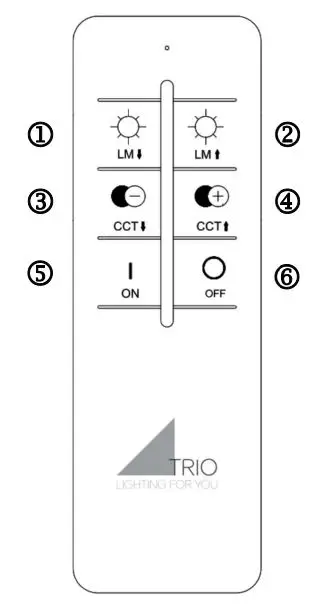

Operation of the remote control

1. Brightness regulator: The adjustment takes place in stages. By pressing for a short period, it is possible to control the individual stages. Pressing the button permanently results in the maximum or minimum brightness being reached.
2. The adjustment takes place in stages. By pressing for a short period, it is possible to control the individual stages. Pressing the button permanently results in the wärmest or coldest colour setting being reached.
3.  On
4.  Off

Set up remote control
Switch on the light using the wall switch and then immediately press button 5. The successful encoding is confirmed by a flashing.

Reset
Switch on the light using the main / wall switch, press the “ON” button (5) five times within 3 seconds. The light confirms this with a flash.

Declaration of Conformity

Hereby, Trio Leuchten GmbH. Gut Nierhof 17, D-59757 Arnsberg, declares that this product is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.trio-leuchten.de
