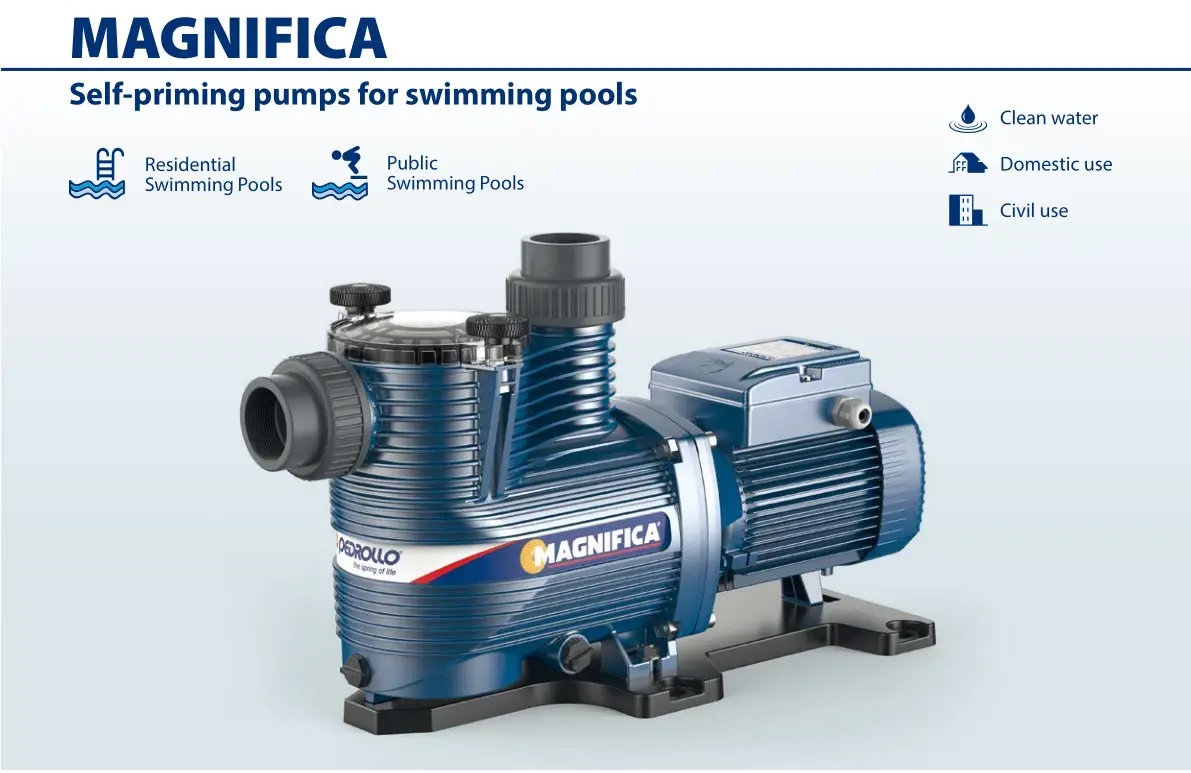

pedrollo MAGNIFICA Self Priming Water
Pumps Instructions
PERFORMANCE RANGE
- Flow rate up to 700 l/min (42 m3/h)
- Head up to 23 m
APPLICATION LIMITS
- Manometric suction lift up to 4 m (HS)
- Liquid temperature up to +45 °C
- Ambient temperature up to +50 °C
- Max. working pressure 2.5 bar
- Continuous service S1
CONSTRUCTION AND SAFETY STANDARDS
EN 60335-1
IEC 60335-1
CEI 61-150
EN 60034-1
IEC 60034-1
CEI 2-3
EU REGULATION N. 547/2012
CERTIFICATIONS
Company with management
system certified DNV ISO 9001: QUALITY
INSTALLATION AND USE
Self-priming centrifugal electric pumps with pre-filter suitable for circulating and filtering the water of swimming pools, especially for
those requiring large flow rates (skimming).
Recommended for residential swimming pools and public swimming pools up to 180 m3.
Waters for use in swimming pools (pH 6.5 – 8.4).
Installation needs to be undertaken in ventilated areas and protected from bad weather with adequate space for maintenance.
PATENTS – TRADE MARKS – MODELS
- MAGNIFICA® Registered Trade Mark n. 018159079
- Registered EU Design n. 007671839
OPTIONS AVAILABLE ON REQUEST
- Other voltages or 60 Hz frequency
- Smooth connection 63 mm
- Smooth connection 2″ BS
- Threaded connection 2″ NPT
※ Particularly sturdy and corrosion resistant electric pumps, made with high quality and thick components, ensuring a long life and quiet operation.
※ High flow rate with low energy consumption.
※ Pre-filter complete with transparent lid to facilitate visual inspection, wing nuts for quick opening without additional tools, extra-large filter basket to reduce the frequency of cleaning operations.
※ Special anti-corrosion plastic base that provides stable support for the pump and piping.
※ Double insulation between hydraulic parts and the electric motor. The pump/motor shaft is never in contact with water to ensure maximum safety.
※ High resistance to heat and to chemical and salt corrosion.
※ Connection fittings with 2″ GAS ISO 228/1 threaded ports. Screws in AISI 316.

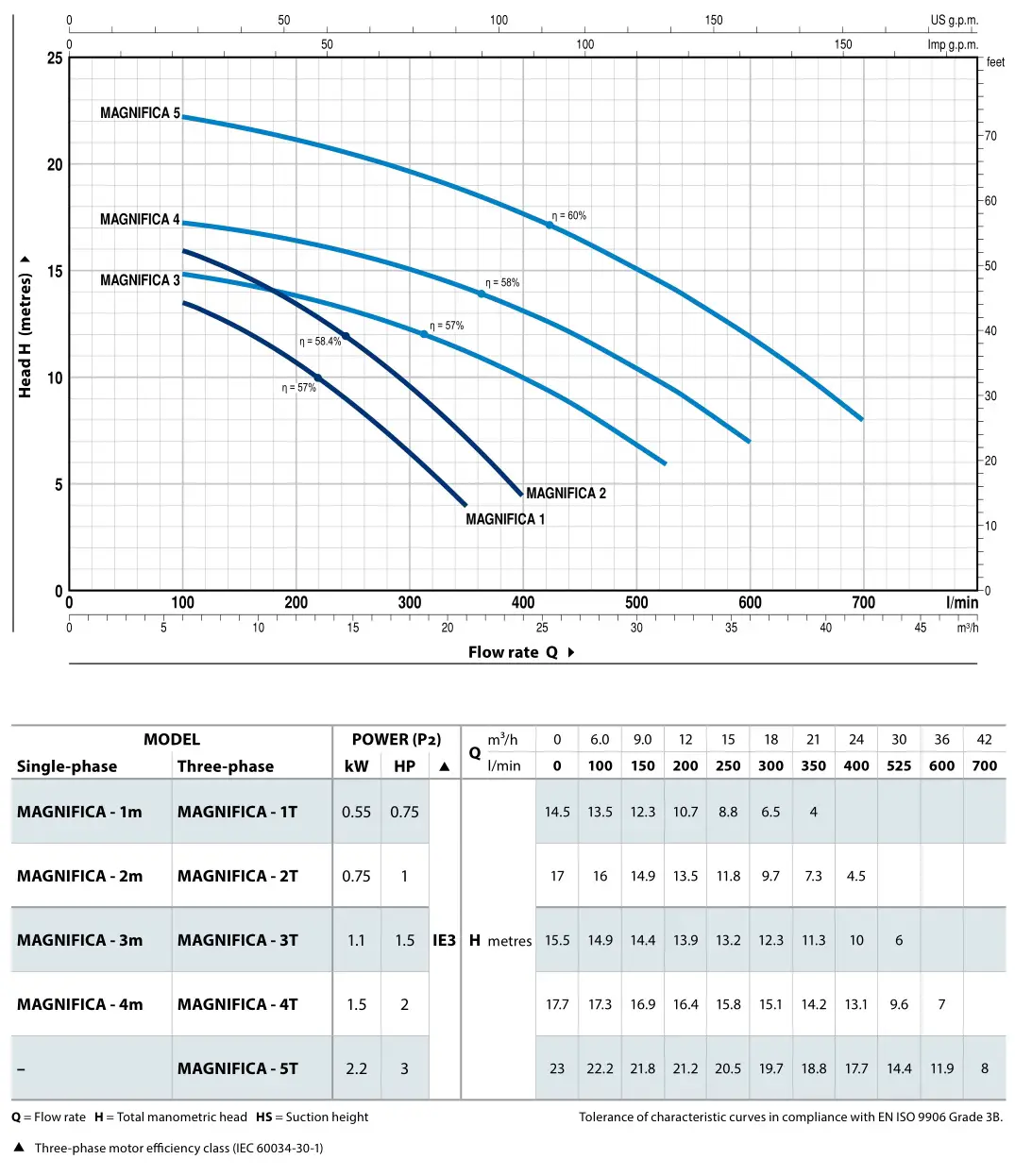

CHARACTERISTIC CURVES AND PERFORMANCE DATA
50 Hz n= 2900 min-1 HS= 0 m

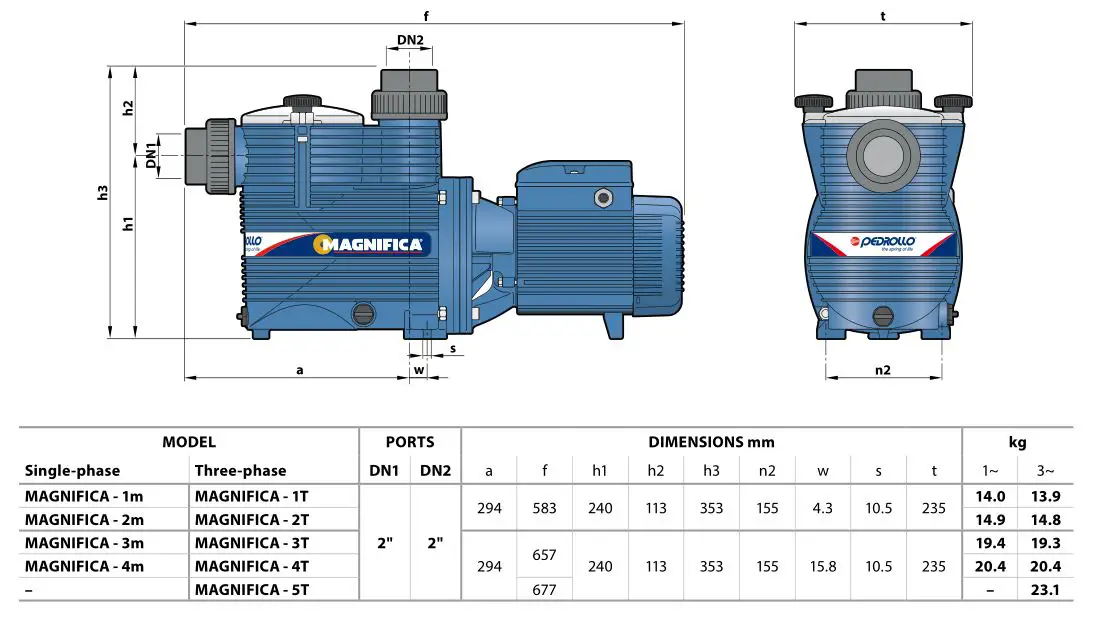

DIMENSIONS AND WEIGHT

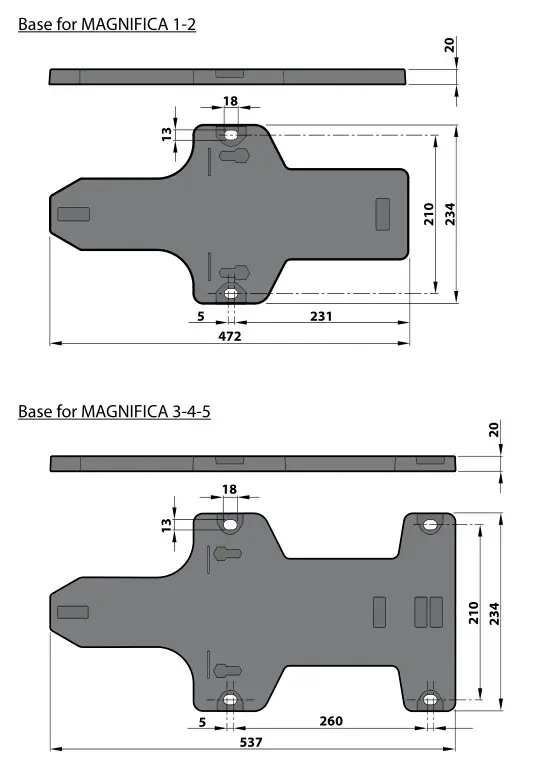

BASE (mm)

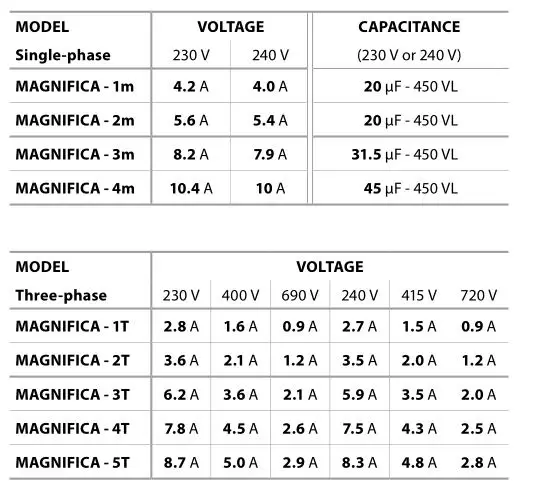

ABSORPTION
