Sycamoreled Sy9047 Tunable Led Bathroom Mirror Instruction Manual

Installation instructions :
SY9047—Tunable LED Bathroom Mirror with Demister
Instruction Manual

Thank you for purchasing this SycamoreLED.com product.
Please make sure instructions are followed carefully prior to and during installation and the product is not altered, otherwise, a warranty may not be valid. For technical support or warranty information please visit www.sycamoreLED.com, or call our dedicated technical helpline at +44 (0) 113 2866686.

IMPORTANT—Please read prior to installation

1. Please read these instructions carefully before commencing any work
2. Please retain these instructions for future reference
3. This unit must be installed by a qualified electrician in accordance with the IEE wiring regulations and building regulations
4. To prevent electrocution switch the power off at the mains supply before installing or maintaining this fitting
5. Ensure others cannot restore the electrical supply without your knowledge

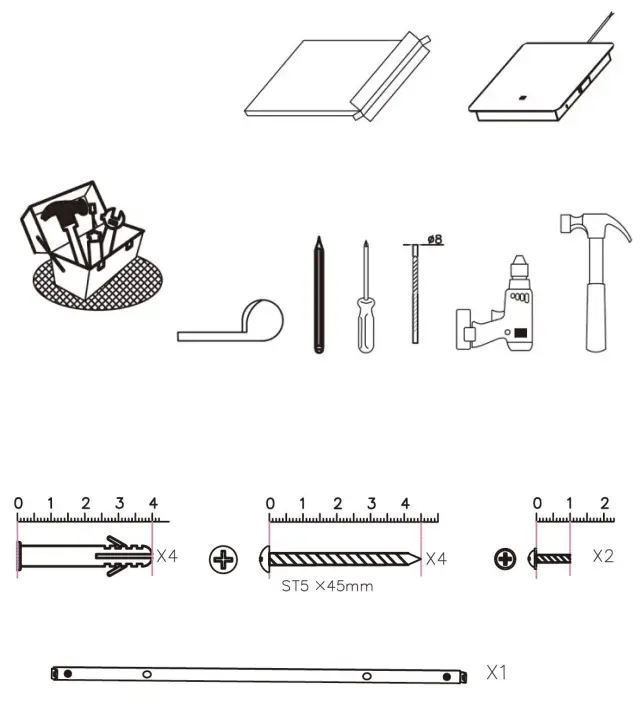

CONTENTS & TOOLS REQUIRED

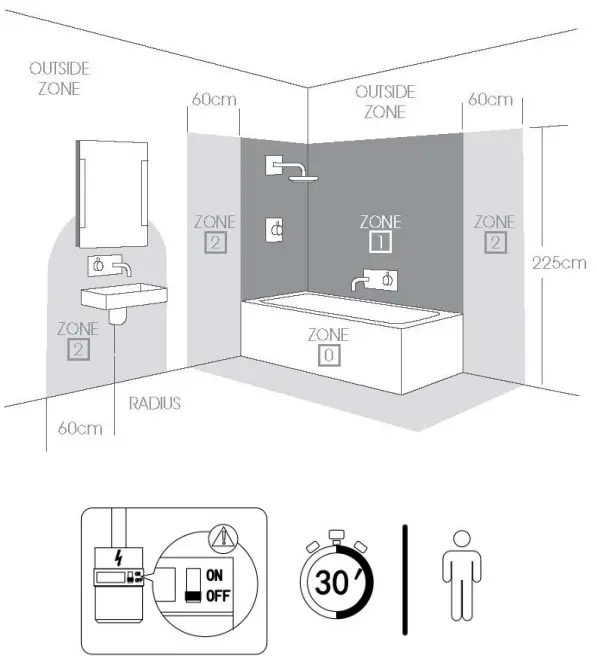

BATHROOM REGULATIONS

This product is IP44 rated and is suitable for installation in Zone 2 & Outside Zones

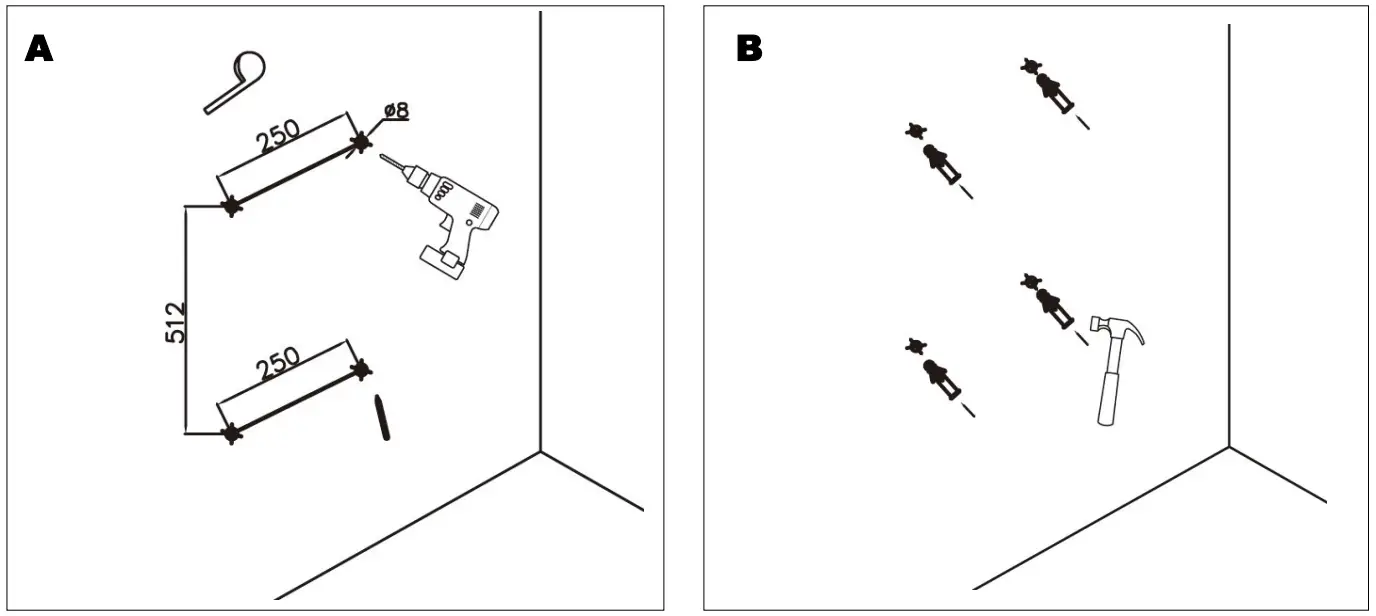

INSTALLATION INSTRUCTIONS

INSTALLATION INSTRUCTIONS (CONT)

Colour Temperature (CCT) Change and Dimming
To select the preferred CCT, press the button in the front of the mirror to turn the light on/off until the correct CCT is achieved.
(2700K/4000K/6500K)
The mirror will remember the chosen CCT the next time the mirror is switched on. (as long as the setting was on longer than 8 seconds when last on).
To dim the light, hold down the button until the desired brightness is achieved.

Demister Function
Touch the button on the front of the mirror to turn the demister on/off.
Demister will switch off automatically after 30 minutes.

Shaver Socket
Rated voltage:220-250V,50-60Hz
Rated current:10A-16A
The maximum wattage for the shaver socket is 19.2W.

CARE IN USE

• Please note this fitting has nonreplaceable parts
• Always switch off or disconnect from the mains when cleaning the product.
• We recommend cleaning with a soft dry cloth. Do not use scourers, abrasives, or chemical cleaners.
• Do not allow moisture to come into contact with electrical parts
• This luminaire should not be disposed of with normal household rubbish. When a replacement is purchased, this luminaire should be returned to the retailer to safely dispose of (WEEE Directive effective July 2006—Waste from Electrical & Electronic Equipment)

This product contains a light source of energy efficiency class Fhttps://tinyurl.com/y5vaumpd
SycamoreLED.com
LS26 8XT
