QN50Q80BAFXZA Class QLED 4K Smart TV
Instruction Manual

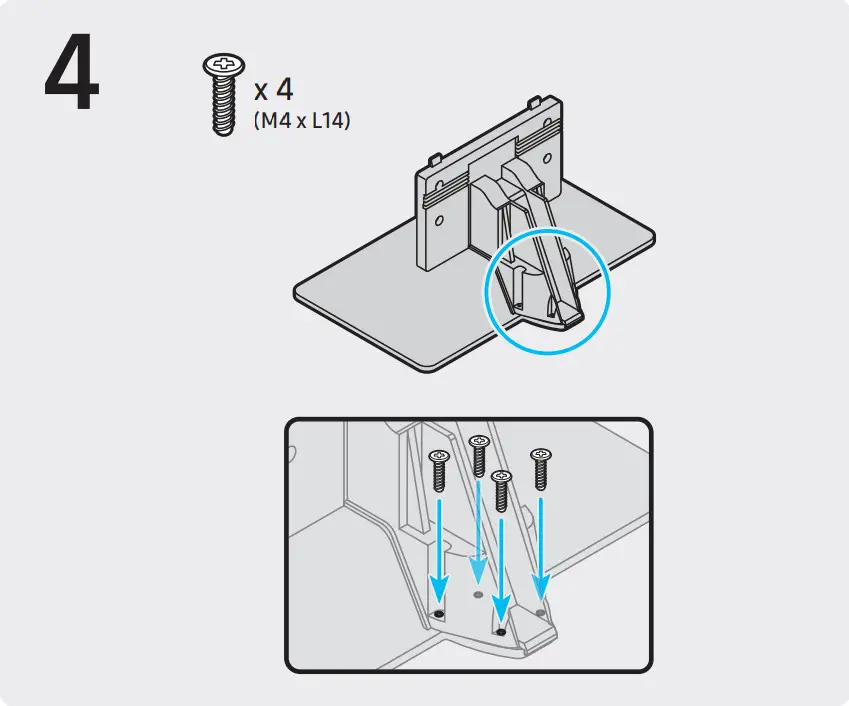

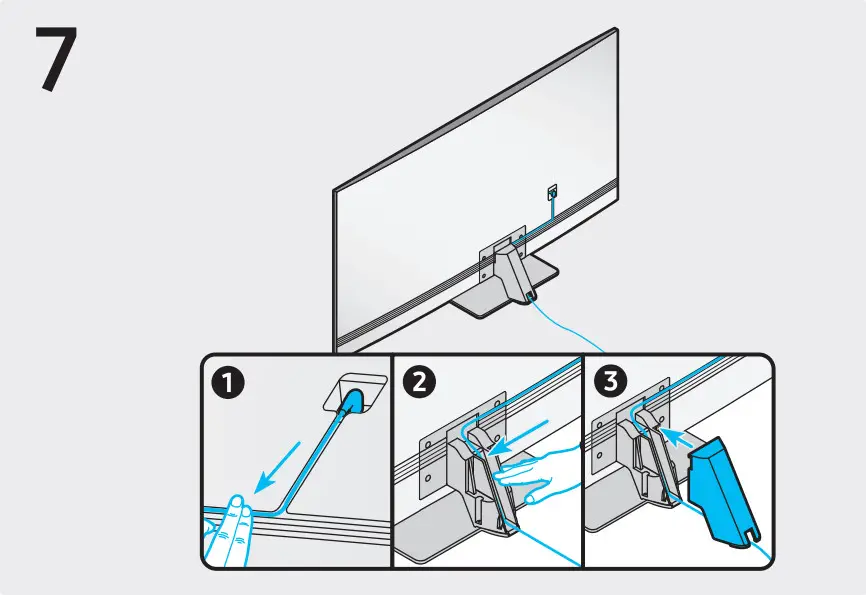

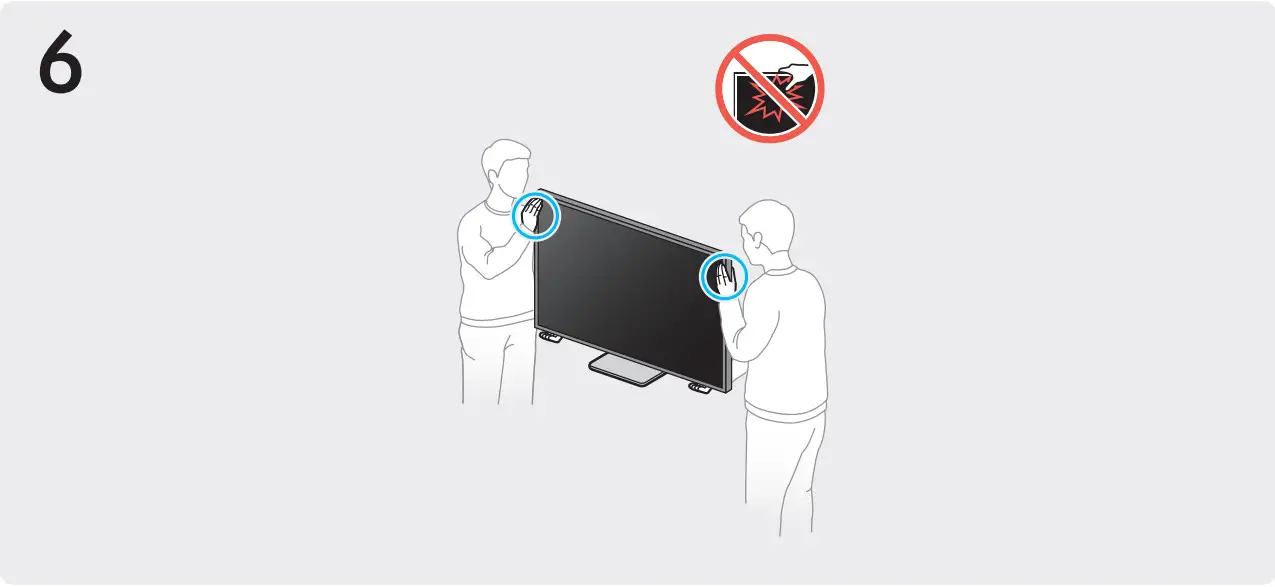

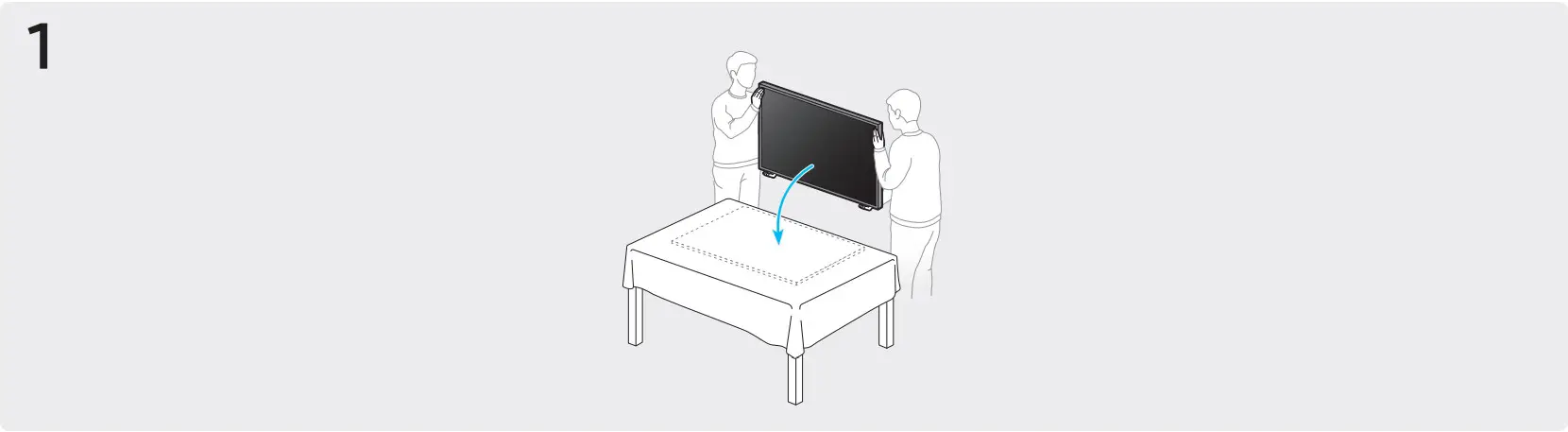

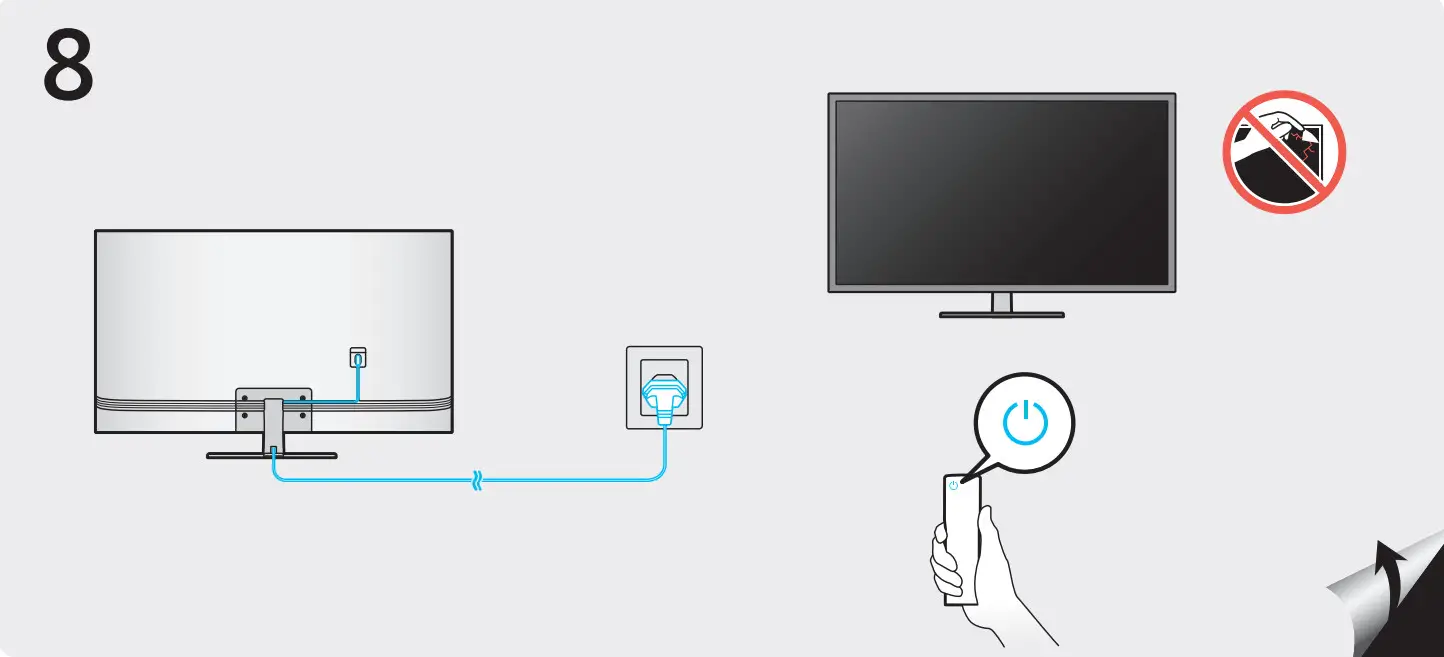

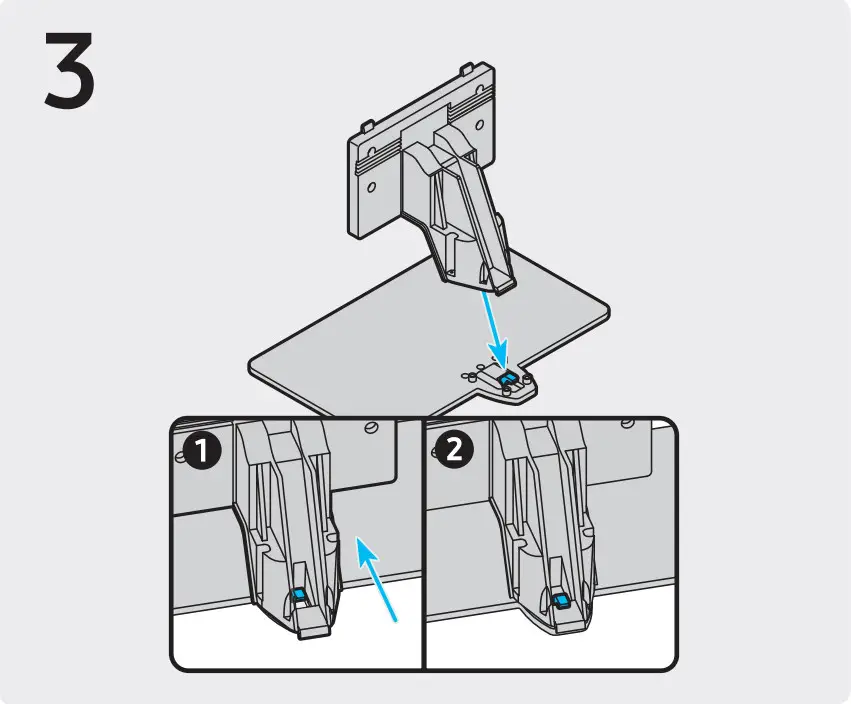

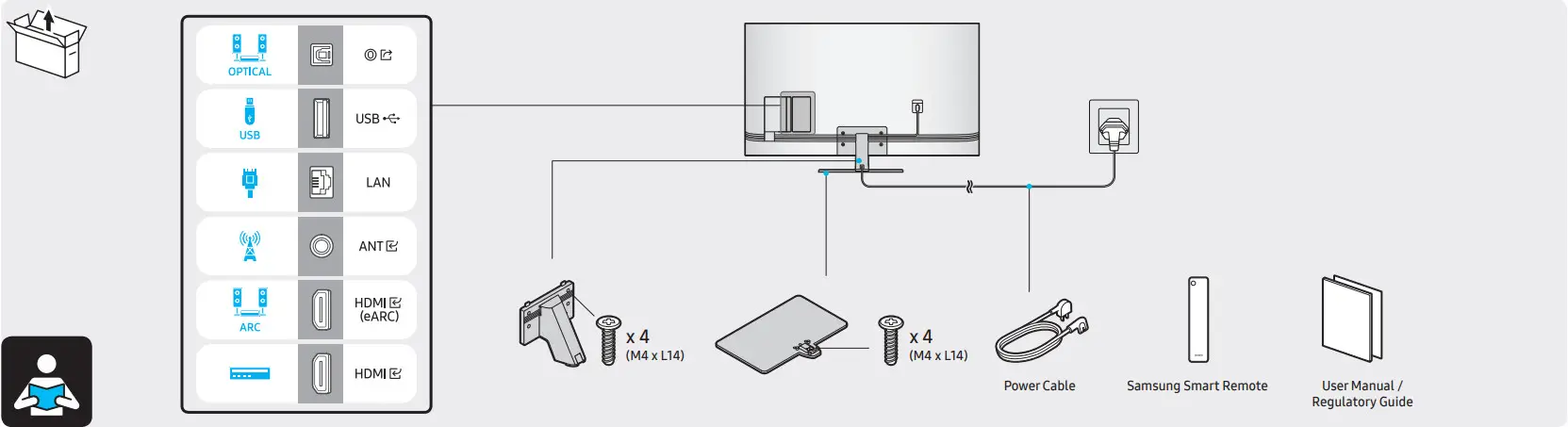

Quick Setup Guide
(Unpacking and Installation Guide)
 BN68-14206A |  |  |  BN68-14206A |
Scan this QR code with your smartphone to see helpful videos.
 | |
 |  |
 |  |
 |  |
 | |

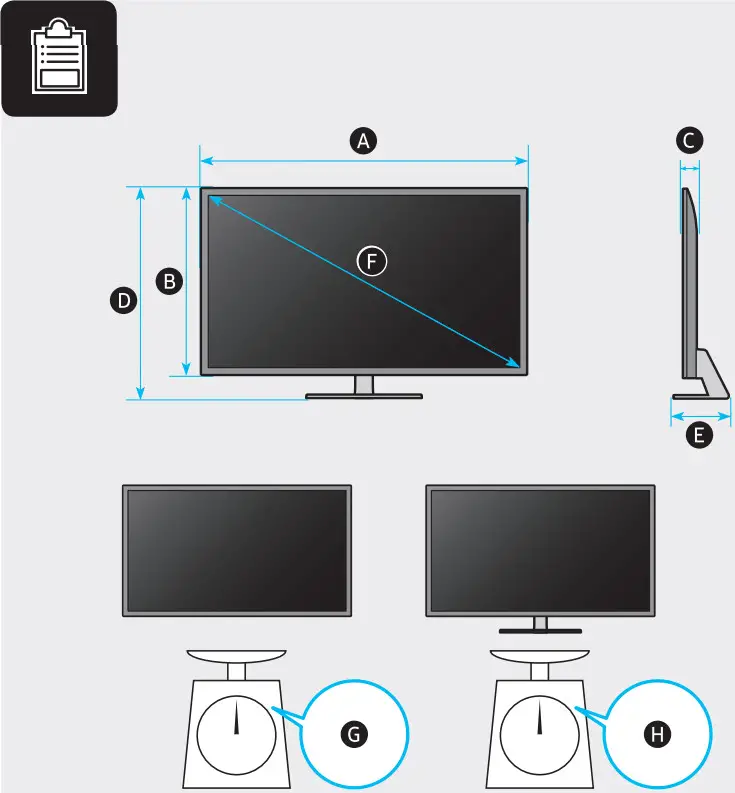

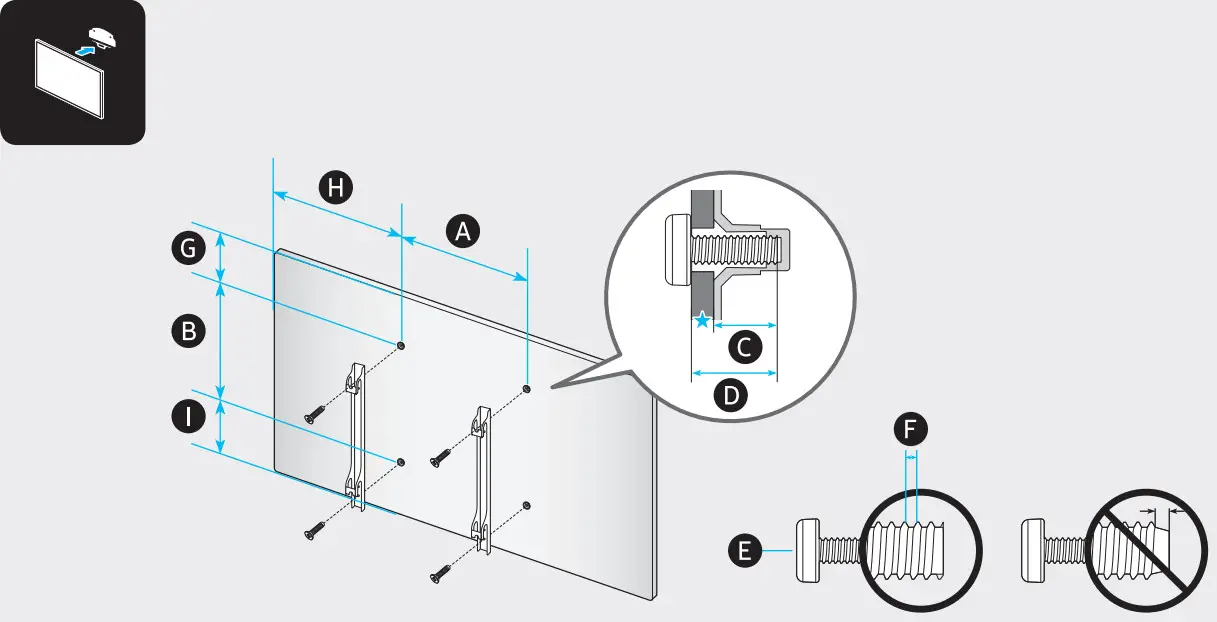

A | B | C | D | E | F | G | H | |
| QN50Q8*B | 43.9 inches (1114.2 mm) | 25.4 inches (644.6 mm) | 2.1 inches (53.9 mm) | 28.5 inches (723.0 mm) | 9.4 inches (239.8 mm) | 49.5 inches | 30.2 lbs (13.7 kg) | 39.9 lbs (18.1 kg) |
| QN55Q8*B | 48.3 inches (1227.6 mm) | 27.8 inches (706.7 mm) | 2.2 inches (54.7 mm) | 30.8 inches (783.4 mm) | 10.1 inches (255.8 mm) | 54.6 inches | 39.5 lbs (17.9 kg) | 46.3 lbs (21.0 kg) |
| QN65Q8*B | 56.9 inches (1446.5 mm) | 32.7 inches (829.8 mm) | 2.2 inches (54.7 mm) | 35.7 inches (905.7 mm) | 11.4 inches (289.1 mm) | 64.5 inches | 53.1 lbs (24.1 kg) | 61.3 lbs (27.8 kg) |
*: 0~9, A~Z
| VESA A x B (mm) | C (mm) | D | E x 4 | F(mm) | G(inches) | H (inches) | I(inches) | |
| QN50Q8*B | 200 x 200 | 26-28 | C + | M8 | 1.25 | 5.6 | 17.9 | 11.7 |
| QN55Q8*B | 8.1 | 20.2 | 11.5 | |||||
| QN65Q8*B | 400 x 300 | 8.7 | 20.5 | 11.8 |
: Wall-Mount Bracket
