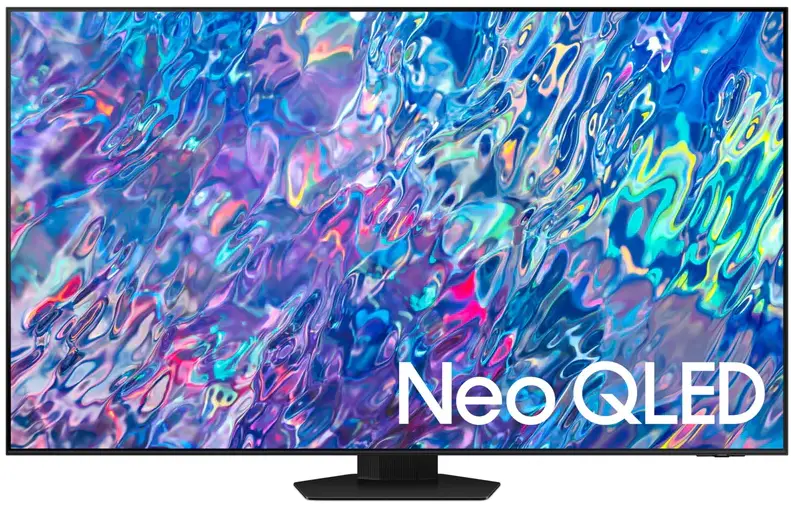

SAMSUNG QN85B 4K Ultra HD Neo QLED TV Instruction Manual
Introduction

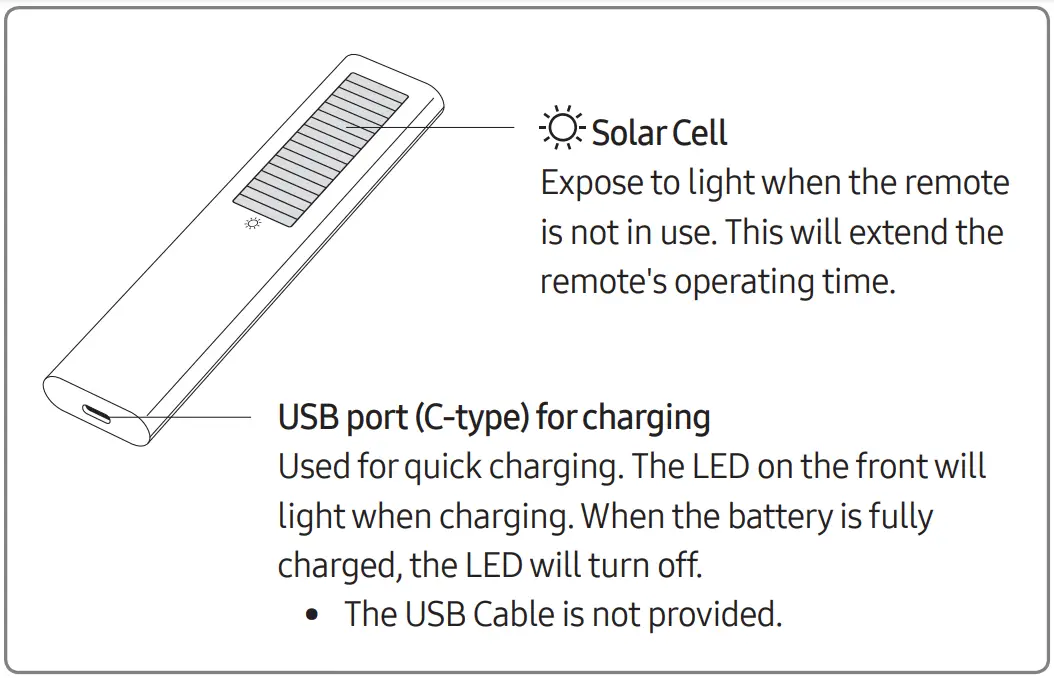

About the Samsung Solar Cell Remote (Samsung Smart Remote)
Function
Fire or explosion may occur, resulting in damage to the remote control or personal injury.
- Do not apply shock to the remote control.
- Be careful not to let foreign substances such as metal, liquid, or dust come in contact with the charging terminal of the remote control.
- When the remote control is damaged or you smell smoke or burning fumes, immediately stop operation and then repair it at the Samsung service center.
- Do not arbitrarily disassemble the remote control.
- Be careful not to let infants or pets suck or bite the remote control.
Fire or explosion may occur, resulting in damage to the remote control or personal injury

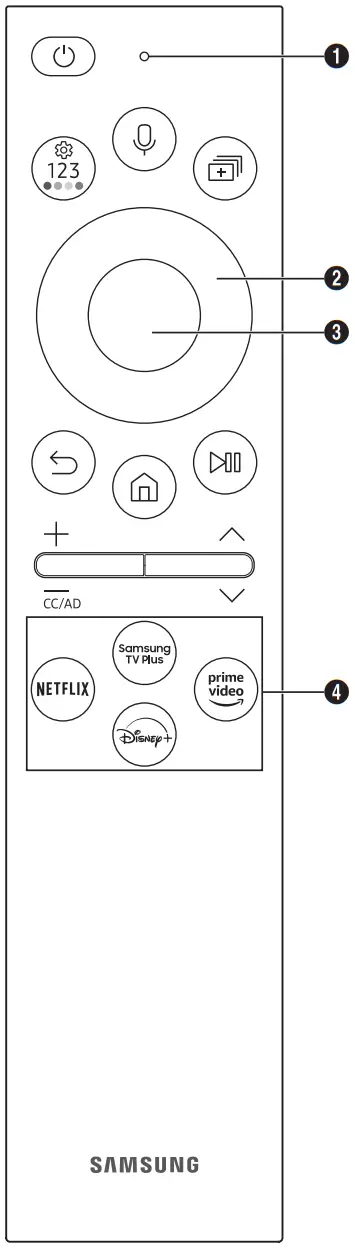

Description
| Button | Description |
 (Power) | Press to turn the TV on or off. For The Frame model, When watching TV, press to switch to Art mode. In Art mode, press to switch to the Media Home. Press and hold to turn off the TV completely. |
 MIC / LED | Used as MIC when using voice recognition with the remote control.
|
 (Voice Assistant) | Runs Voice Assistant. Press and hold the button, say a command, and then release the button to run Voice Assistant.
|
 (Settings – Number – Color button) | Each time you press this button, Settings menu / virtual numeric pad / Option pad with Color buttons are displayed alternately.
|
 (Multi View) | Press the button to directly enter the Multi View function. |
 Directional button (up, down, left, right) | Use to navigate the menu or move the focus to highlight items on the Home Screen. |
 Select | Selects or runs a focused item. When pressed while you are watching a broadcast program, detailed program information appears. |
 (Return) | Press to return to the previous menu. When pressed for1 second or more, the running function is terminated. When pressed while you are watching a program, the previous channel appears. |
 (Smart Hub) | Press to switch to the Media Home. From the Ambient Mode screen, press to switch to the Ambient Mode Home. For The Frame model, in Art mode, press to switch to the Art Home. |
 (Play/pause) | When pressed, the playback controls appear. Using these controls, you can control the media content that is playing. To use Game Bar, press and hold the button in Game Mode.
|
 (Volume) | Move the button up or down to adjust the volume. To mute the sound, press the button. When pressed for 2 seconds or more, the Accessibility Shortcuts appears. |
 (Channel) | Move the button up or down to change the channel. To see the Guide screen, press the button. When pressed for1 second or more, the Channel List screen appears. Press and hold the button up or down to quickly change the channel. |
 Launch app button | Launch the app indicated by the button. • Available apps may differ depending on the geographical area or contents provider. |
 (Pairing) | If the Samsung Smart Remote does not pair to the TV automatically, point it at the front of the TV, and then press and hold the buttons simultaneously for 3 seconds or more. |
Use the Samsung Smart Remote less than 20 feet (6 m) from the TV.
The usable distance may vary with the wireless environmental conditions.
- The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area.
- The Universal Remote function operates normally only when you use the Samsung Smart Remote that comes with the TV.
- It is recommended to use an original Samsung charger. Otherwise, it may cause performance degradation or failure of the product.
In this case, the warranty service is not applicable. - When the remote control does not work due to low battery, charge it by using the USB-C type port.
