Tap Bce-22 Double Bass Pickup Owner's Manual

Double Bass Pickup
Owner’s Manual

Model: BCE-22

BCE-22 Double Bass Pickup

TAP double sensors
is a completely special system for Double Bass.

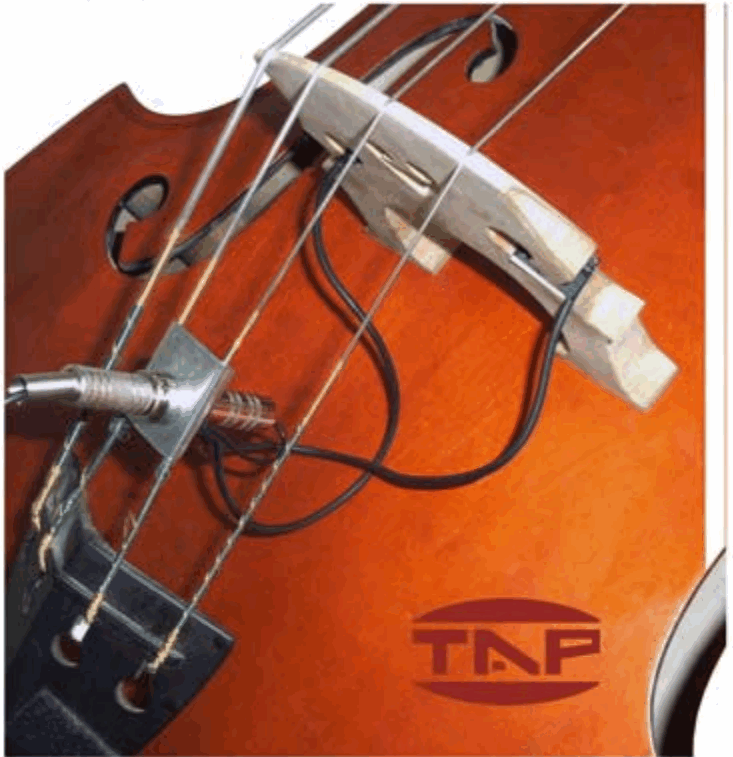

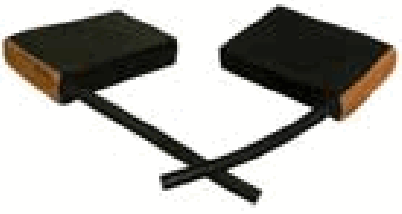

The transducers piezo-elements is embedded in a piece of rubber and wedged under the bridge wings. The sensors are positioned opposite each other so that the vibrations  from the strings and the body of the instrument can be captured accurately.
Comes with 1/4 stereo jack.
Plug the stereo plug jack in the Bass holder and then the mono plug jacks in two channels of the console. Different sounds can be achieved by control selections of console.  It is not necessary to use a pre-amp.

INSTALLATION

1. Fit Sensors:

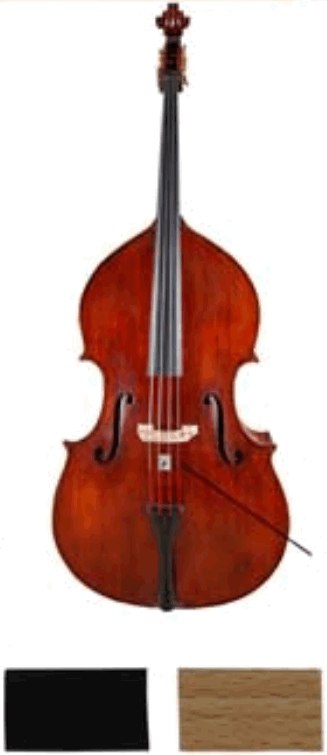

   For the best sound output the sensors need to fit tightly. If the sensors are too loose an rubber or a wood gasket foil is supplied to fix the sensors.
2. Fit Jack:
   A special attachment clamp holds the connection jack -6mm (%).
   The clamp it can be mounted at the A and D strings between the string-holder and bridge.
