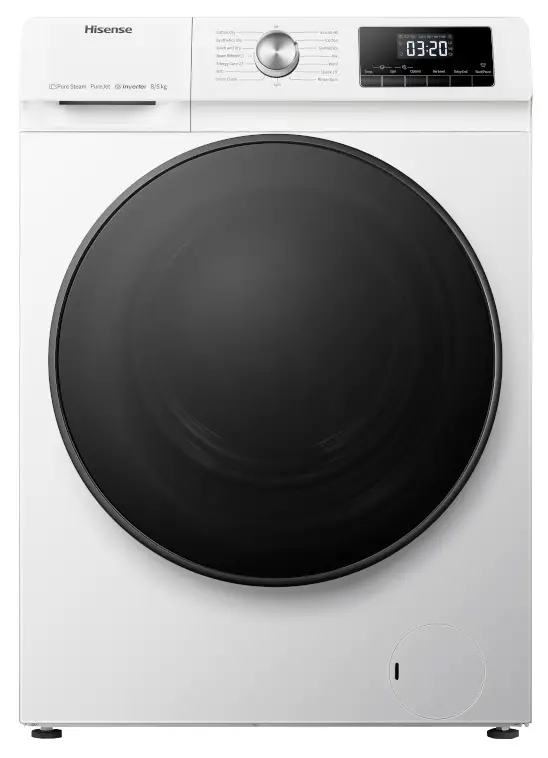

Hisense WDQA9014EVJM Washing Machine with Dryer User Manual

This washing machine is equipped with automatic safety functions which detect and diagnose at an early stage and react appropriately

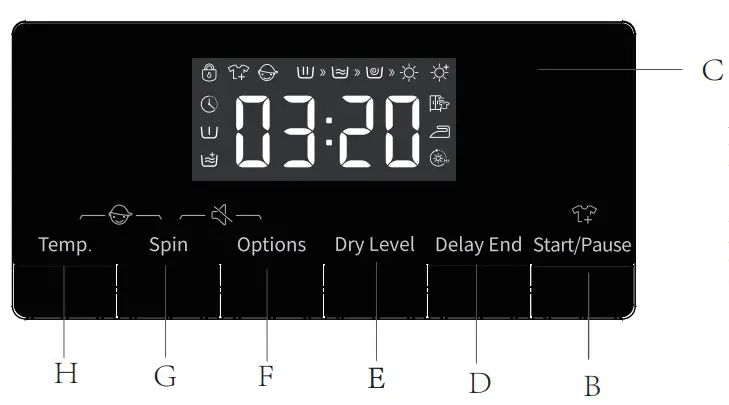

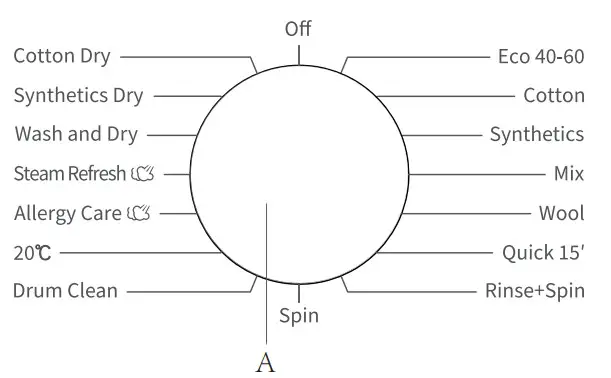

A. Program selector
B. “Start/Pause” button
C. Program and function status display window
D. “Delay End” button
E. “Dry level” button
F. “Options” button
G. “Spin” button
H. “Temp.” button

Program

Care Label

Material / Level of Soiling

Functions

Max. Wash Load kg

Max. spin speed rpm

Detergent Compartment

Wash Program Functions

Dry Level

W Wash D Dry WD Wash and Dry S Spin SD Spin and Dry

Prewash

Mhain was

Softener

Mute

Child Lock

Delay End

Spin

Temp.

Dry

Prewash

Extra rinse

Cupboard

Iron

Extra Dry

Time Dry

Cotton–,20ºC, 30ºC, 40ºC,60ºC, 90ºC

Heavily and moderately soiled cotton, or linen. For very heavily soiled items select the “Prewash” function.

W

9

10

1400

Yes

WD

6

1400

Yes

D

–,20ºC, 30ºC,40ºC, 60ºC

W

9

10

1400

Yes

WD

6

6

1400

Yes

D

Wool–,20ºC,30ºC,40ºC

Machine washable wool. (Refer to the washing label attached to the clothing).

W

2

2

600

Yes

Quick 15′–,20ºC,30ºC,40ºC

Cotton, mixed fabrics. Items worn for a short time or newly bought.

W

1

1

800

Yes

Mix–,20ºC,30ºC,40ºC

Mixed loads of moderately soiled cotton and synthetic fabrics.

W

5

5

1400

Yes

WD

5

5

1400

Yes

D

Eco40-60

Normally soiled cotton laundry.

W

9

10

1400

Yes

WD

6

6

1400

Yes

D

Rinse+Spin

This program is defaulted to two rinses and spin.

W

10

1400

WD

6

6

1400

D

Spin

Select the length, and speed, of the spin manually.

S

10

1400

SD

6

6

1400

D

Cotton Dry

The wet cotton & linen clothes can be dried after being spun.

D

6

6

/

D

Synthetics Dry

The wet chemical fiber clothes can be dried after being spun.

D

5

5

/

D

Steam Refresh

It is suitable for removing the peculiar smell (such as, the smell of smoke/hot pot/barbecue, etc.) on the clothes.

D

2

2

/

D

Wash and Dry

For cleaning normally soiled cotton items which are declared to be washable at40 °C or 60 °C, together in the same cycle, and to dry them in such a way that it can be immediately stored in a cupboard. This cycle is used to assess the compliance with the EU Ecodesign legislation for wash and dry.

WD

6

6

1400

Yes

D

20℃

This program is suitable for cotton clothes with light stains,energy saving.

W

9

10

1400

Yes

WD

6

6

1400

Yes

D

Allergy Care60ºC, 90ºC

Program to effectively extinguish bacteria in textiles. It is appropriate for clothes of babies who are sensitive to clothes.

W

4

4

1400

Yes

WD

4

4

1400

Yes

D

Drum Clean90ºC

Program to remove dirt and bacterial residue that can breed in the machine after it has been used for a period, especially when low temperature washes are used regularly.

WD

0

0

800

D

: Optional Functions
Yes : Detergent Required :
—: Cannot be selected
— : Temperature of unheated water
D:Default

Please select appropriate washing temperature according to instruction of care label attached to clothes, if not, clothes can be damaged

PARAMETER

Add Detergent, Close the Door and Set the Program

Load the clothes to be washed in the drum and close the door.
Add the detergent into the relevant compartments for the type of program you are going to select, Add detergent as described in Detergent and Additives section of User’s Operation Manual.

1. Turn on the power.
2. Spin program selection button to required program, “off” must be passed through if pointer’s initial position is not “off ”,start up.
3. Select washing temperature, spin speed by pressing “Temp”, “Spin” buttons.
4. Press “Options” button to select additional functions.
5. After starting the program, display window displays program length (hours: minutes) and additional function options in sequence.

Addition function selection

At standby state, press “Options” button to select additional function for current program. Select only one function for each press, and then corresponding icon flashes. After starting up, program cannot be changed.

Pre-wash

• Select the function to conduct pre-wash so as to enhance washing effects and better remove stains. This function is suitable for heavy dirt clothes.
• Before inflowing, laundry detergent/ washing powder can be added to pre-wash box, and washing powder must be added to main wash box.

Extra Rinse

After set the Function of ringsing adding the program runs the rinsing process once again before running the softening, and the total running time of the program increases accordingly.

Inlet water warning

If tap is not opened, or water pressure is over low,and display screen will prompt “F01” to give alarm.

Drainage warning

If the pipe is squeezed, drainage will not be smooth. In case of failing to completely drain for long time, display screen will prompt “F03” to give alarm.

Door Lock Icon

After the program starts the Door Lock icon will light up and the door will be locked.

• After completing program, door lock unlocks automatically.
  During pause, if door opening condition can be met halfway, the door lock will unlock and its indicator light will go out.
• When door lock indicator light flashes, door shall not be opened forcibly so as to avoid personal injury.

Delay End Function

Delay End function allows to run the machine at the consumers’ convenience, for example, at night when electricity is cheaper.

• Only under the standby mode, this button is valid for selecting the reservation time.
• After the reservation function is selected, the time will increase 1h when each time the reservation button is pressed. Before reservation, if the program time does not satisfy the integral multiple of 1h, it shall be completed by pressing the reservation key for the first time, and then the time increases 1h when each time the reservation button is pressed. If the reservation is selected, before the program runs, the current reservation can be canceled by turning the button to select other programs.
• The delay time must be longer than the wash program length as the delay time is the time program will finish. For example: if the selected program time is 02:28, the delay time selected must be between 03:00 and 24:00.
• When the reservation process is operated, the icon of ‘reservation time’ will be on. When the reservation process is finished, the icon of ‘reservation time’ will be off.
• If delay end is selected and start button is not pressed, delay can be canceled by rotating rotary knob before starting.
• To cancel the delay time during the delay program, you need turn the machine off by pressing “On/Off” button for 2 seconds.

Mute Function

When the machine is in the state of holding, pause or operation, press “Spin+ Options” buttons for 2 seconds, The display will show “bEEp oFF” . All the buzzing will be turned off except the alarms.

When the machine is in the mute state, press “Spin+ Options” buttons for 2 seconds until “bEEp on” appears. All the buzzing will be activated.

Child Lock

To strengthen the safety of children, this machine is equipped with Child Lock function.

When the programme starts, press “Temp. +Spin” button for 2 seconds.Then Child Lock is set up. Repeat the same operation, the Child Lock will be released.

• When the Child Lock is set, all function buttons will be shielded.
• When you turn the machine off by rotating the program .selection button“Off”,child lock is released
• After completing program, child lock will automatically unlock.

To Start the Program

After you have selected your options and placed detergent withinthe detergent dispenser, turn on the water tap and press the “Start / Pause” button. The screen will display the current program progression with icons from left to right. It also displays the remaining program time.

To Cancel the Program or Reselect the Options

1. Rotate the program to “Off” for 3 seconds to turn off the machine.
2. Select the new program and options.
3. Press “Start / Pause” button to turn on the machine without adding any extra detergent.

End of the Program

When programme finished its running, it will display “End”.
If no operation is taken in 2 minutes, the machine will turn off automatically

1. Rotate the program to “Off” to turn off the machine;
2. Close the tap;
3. Open the door and take the washed clothes out;
4. Slightly open the door to remove moisture in the pump.

Reload in Process

If you want to reload clothes in the process of washing, please press “Start/Pause” button.

• If reload icon light up, the door can be opened in the process, remaining time and the Door Lock icon in display will flash. Then the Door Lock icon will go out, and the door can be opened.
• If reload icon doesn’t light up, the Door Lock icon doesn’t flash, it indicates that current temperature is over 50℃ or you have passed the time for reloading in the process, namely no clothes allowed to load into the machine.

Automatic weighting

Washing machine displays “—-” after startup, indicating that it is weighing automatically. It will adjust program length (hours: minutes) automatically according to weight of clothes.

Dry

Press the “Dry Level” button to select the dry time and additional functions of dry. When the Iron , Cupboard and Extra Dry functions are selected, the corresponding icon will light up, and the remaining time of the program will be displayed on the display window. When the [Time Dry] function is selected, the icon of Time Dry will light up.
The washing machine can sense the weight of clothes to adjust the dry time automatically.

• Before drying, please confirm whether the clothes can be dried (please refer to the program table to confirm the type of clothes that can be dried).
• Before starting to dry, make sure that the tap is open and the cold water is in place.
• Before separately drying, please take the dehydrated clothes out from the drum, and put it into the drum after making it loose.
• When little clothes or light clothes are dried, for which, the dry time may be shorter than the setting time.
• If the hand-washing clothes requires for drying, before drying, please select the spin with high speed as possible according to the clothes types. It is recommended to select the “Spin + Dry Level” program.
• At the end of dry, the washing machine will run for a period of time according to a certain rhythm to loosen the clothes and reduce the wrinkle.
• The wall attachment of excessive and dehydrated cotton clothes may affect the dry effect. So it is recommended to dry the clothes after loosening it manually.
• The overload dry may affect the dry effect, while the excessive dry may cause the wrinkles of clothes. For the chemical fiber clothes, such as the shirts, etc., the iron mode shall be selected.
• If the clothes with different materials are dried together, the dry effect may be affected. So it is recommended to classify the clothes before drying.
• If the dry failure occurs, please refer to the contents of [Dry Fault] for processing.

Iron] function owns the effect that the clothes with little water can be ironed after being dried.
[Cupboard] function owns the effect that the clothes can be worn instantly after being dried.
[Extra Dry] function owns the effect that the clothes can be stored up after being dried.
[Time Dry] function refers to dry the clothes for a specified time.
Users press the “Dry Level” button to select any type of dry time with 6 types, including 30 minutes, 1 hour, 1.5 hours, 2 hours, 3 hours, and 4 hours. Please select a reasonable dry time. Otherwise, the clothes will not be dried fully if the dry time is too short.

Note: The wet clothes still dripping are not suitable for drying, which may cause the machine to alarm!

Dry timetable

The dry time of clothes of different weight in this table is estimated, and the actual dry time varies from the type and weight of clothes.

Rough weight of washes

Briefs (about 50g of cotton)

Long sleeved underwear (about 150g of cotton)

Bath towel (about 300g of cotton)

Socks (about 50g of cotton)

Skirt about 400g of chemical fiber)

Pajamas (set) (about 500g of cotton)

Towel (about 70g of cotton)

Shirt (about 200g of blending)

Sheet (about 500g of cotton)

Jean (about 800g of cotton)

Woolen sweater (about 400g of wool)

Jacket (about 800g of cotton)

Fabric care chart

Resistant material

Delicate fabric

Item can be washed at 95 °C

Item can be washed at 60 °C

Item can be washed at 40 °C

Item can be washed at 30 °C

Hand wash only

Dry clean only

Can be bleached in cold water

Do not bleach

Can be ironed at 100 °C max

Can be ironed at 150 °C max

Can be ironed at 200 °C max

Dry clean with aviation fuel, pure alcohol or R113 only

Do not iron

Require steam iron

Iron requires cloth laying

Do not wring dry or dewater

Do not dry clean

Dry flat

Can be hung to dry

Hang dry

Tumble dry, normal heat

Tumble dry, reduced heat

Do not tumble dry

Dry on clothes hanger

Dry clean with perchloride, lighter fuel, pure alcohol or R113 only

Non washable • dry/non-dry clothes

Clothes that can neither be washed nor dried

Leather and fur products (Deformation may be caused)

Rayon and its blended products (Discoloration or deformation may be caused)

Large thick rubber cushions with carbamate on the back (Damage or fault may be caused)

Hats with hard material (It will damage the washing machine and cause faults)

Cushions, pillows, articles with cotton wadding, foam and other sponge materials, carpet cover (Damage or fault may be caused)

Others:
Wrinkled or embossed clothes; crepe fabrics;
Easily deformed clothes (suits, jackets, ties and dresses, etc.);
Easily fluffing clothes (velvet, velveteen).

Non-dry clothes

Any of clothes marked by graphic (Clothes may be damaged)

Woolen clothes (Shrinkage and fur loss may be caused)

Tights, stockings (Damage or deformation may be caused)

Sizing clothes

Cushions or clothes with furs (Damage or fault may be caused)

Quilt (Damage or fault may be caused)

Clothes with lace and embroidery, new synthetic fiber (very fine fiber) (Deformation may be caused)

Silk

If it is used to dry cushions and clothes with furs, it may lead to drain pipe blockage.

Note！

• Non washable dry/non-dry clothes include but not limited to the above clothes.
• The wet clothes still dripping are not suitable for drying, which may cause the machine to alarm!

Dry fault

Programme Instructions

1. The eco 40-60 programme is able to clean normally soiled cotton laundry declared to be washable about 40°C to 60°C, together in the same cycle,and that this programme is used to assess the compliance with the EU ecodesign legislation.
2. The power consumption of the off-mode is 0.49W,and the left-on mode is 0.49W.
3. The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration. 4. Loading the household washing machine or the household washer-dryer up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.
4. Correct use of detergent, softeners and other additives. Do not apply excessive detergent. This may affect the washing results adversely.
5. Periodic cleaning, including optimal frequency, and limescale prevention and procedure.
6. Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and theglower the remainin moisture content.
7. The product information and the energy consumption label, the product registration information can be obtained by scanning the QR code.
8. The information of standard programmes
9. The wash and dry cycle is able to clean normally soiled cotton laundry declared to be washable at 40 °C or 60 °C, together in the same cycle, and to dry it in such a way that it can be immediately stored in a cupboard, and that this programme is used to assess the compliance with the EU ecodesign legislation.

WDQA9014EVJM / WDQA9014EVJMS /WDQA9014EVJMT / WDQA9014EVJMB

WDQA1014EVJM / WDQA1014EVJMS /WDQA1014EVJMT / WDQA1014EVJMB

The values given for programmes other than the eco 40-60 programme and the wash and dry cycle are indicative only.
