Scangrip Site Lite 80 Led Construction Floodlight Instruction Manual

Scangrip Site Lite 80 Led Construction Floodlight Instruction Manual

SCANGRIP SITE LITE 80 LED Construction Floodlight logo

SCANGRIP SITE LITE 80 LED Construction Floodlight

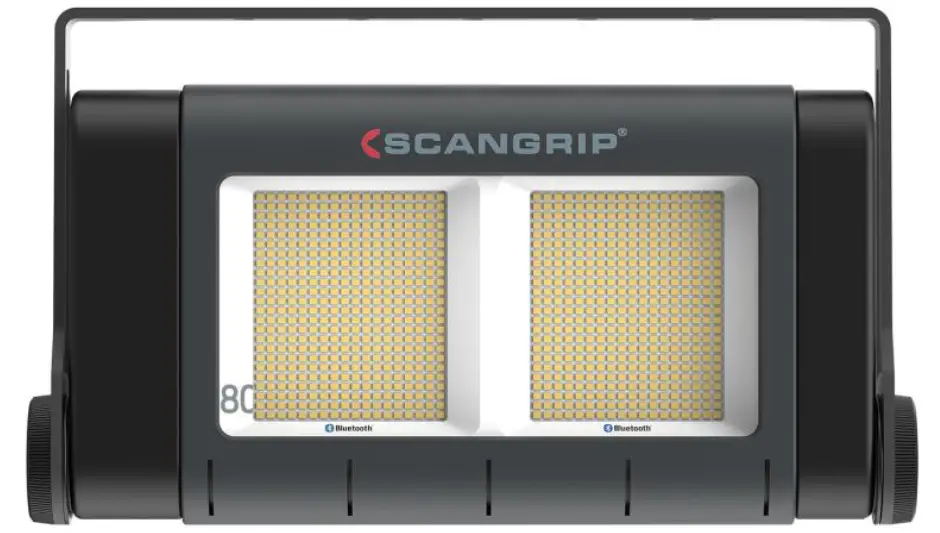

SCANGRIP SITE LITE 80 LED Construction Floodlight product

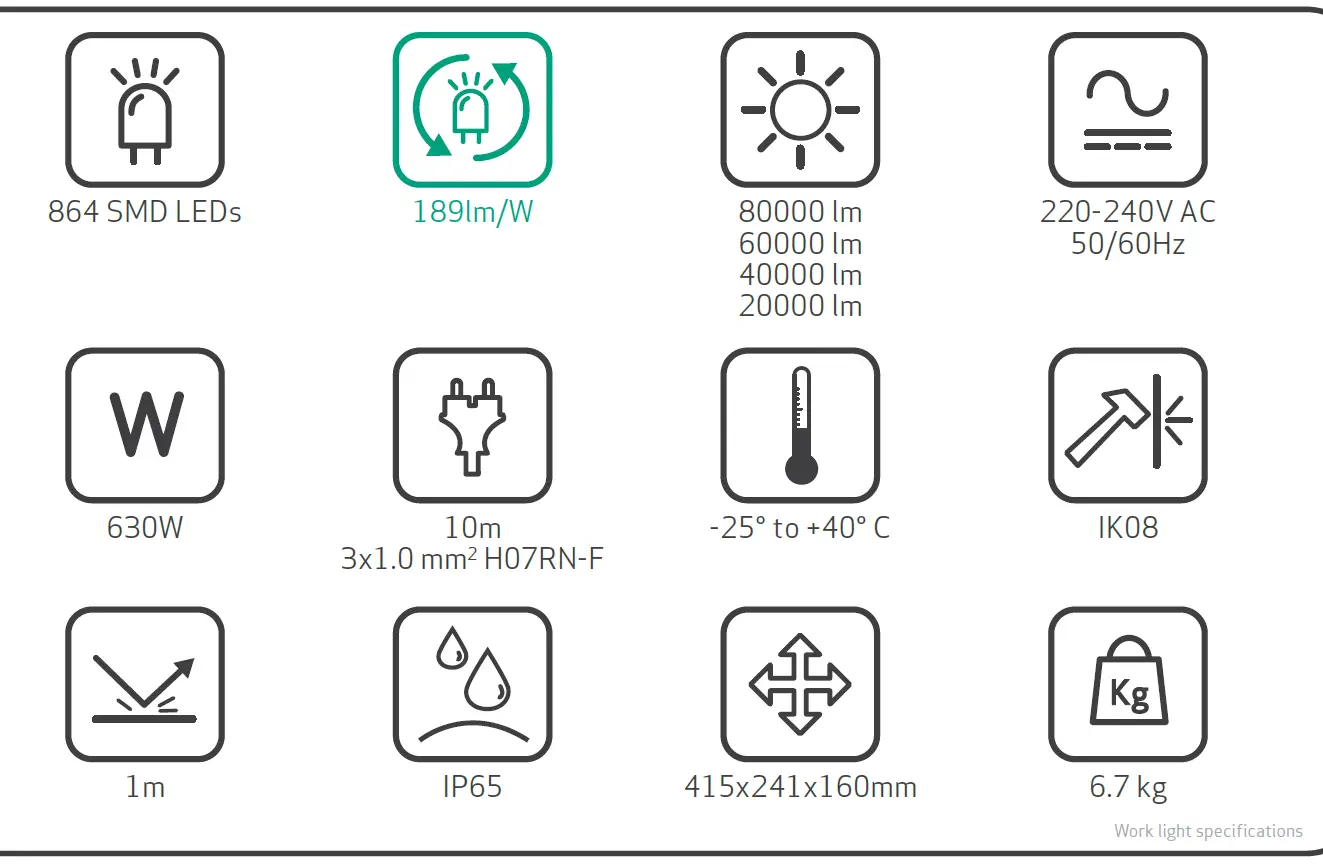

Specifications

SCANGRIP SITE LITE 80 LED Construction Floodlight 01

WARNING

  • Always respect applicable legislation for working with electrical equipment in order to reduce the risk af accidents
  • Avoid looking directly into the beam of light, as this will result in dazzling
  • Do not use the lamp near a naked flame
  • Protect the mains cable from oil, heat and sharp edges
  • The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced
  • Luminaire is only suitable for direct mounting on non-combustible surfaces.
  • The external flexible cable or cord of this luminaire cannot be replaced; if the cord is damaged, the luminaire shall be destroyed
  • Always use the bracket for best stability and support SCANGRIP SITE LITE 80 LED Construction Floodlight 02

Integrated Bluetooth light control

  • Turn lamp on/off or adjust lamp output
  • Lock the lamp by setting a PIN
  • Connect and control up to 4 lamps simultaneously in a group
  • Compliant with iOS 10.3 or higher / Android 5.0 or higher
  • Download from iTunes App Store / Google Play Store

WARNING- Risk of fire
Minimum distance from lighted objects 0.5 mSCANGRIP SITE LITE 80 LED Construction Floodlight 03
SCANGRIP SITE LITE 80 LED Construction Floodlight 04
