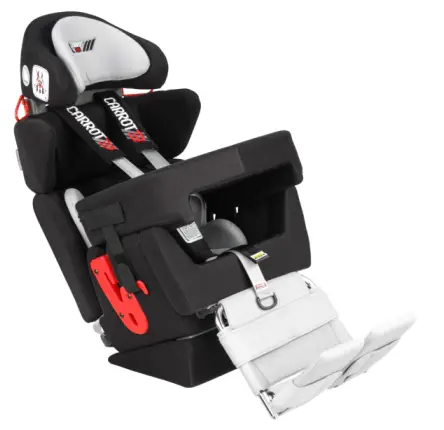

medifab Carrot 3000 Car Seat User
Client Details
Client/User Name
Date
NDIS/Funding

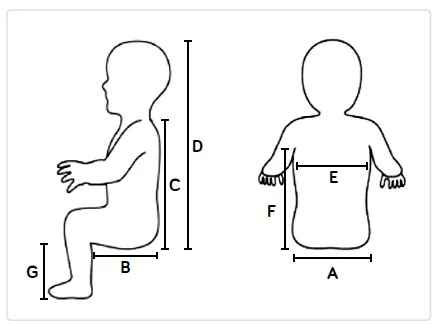

| User Measurements | |
| A Hip Width | |
| B Seat Depth | |
| C Seat to top of shoulder | |
| D Seat to top of head | |
| E Chest Width | |
| F Seat to Axilla | |
| G Leg length | |
Seat Specifications
| Age Range | User Weight Range | Seat Depth | Shoulder Height | Seat Weight | Testing Data |
|
3 – 15 years |
13.6 – 49kg |
25 – 40 cm |
32 – 47 cm 45 – 60 cm* |
8.7 kg |
Tested to ECE R44/04 |
when shoulder protector wings are added
Basic Packages
| – Carrot seat unit – 5-point harness – Headrest wings – Tee-pad – Free recline backrest |
4116-0010-259 |  |
4116-0000-259 |  |
Behavioural Packages
- Carrot seat unit
- 5-point harness
- Headrest wings
- Tee-pad
- Free recline backrest
| Small Package with Anti-Escape Buckle 4116-0010-026 |   | Large Package with Anti-Escape Buckle 4116-0000-026 |  |
| Small Package with Pen-Key Buckle 4116-0010-025 | | Large Package with Pen-Key Buckle 4116-0000-025 | |

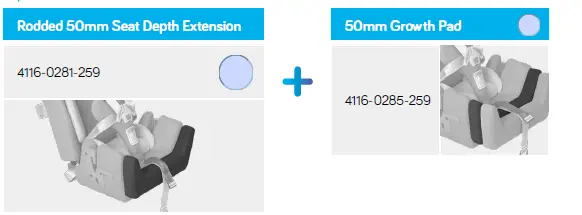

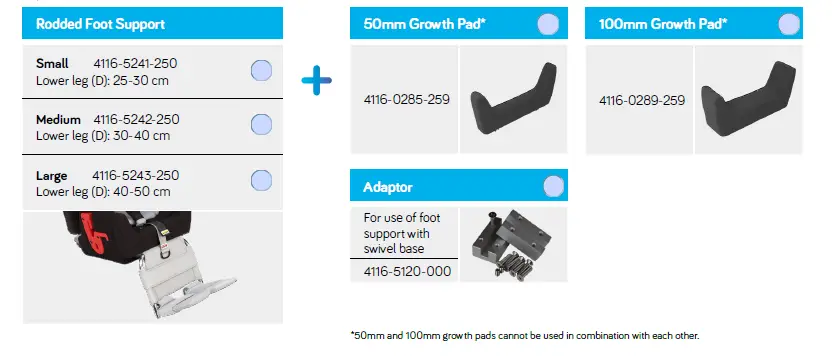

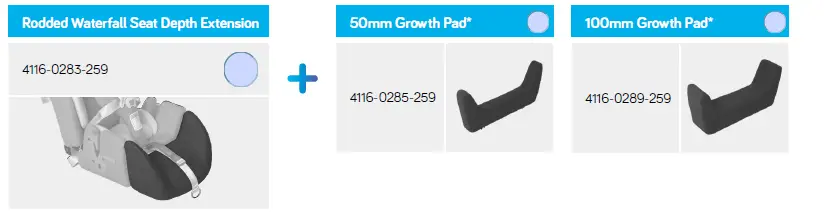

Seat Depth Growth
For growth, please select one of the following 3 rodded options, and associated extensions below, if required (Rodded components cannot be used in combination with each other)
Option 1
Option 2
Option 3

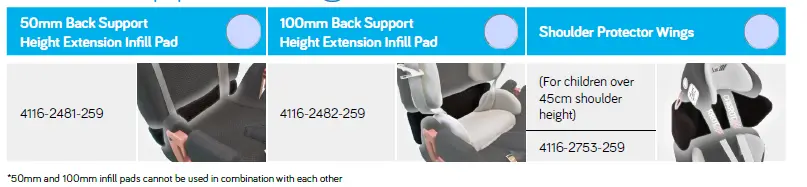

Back Support Height Growth
| 50mm Back Support Height Extension Infill Pad | 100mm Back Support Height Extension Infill Pad | Shoulder Protector Wings | |||
|
4116-2481-259 |
4116-2482-259 | (For children over 45cm shoulder height) | |||
| 4116-2753-259 | |||||
*50mm and 100mm infill pads cannot be used in combination with each other

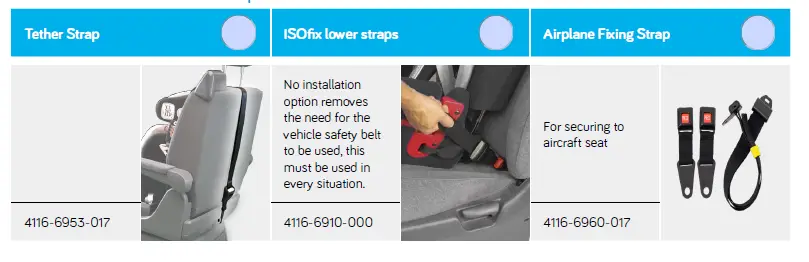

Installation Options
| Tether Strap | ISOfix lower straps | Airplane Fixing Strap | |||
| No installation option removes the need for the vehicle safety belt to be used, this must be used in every situation. |
For securing to aircraft seat | ||||
| 4116-6953-017 | 4116-6910-000 | 4116-6960-017 | |||

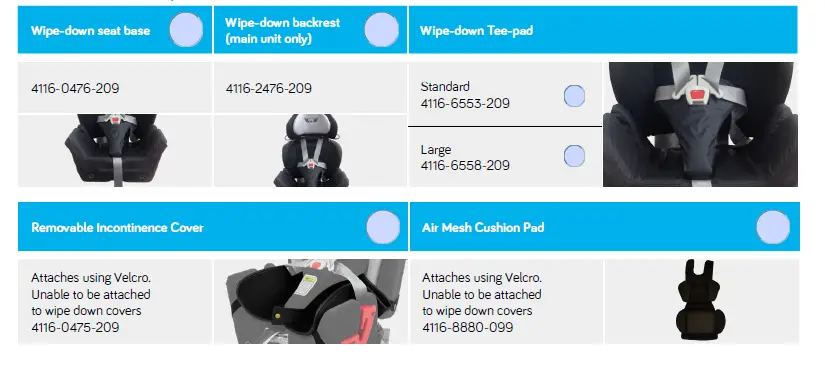

Cover Options
| 4116-0476-209 | 4116-2476-209 | Standard 4116-6553-209 | ||
| Large 4116-6558-209 |
- Attaches using Velcro.Unable to be attached to wipe down covers 4116-0475-209
- Attaches using Velcro. Unable to be attached to wipe down covers 4116-8880-099

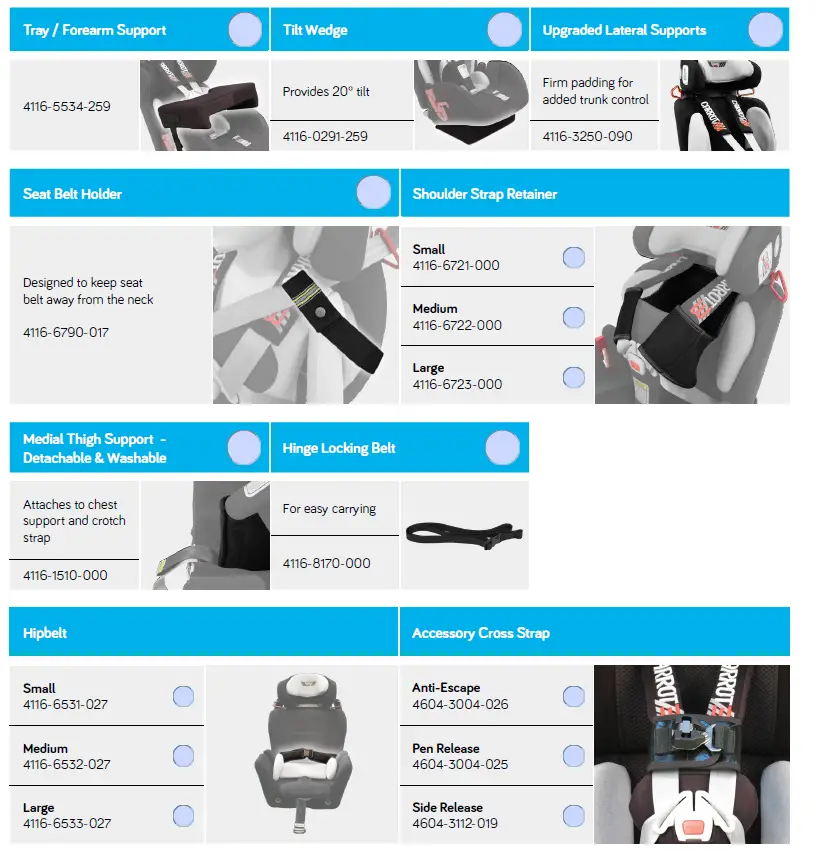

Accessories (continued)
Distributed by Medifab Ltd 32 Detroit Drive Rolleston 7675 New Zealand +64 3 307 9790 [email protected] www.medifab.com
