Installation Instructions for
Pohl Outdoor Wall
WALL
990W8_3170_-POH

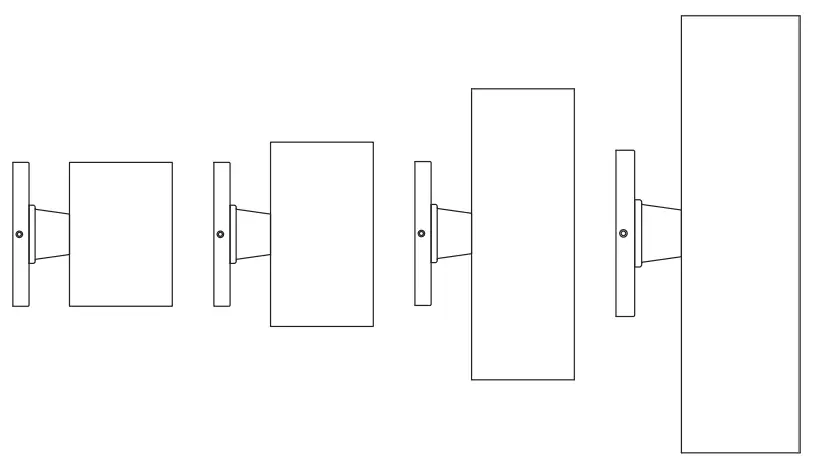

8531701, 8631702, 8731701, 8831702
1.0
CAUTION – RISK OF FIRE
This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
Use minimum 90°c supply conductors.
GENERAL PRODUCT INFORMATION:
These fixtures are intended to be installed utilizing NEC-compliant junction boxes.
This product is safety listed for wet locations.
The incandescent version may be dimmed with a standard incandescent dimmer. LED version may be dimmed with a LED dimmer. Consult the lamp manufacturer for additional information.
This instruction shows a typical installation.
SAVE THESE INSTRUCTIONS!
Install the Fixture
- Secure the mounting plate to the junction box.
- Connect the fixture to a suitable ground in accordance to local electrical codes.
- Connect the white fixture wire (square and/or rigid) to the neutral power line wire with a wire nut.
- Connect the black fixture wire (round and/or smooth) to the hot power line wire with a wire nut.
- Neatly place all the wires into the junction box, place the fixture base onto the mounting studs, and secure it in place using the fixture screws.
- Screw the lamp(s) into the socket(s). Refer to the label on the socket for Max Wattage Information.
- For Wet Locations, caulk around the base of the fixture with waterproof construction sealant.
- For Models 8631702 and 8831702 Only: Install the cover to the top of the fixture.
