KYINFLOSE DFQY-CS14 Corner Floor Lamp

Safety Instructions

1. This lamp is not waterproof. Avoid exposing it to splashing or dripping water.
2. The operating temperature should be within -25℃ to 85℃.
3. Do not allow children to assemble the lamp by themselves.
4. Avoid placing the lamp near heat sources.
5. Avoid placing the lamp near potentially dangerous sources.(e.g., candles, liquid-flled objects, etc.）

Product List

Installing Your Floor Light

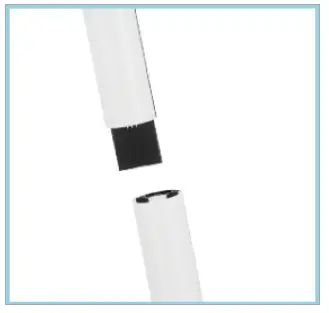

1. Connect three lamp bars.

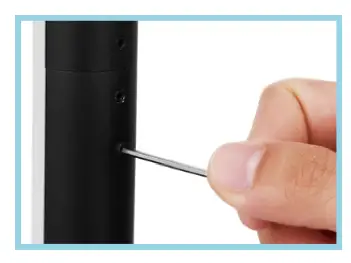

2. Reinforce the lamp bars with Allen Key and screws.
3. Rotate and fix the lamp bar according to the direction of the base.

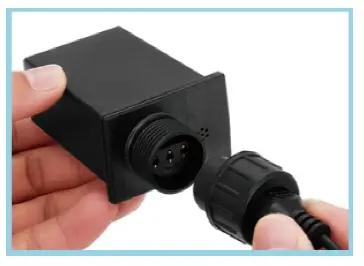

4. Connect the adapter and plug it in to test the lamp. Installation is successful if all 3 lamp bars are on.

Troubleshooting

Partial lamp bars are on/ The lamp is no reaction

1. The screws are installed too tightly, resulting in poor contact.
2. Try to change the color with the remote control.
3. Open CozyLife, Click “more”-“set number”-“84”-“confirm”.

CozyLife APP Download

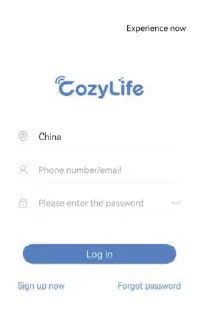

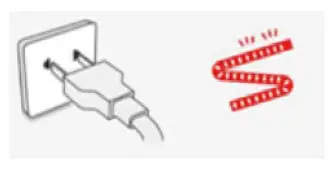

Register an account and choose your country. Connect your phone to WiFi ( Only 2.4Ghz available)/ open the data network/Turn on the phone’s Bluetooth. Turn on/off 3 times( on/off/on/off/on), The LED light flashes red, indicating that it has entered the state of network distribution. After successful networking, add the device.

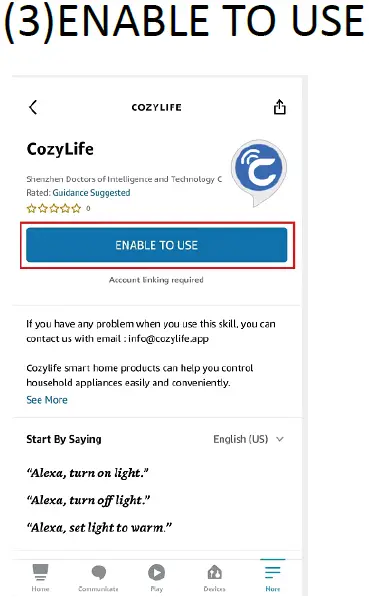

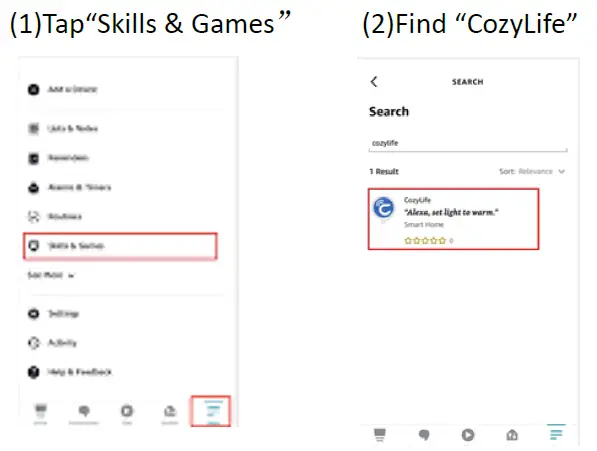

Connect to Alexa Firs

Open Amazon Alexa APP

Second: Binding Account

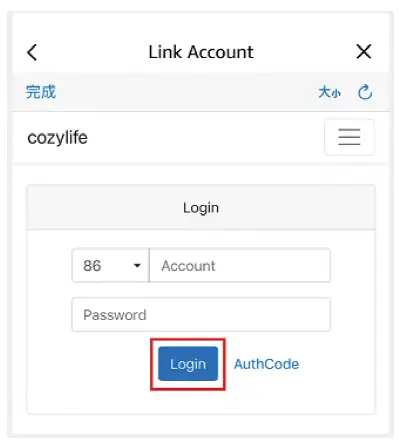

Enter your Cozylife account on the authorization page.

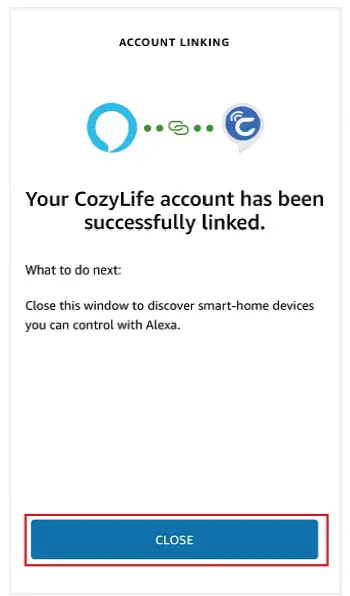

Link done.

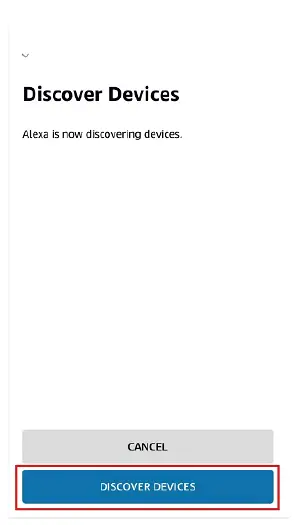

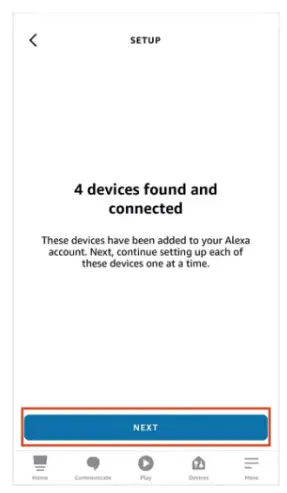

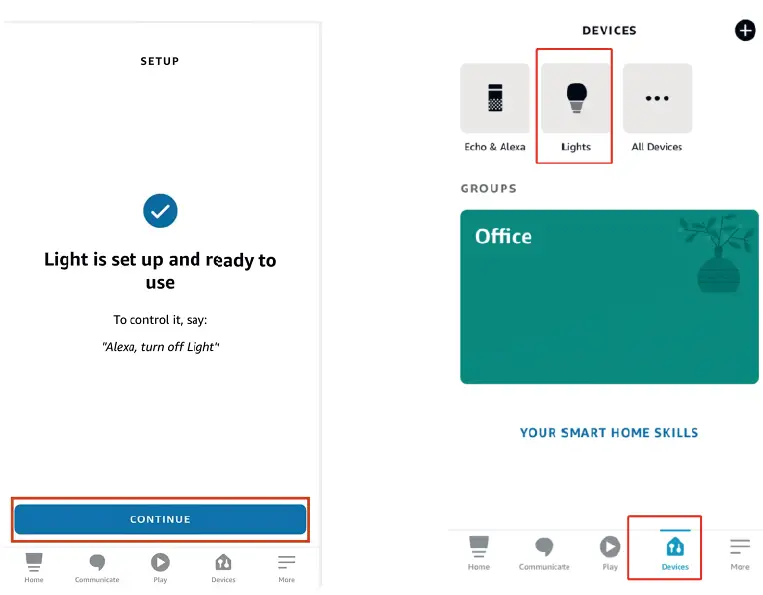

Discover devices Alexa app can find devices Third: Control Device
You can choose to configure the device.

Alexa Support

[Vioce Control]

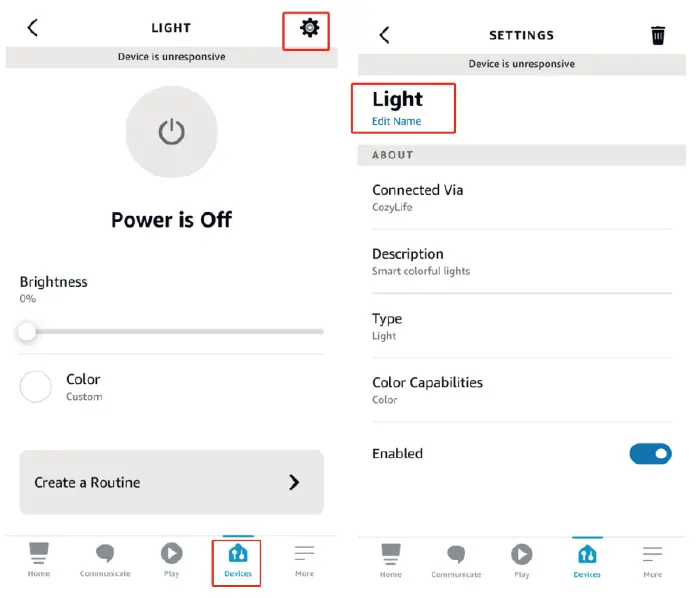

Click [Settings ] and make sure the [device name] is the same as your voice control name, otherwise, it will fail.
You can do short answer operations(Switch, Brightness, Color)：
“Alexa, turn on [device name]”
“Alexa, turn off [device name]”
“Alexa, [device name] change to red”
[Create a Routine]
Light turn off – “Alexa, good night”

Note

1. .Only support 2.4GHz, not 5GHz.
2. The distance between the device and the router should not be too far away, which will affect the Wi-Fi signal.
3. Make sure the Wi-Fi password is entered correctly, just English and Numbers.
4. If the device is offline and can’t be controlled check if the Wi-Fi is off, turn off some other connected devices, the router may be overloaded, update the application interface.
5. If you change the Wi-Fi password, please reconnect. When restoring factory settings, you must turn off the lamp for 10 seconds and then try again.

Remote Control Instructions

Product specifications

Model: DFQY-CS14
Lamp bead type: 5050RGB
Number of lamp beads: 84PCS (1.2M) Output power: 12W (1.2M)
Output voltage: AC85V-265V
Remote Control distance: within 15 meters Working temperature: -25℃~+85℃ Beam angle: 160°
Lightbar size: 1200mm*8mm(1.2M) Packing size: 45.5*13.8*6.7cm

Troubleshooting

• Partial lamp bars are on/ The lamp is no reaction
  1. The screws are installed too tightly, resulting in poor contact. 2.Try to change the color with the remote control.
  3.Open CozyLife, Click “more”-“set number”-“84”-“confirm”.
• The remote control cannot be used.
  Remove the plastic piece from the remote control.
• Which system of android or IOS does this app support?IOS≥V10.0, Android ≥V5.0(only for mobile phones, not for tablets and other devices), and Bluetooth≥V5.0 are required.

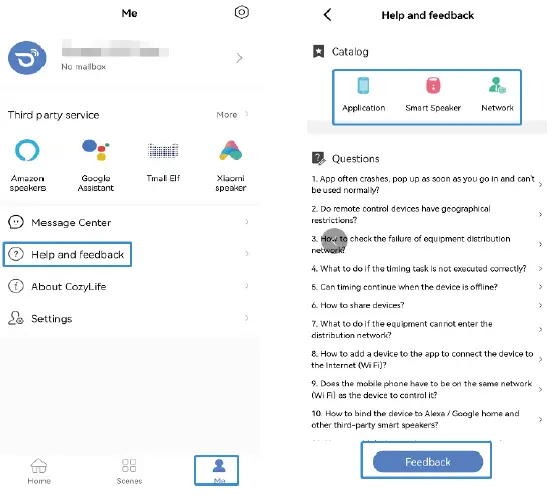

•  Issue problems in using the Cozylife App.
  Open Cozylife APP, tap [Help and feedback] – [Application] -[Smart Speaker] – [Network]. You also can tap [Feedback], put forward your suggestions and problems, so that we can upgrade the software and better serve our customers.

Warranty
The warranty period of this product is six months. During the warranty period, if it is not artficially damaged, we will replace it or refund it. Just contact us by Email or Facebook, we will be here to serve you. We try our best to ensure that your products are of excellent quality and meet the highest standards. You can expect every product to have outstanding quality and durability.
Important: You may be asked to provide proof of purchase, such as a screenshot of the order number or order details. If you can attach a video or photo to describe the problem,we would appreciate it.
